REAR AUTOMATIC MOUNTING PARTS (8 TONS)

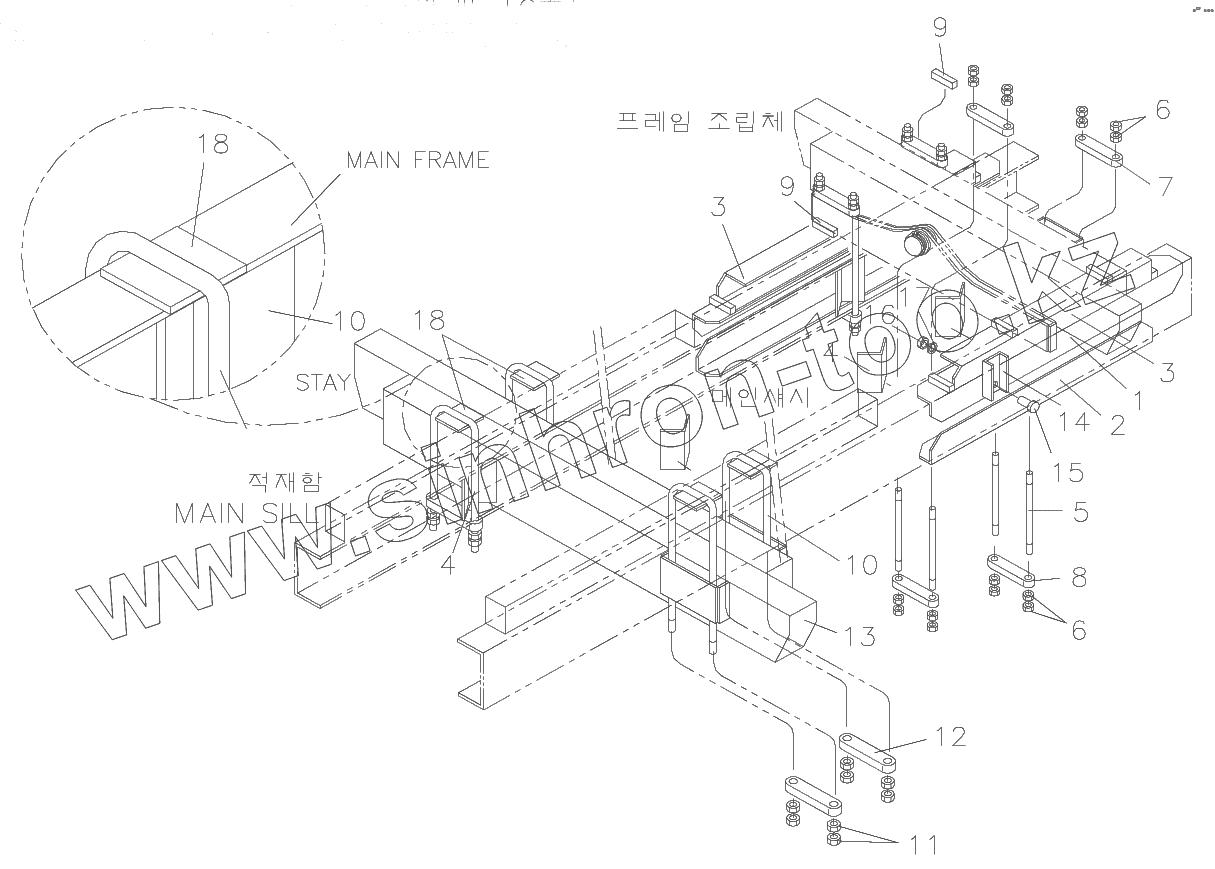

Каталог запасных частей к технике: Soosan SCS746L. REAR AUTOMATIC MOUNTING PARTS (8 TONS)
