5. POST WIRING (STD, TOP) (ADDED SEP 2009)

Каталог запасных частей к технике: Soosan SCS746L. POST WIRING (STD, TOP) (ADDED SEP 2009)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SCS746L (2010)

Схема > Не выбрано CRANE ASSEMBLY (REVISED DECEMBER 2008) CRANE ASSEMBLY (REVISED FEBRUARY 2009) CRANE ASSEMBLY (REVISED SEPTEMBER 2009) BOOM ASSEMBLY (REVISED JULY 2004) BOOM ASSEMBLY (REVISED AUGUST 2008) TELESCOPIC CYLINDER ASSY TELESCOPIC CYLINDER (1ST) ASSY TELESCOPIC CYLINDER (2ND) ASSY TELESCOPIC CYLINDER (3RD) ASSY SWING POST ASSY WINCH REDUCTION GEAR ASSY DERRICK CYLINDER ASSY FRAME ASSEMBLY (REVISED JULY 2004) FRAME ASSEMBLY (REVISED AUGUST 2008) FRAME ASSEMBLY (REVISED JANUARY 2009) FRAME ASSEMBLY (REVISED SEPTEMBER 2009) SWING R/G SET ROTARY JOINT ASSY, STD OPERATION ASSEMBLY (I) (REVISED DECEMBER 2008) OPERATION ASSEMBLY (I) (REVISED FEBRUARY 2009) OPERATION MAIN ASSEMBLY (REVISED SEPTEMBER 2009) VALVE STAND SET (ADDED FEB 2009) VALVE STAND SET (REVISED SEPTEMBER 2009) LEVER STAND SET (ADDED FEB 2009) OPERATION ASSEMBLY (II) (REVISED JULY 2004) OPERATION OUTRIGGER ASSEMBLY (REVISED AUGUST 2008) VALVE STAND SET (ADDED AUG 2008) LEVER STAND SET (ADDED AUG 2008) GEAR COVER SET OUTRIGGER ASSEMBLY (5 TONS) (REVISED JULY 2004) OUTRIGGER ASSEMBLY (5 TONS) (AUGUST 2008 REVISION) OUTRIGGER ASSEMBLY (8 TONS) (REVISED JULY 2004) OUTRIGGER ASSEMBLY (8 TONS) (AUGUST 2008 REVISION) JACK CYL' ASSY EXPANDING CYL' ASSY PIPING ASSEMBLIES (REVISED FEBRUARY 2009) PIPING ASSEMBLIES (REVISED SEPTEMBER 2009) DISTRIBUTOR PIPING, STD DEREK PIPING (REVISED JULY 2004) DEREK PIPING (REVISED AUGUST 2008) WINCH PIPING (REVISED JULY 2004) WINCH PIPING (REVISED AUGUST 2008) TELESCOPIC PIPING, STD SWING PIPING (REVISED JULY 2004) SWING PIPING (REVISED AUGUST 2008) OUTRIGGER PIPING ROD LIMIT PIPING (ADDED SEP 2009) HOOK ASSEMBLY (REVISED DECEMBER 2008) HOOK ASSEMBLY (REVISED FEBRUARY 2009) STICKER SET (REVISED JULY 2004) STICKER SET (REVISED AUGUST 2008) MOUNTING ASSY, STD P.T.O AND PUMP PART, 5TON P.T.O AND PUMP PART, 8TON REAR AUTOMATIC MOUNTING PARTS (5 TONS) REAR AUTOMATIC MOUNTING PARTS (8 TONS) ACC'L SYSTEM PART, 5, 8TON REAR MOUNTING PIPING PARTS (AUGUST 2008 REVISED) REAR MOUNTING PIPING PARTS (REVISED DECEMBER 2008) LOADING BOX PART, STD MOUNTING PIPING PARTS (REVISED AUGUST 2008) MOUNTING PIPING PARTS (REVISED DECEMBER 2008) WIRE ASSEMBLY (ADDED SEP 2009) FRAME WIRES (ADDED SEPTEMBER 2009) POST WIRES (ADDED SEP 2009) POST WIRING (STD, TOP) (ADDED SEP 2009) CRANE ASSEMBLY (REVISED DECEMBER 2008) CRANE ASSEMBLY (REVISED FEBRUARY 2009) CRANE ASSEMBLY (REVISED SEPTEMBER 2009) FRAME ASSEMBLY (REVISED JULY 2004) FRAME ASSEMBLY (REVISED AUGUST 2008) FRAME ASSEMBLY (REVISED JANUARY 2009) FRAME ASSEMBLY (REVISED JULY 2009) ROTARY JOINT ASSEMBLY (REVISED JULY 2004) ROTARY JOINT ASSEMBLY (REVISED AUGUST 2008) AXEL SYSTEM PARTS PIPING ASSEMBLIES (REVISED FEBRUARY 2009) PIPING ASSEMBLIES (REVISED SEPTEMBER 2009) PIPING ASSEMBLIES (REVISED MARCH 2010) DISTRIBUTOR PIPING (REVISED JULY 2004) DISTRIBUTOR PIPING (REVISED AUGUST 2008) DISTRIBUTOR PIPING (REVISED SEPTEMBER 2009) SUB WINCH PIPING (REVISED JULY 2004) SUB WINCH PIPING (REVISED AUGUST 2008) DEREK PIPING (REVISED JULY 2004) DEREK PIPING (REVISED AUGUST 2008) DEREK PIPING (REVISED SEPTEMBER 2009) MAIN WINCH PIPING (REVISED FEBRUARY 2009) MAIN WINCH PIPING (REVISED SEPTEMBER 2009) TELESCOPIC PIPING (REVISED FEBRUARY 2009) TELESCOPIC PIPING (REVISED SEPTEMBER 2009) SWING PIPING (REVISED JULY 2004) SWING PIPING (REVISED AUGUST 2008) STICKER SET (REVISED JULY 2004) STICKER SET (REVISED AUGUST 2008) MOUNTING ASSY, TOP LOADING BOX PART, TOP TOP SEAT ASSY (5 STATIONS) (REVISED JANUARY 2009) TOP SEAT ASSY (5 STATIONS) (REVISED JULY 2009) WIRE ASSEMBLY (ADDED SEP 2009) FRAME WIRES (ADDED SEPTEMBER 2009) POST WIRES (ADDED SEP 2009) OPTION AUXILIARY BOOM SET (5M) (REVISED FEBRUARY 2009) AUXILIARY BOOM SET (5M) (REVISED SEPTEMBER 2009) SUB WINCH ASSY SUB WINCH PIPING (ADDED SEP 2009) OVER WINDING PREVENTION DEVICE ASSEMBLY (SEPTEMBER 2009) OVER-CIRCUIT PREVENTION DEVICE OVER-CIRCUIT PREVENTION DEVICE INSTALLATION DIAGRAM (REVISED DECEMBER 2008) OVERLOAD PROTECTION PIPING ASS'Y (ADDED SEP 2009) ELECTRIC CIRCUIT DIAGRAM

1

2

3

4

5

5

6

6

7

8

9

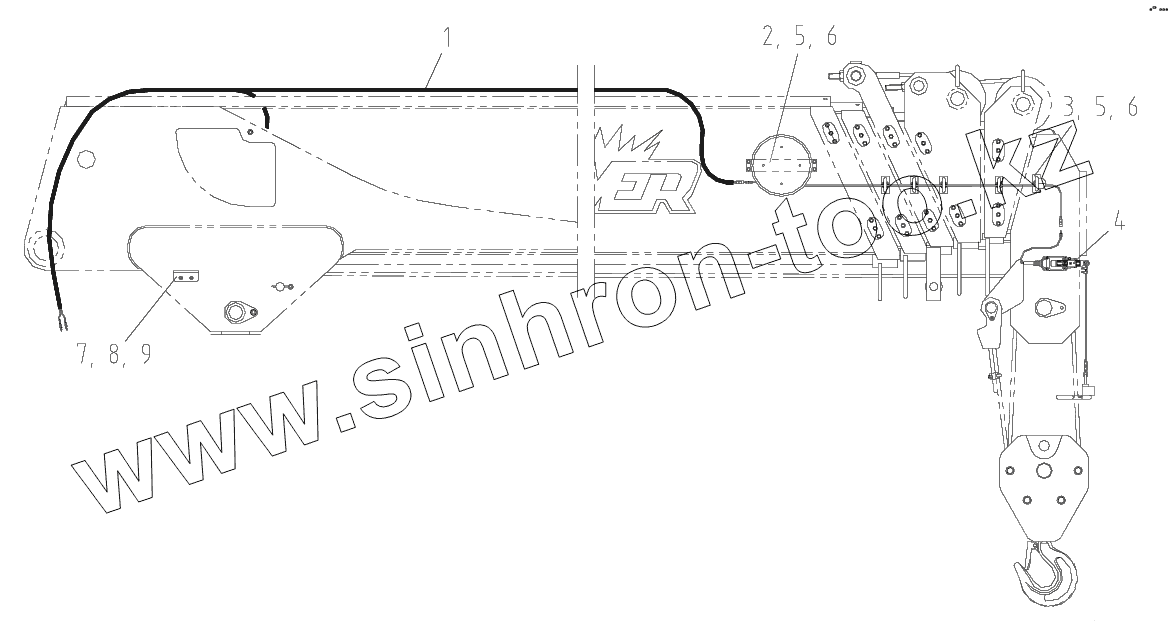

Позиция на иллюстрации	Заводской номер детали		Название детали
1	J15531		Boom harness
2	W31146		Cord reel
3	W31147		Guide
4	W31133		Limmit switch assy
5	4000147		Hex. Bolt
6	4210010		Spring washer
7	W30058		Plate
8	4010031		Socket bolt
9	4211008		Spring washer
