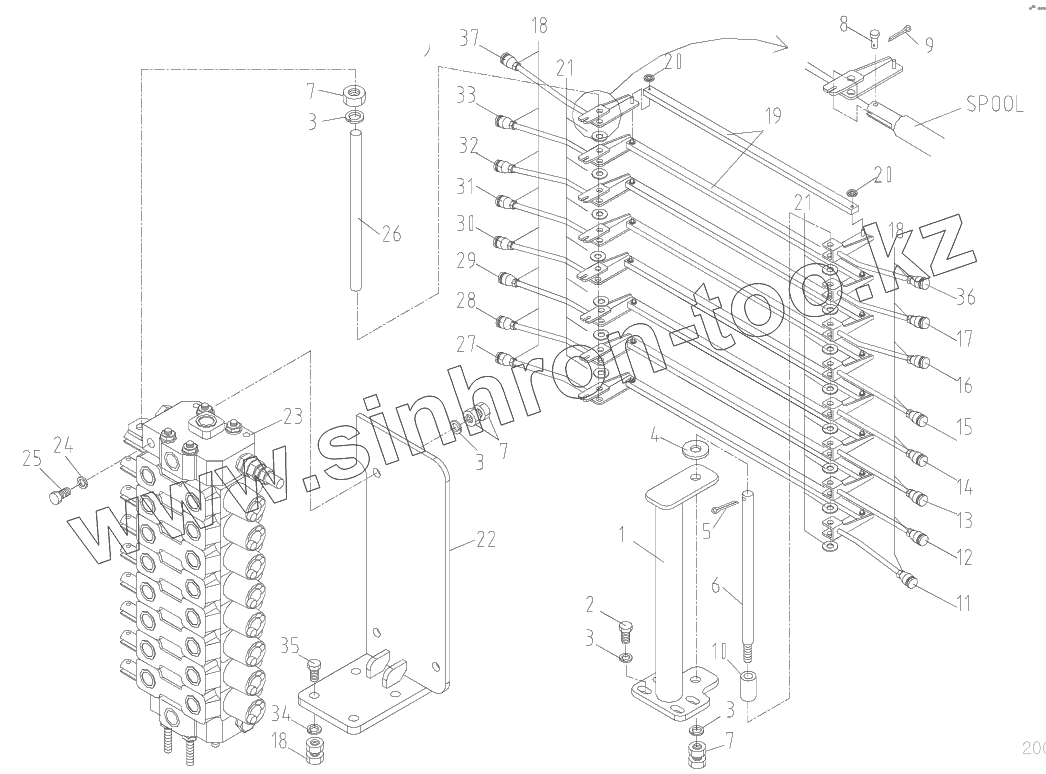

Каталог запасных частей к технике: Soosan SCS746L. OPERATION ASSEMBLY (II) (REVISED JULY 2004)
1
2
3
3
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B13328 | Lever stand | |
| 2 | 4002172 | Hex. Bolt | |
| 3 | 4210011 | Spring washer | |
| 4 | 4200010 | Plane washer | |
| 5 | 4310081 | Split pin | |
| 6 | B13330 | Pin | |
| 7 | 4101212 | Hex. Nut | |
| 8 | B13200 | Pin | |
| 9 | 4320001 | Snap pin | |
| 10 | B13310 | Spacer | |
| 11 | B13331 | Lever | |
| 12 | B13333 | Lever | |
| 13 | B13334 | Lever | |
| 14 | B13335 | Lever | |
| 15 | B13336 | Lever | |
| 16 | B13337 | Lever | |
| 17 | B13338 | Lever | |
| 18 | 4101211 | Hex. Nut | |
| 19 | B13316 | Square pipe | |
| 20 | 4120008 | Push nut | |
| 21 | A73413 | Vinyl washer | |
| 22 | B13339 | Vinyl stand | |
| 23 | B17605 | Control valve assy | |
| 24 | 4200008 | Plane washer | |
| 25 | 4002180 | Hex. Bolt | |
| 26 | B13341 | Pin | |
| 27 | B13342 | Lever | |
| 28 | B13344 | Lever | |
| 29 | B13345 | Lever | |
| 30 | B13346 | Lever | |
| 31 | B13347 | Lever | |
| 32 | B13348 | Lever | |
| 33 | B13349 | Lever | |
| 34 | 4210010 | Spring washer | |
| 35 | 4002155 | Hex. Bolt | |
| 36 | B13351 | Lever | |
| 37 | B13352 | Lever |
