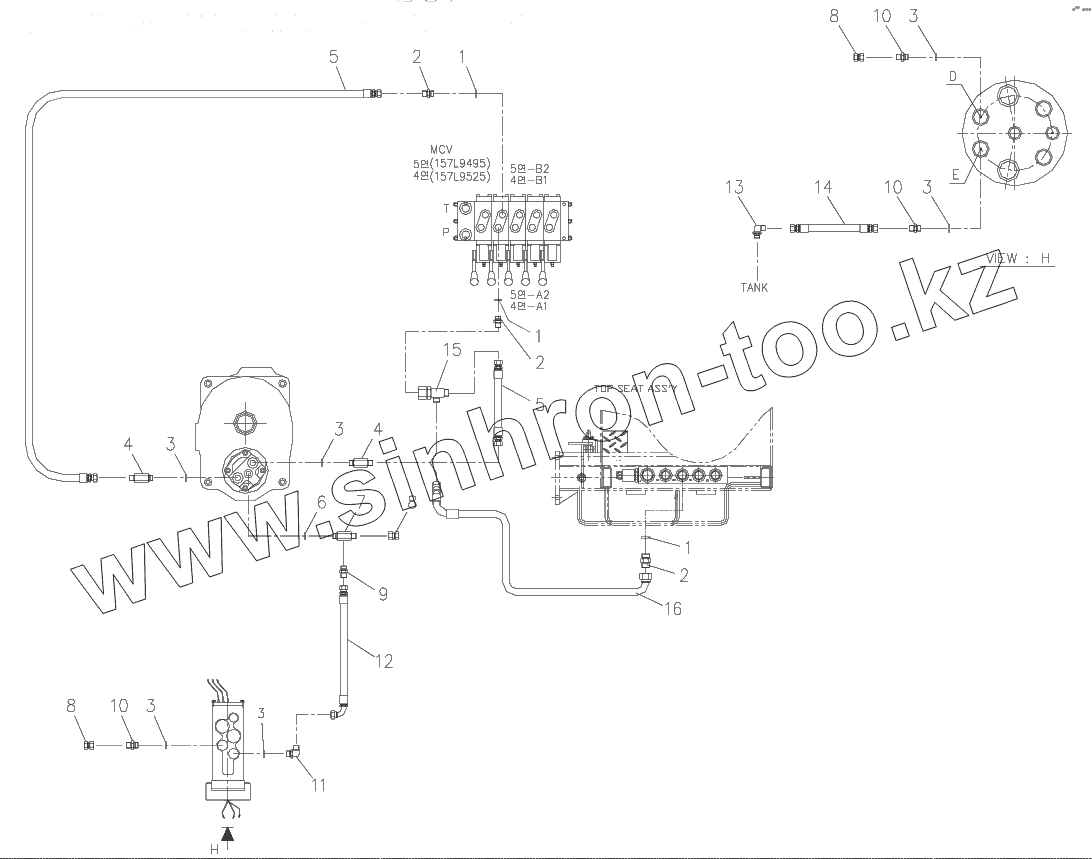

MAIN WINCH PIPING (REVISED SEPTEMBER 2009)
Каталог запасных частей к технике: Soosan SCS746L. MAIN WINCH PIPING (REVISED SEPTEMBER 2009)
