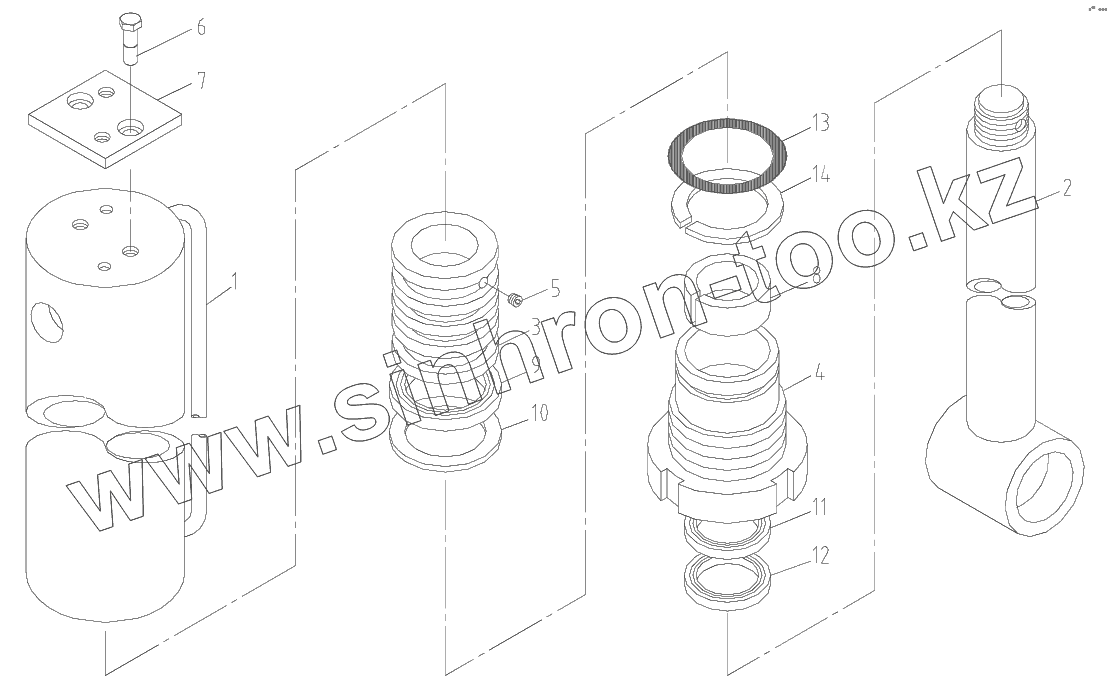

Позиция на иллюстрации
Заводской номер детали
Название детали
1
5TON
Tube assy
1
8TON
Tube assy
2
RODASSY
Rod assy
3
PISTON
Piston
4
RODCOVER
Rod cover
5
SCREW
Screw
6
HEX.BOLT
Hex. Bolt
7
DUSTCOVER
Dust cover
8
DUBUSH
Du bush
9
PISTONPACKING
Piston packing
10
O-RING
O-ring
11
RODPACKING
Rod packing
12
DUSTWIPER
Dust wiper
13
O-RING
O-ring
14
BACK-UPRING
Back-up ring
15
AS0974
Seal kit
