HOOK ASSEMBLY (REVISED FEBRUARY 2009)

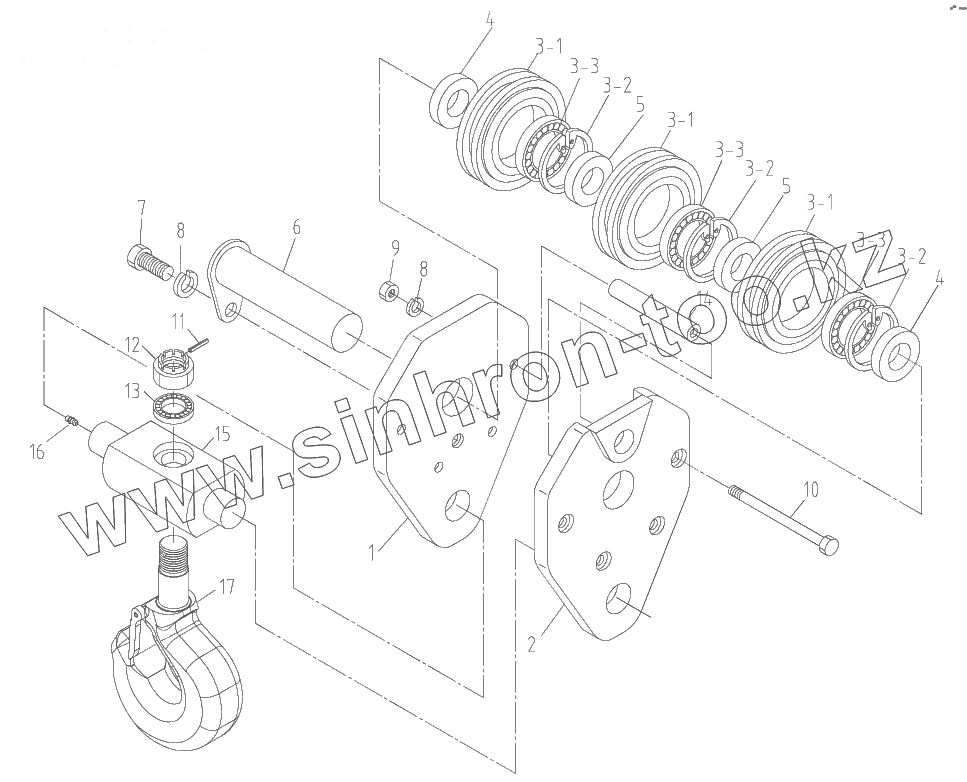

Каталог запасных частей к технике: Soosan SCS746L. HOOK ASSEMBLY (REVISED FEBRUARY 2009)
