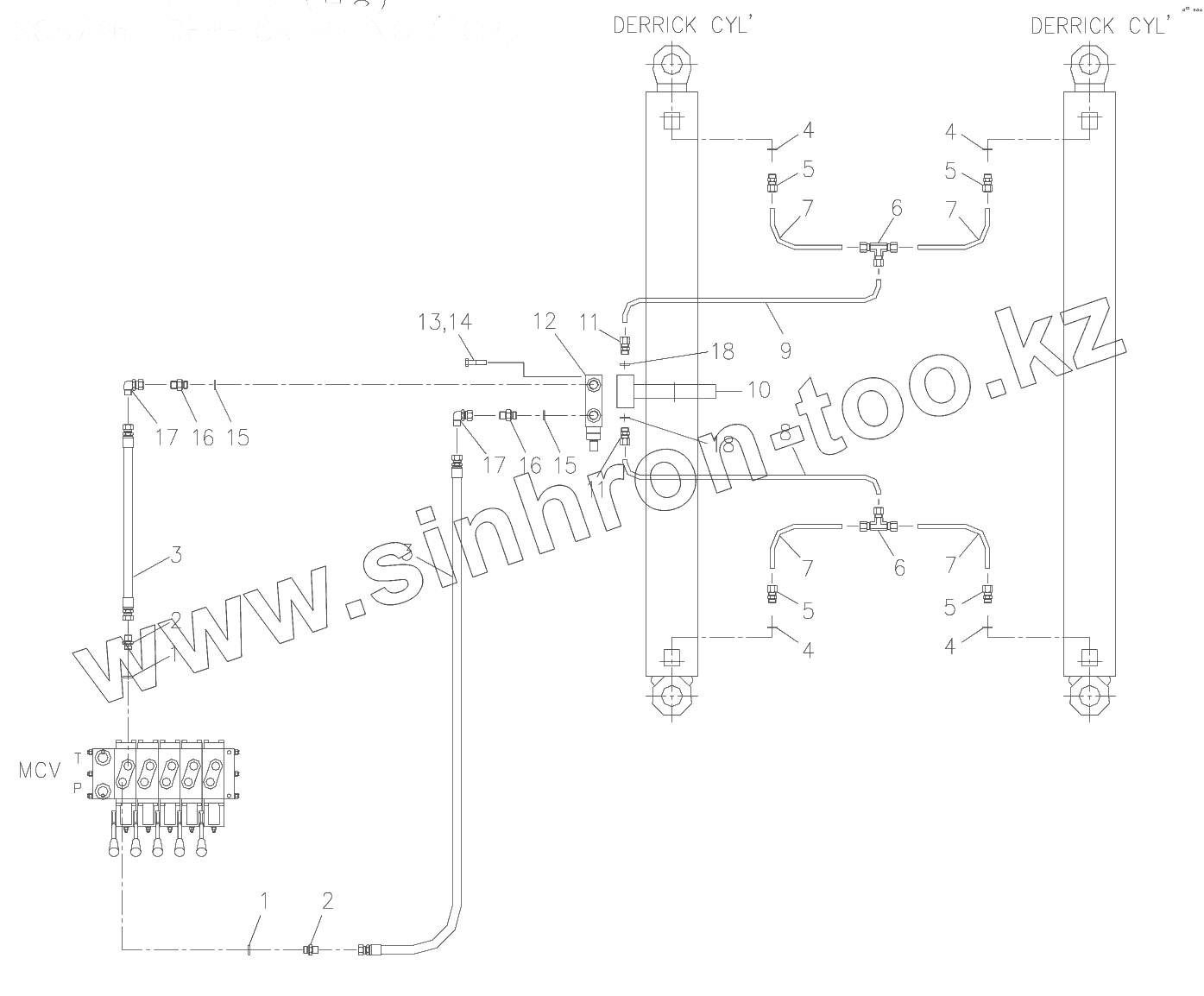

DEREK PIPING (REVISED AUGUST 2008)
Каталог запасных частей к технике: Soosan SCS746L. DEREK PIPING (REVISED AUGUST 2008)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
SCS746L (2010)
Схема
>
Не выбрано
CRANE ASSEMBLY (REVISED DECEMBER 2008)
CRANE ASSEMBLY (REVISED FEBRUARY 2009)
CRANE ASSEMBLY (REVISED SEPTEMBER 2009)
BOOM ASSEMBLY (REVISED JULY 2004)
BOOM ASSEMBLY (REVISED AUGUST 2008)
TELESCOPIC CYLINDER ASSY
TELESCOPIC CYLINDER (1ST) ASSY
TELESCOPIC CYLINDER (2ND) ASSY
TELESCOPIC CYLINDER (3RD) ASSY
SWING POST ASSY
WINCH REDUCTION GEAR ASSY
DERRICK CYLINDER ASSY
FRAME ASSEMBLY (REVISED JULY 2004)
FRAME ASSEMBLY (REVISED AUGUST 2008)
FRAME ASSEMBLY (REVISED JANUARY 2009)
FRAME ASSEMBLY (REVISED SEPTEMBER 2009)
SWING R/G SET
ROTARY JOINT ASSY, STD
OPERATION ASSEMBLY (I) (REVISED DECEMBER 2008)
OPERATION ASSEMBLY (I) (REVISED FEBRUARY 2009)
OPERATION MAIN ASSEMBLY (REVISED SEPTEMBER 2009)
VALVE STAND SET (ADDED FEB 2009)
VALVE STAND SET (REVISED SEPTEMBER 2009)
LEVER STAND SET (ADDED FEB 2009)
OPERATION ASSEMBLY (II) (REVISED JULY 2004)
OPERATION OUTRIGGER ASSEMBLY (REVISED AUGUST 2008)
VALVE STAND SET (ADDED AUG 2008)
LEVER STAND SET (ADDED AUG 2008)
GEAR COVER SET
OUTRIGGER ASSEMBLY (5 TONS) (REVISED JULY 2004)
OUTRIGGER ASSEMBLY (5 TONS) (AUGUST 2008 REVISION)
OUTRIGGER ASSEMBLY (8 TONS) (REVISED JULY 2004)
OUTRIGGER ASSEMBLY (8 TONS) (AUGUST 2008 REVISION)
JACK CYL' ASSY
EXPANDING CYL' ASSY
PIPING ASSEMBLIES (REVISED FEBRUARY 2009)
PIPING ASSEMBLIES (REVISED SEPTEMBER 2009)
DISTRIBUTOR PIPING, STD
DEREK PIPING (REVISED JULY 2004)
DEREK PIPING (REVISED AUGUST 2008)
WINCH PIPING (REVISED JULY 2004)
WINCH PIPING (REVISED AUGUST 2008)
TELESCOPIC PIPING, STD
SWING PIPING (REVISED JULY 2004)
SWING PIPING (REVISED AUGUST 2008)
OUTRIGGER PIPING
ROD LIMIT PIPING (ADDED SEP 2009)
HOOK ASSEMBLY (REVISED DECEMBER 2008)
HOOK ASSEMBLY (REVISED FEBRUARY 2009)
STICKER SET (REVISED JULY 2004)
STICKER SET (REVISED AUGUST 2008)
MOUNTING ASSY, STD
P.T.O AND PUMP PART, 5TON
P.T.O AND PUMP PART, 8TON
REAR AUTOMATIC MOUNTING PARTS (5 TONS)
REAR AUTOMATIC MOUNTING PARTS (8 TONS)
ACC'L SYSTEM PART, 5, 8TON
REAR MOUNTING PIPING PARTS (AUGUST 2008 REVISED)
REAR MOUNTING PIPING PARTS (REVISED DECEMBER 2008)
LOADING BOX PART, STD
MOUNTING PIPING PARTS (REVISED AUGUST 2008)
MOUNTING PIPING PARTS (REVISED DECEMBER 2008)
WIRE ASSEMBLY (ADDED SEP 2009)
FRAME WIRES (ADDED SEPTEMBER 2009)
POST WIRES (ADDED SEP 2009)
POST WIRING (STD, TOP) (ADDED SEP 2009)
CRANE ASSEMBLY (REVISED DECEMBER 2008)
CRANE ASSEMBLY (REVISED FEBRUARY 2009)
CRANE ASSEMBLY (REVISED SEPTEMBER 2009)
FRAME ASSEMBLY (REVISED JULY 2004)
FRAME ASSEMBLY (REVISED AUGUST 2008)
FRAME ASSEMBLY (REVISED JANUARY 2009)
FRAME ASSEMBLY (REVISED JULY 2009)
ROTARY JOINT ASSEMBLY (REVISED JULY 2004)
ROTARY JOINT ASSEMBLY (REVISED AUGUST 2008)
AXEL SYSTEM PARTS
PIPING ASSEMBLIES (REVISED FEBRUARY 2009)
PIPING ASSEMBLIES (REVISED SEPTEMBER 2009)
PIPING ASSEMBLIES (REVISED MARCH 2010)
DISTRIBUTOR PIPING (REVISED JULY 2004)
DISTRIBUTOR PIPING (REVISED AUGUST 2008)
DISTRIBUTOR PIPING (REVISED SEPTEMBER 2009)
SUB WINCH PIPING (REVISED JULY 2004)
SUB WINCH PIPING (REVISED AUGUST 2008)
DEREK PIPING (REVISED JULY 2004)
DEREK PIPING (REVISED AUGUST 2008)
DEREK PIPING (REVISED SEPTEMBER 2009)
MAIN WINCH PIPING (REVISED FEBRUARY 2009)
MAIN WINCH PIPING (REVISED SEPTEMBER 2009)
TELESCOPIC PIPING (REVISED FEBRUARY 2009)
TELESCOPIC PIPING (REVISED SEPTEMBER 2009)
SWING PIPING (REVISED JULY 2004)
SWING PIPING (REVISED AUGUST 2008)
STICKER SET (REVISED JULY 2004)
STICKER SET (REVISED AUGUST 2008)
MOUNTING ASSY, TOP
LOADING BOX PART, TOP
TOP SEAT ASSY (5 STATIONS) (REVISED JANUARY 2009)
TOP SEAT ASSY (5 STATIONS) (REVISED JULY 2009)
WIRE ASSEMBLY (ADDED SEP 2009)
FRAME WIRES (ADDED SEPTEMBER 2009)
POST WIRES (ADDED SEP 2009)
OPTION
AUXILIARY BOOM SET (5M) (REVISED FEBRUARY 2009)
AUXILIARY BOOM SET (5M) (REVISED SEPTEMBER 2009)
SUB WINCH ASSY
SUB WINCH PIPING (ADDED SEP 2009)
OVER WINDING PREVENTION DEVICE ASSEMBLY (SEPTEMBER 2009)
OVER-CIRCUIT PREVENTION DEVICE
OVER-CIRCUIT PREVENTION DEVICE INSTALLATION DIAGRAM (REVISED DECEMBER 2008)
OVERLOAD PROTECTION PIPING ASS'Y (ADDED SEP 2009)
ELECTRIC CIRCUIT DIAGRAM
1
1
2
2
3
3
4
4
4
4
5
5
5
5
6
6
7
7
7
7
8
9
10
11
11
12
13
14
15
15
16
16
17
17
18
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
2858104
Bonded seal
2
2710605
H/adapter
3
2551174
Oil hose
4
2851017
O-ring
5
2720113
M/connector
6
2721504
Tee
7
J15120
Pipe
8
J15121
Pipe
9
J15122
Pipe
10
J15160
Clamp
11
2720112
M/connector
12
J17602
Over center
13
4210010
Spring washer
14
4002155
Hex. Bolt
15
2858103
Bonded seal
16
2710604
H/adapter
17
2713401
H/union adapter
18
2851014
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
