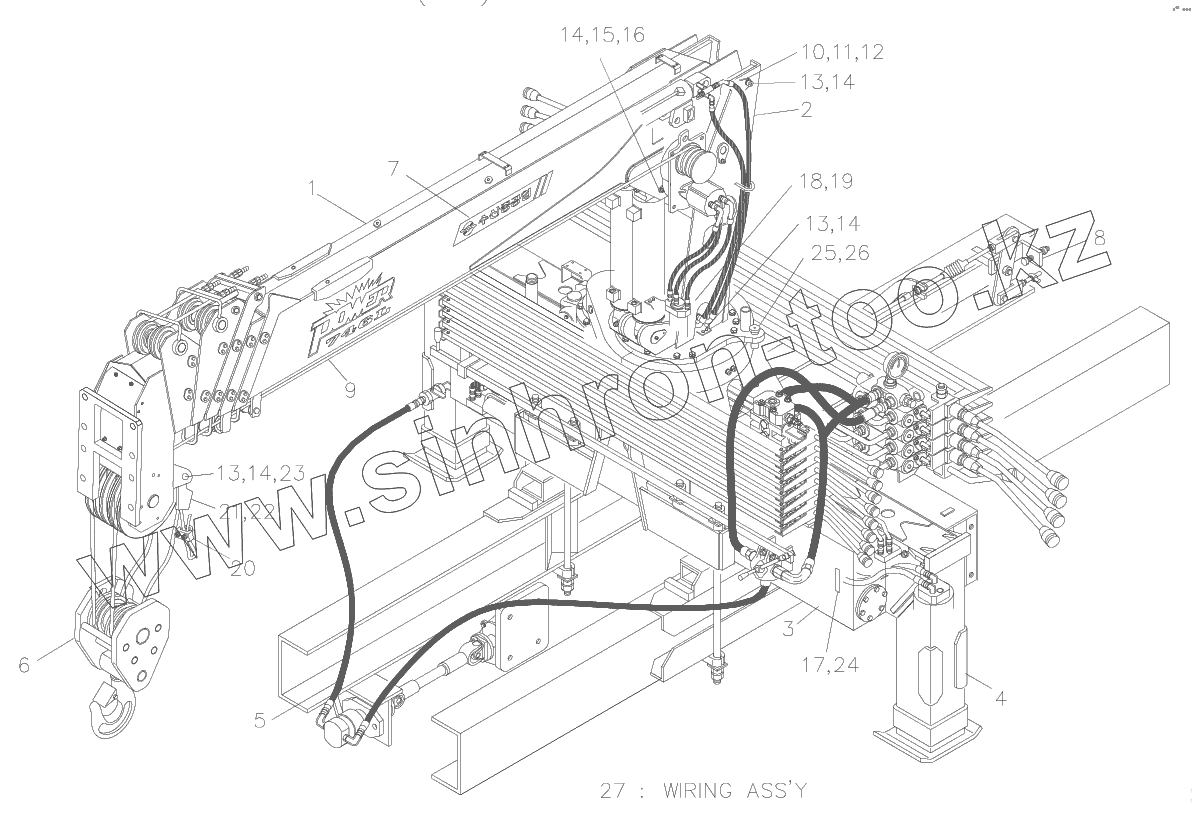

Каталог запасных частей к технике: Soosan SCS746L. CRANE ASSEMBLY (REVISED SEPTEMBER 2009)

Тип техники

Марка

Модель

Схема

14

14

14

14

9

10

11

12

13

13

13

8

15

16

17

18

19

20

21

22

23

24

25

26

27

1

2

3

4

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
14	4211011		Spring washer
8-1	A56448		P.t.o and pump part
8-1	A56177		P.t.o and pump part
8-2	J16104,105,106		R/a m/t part
8-2	J16107		R/a m/t part
8-3	A56113		Acc.l system part
8-3	A56165		Acc.l system part
8-4	J16112		R/a m/t piping part
8-5	A56142		Loading box part
8-6	A56234		M/t piping part
9	B10601		Wire rope
10	J10100		Pin
11	4111013		Lock nut
12	4230011		Lock washer
13	4010060		Socket bolt
8	J16030		Mounting assy
15	4010059		Socket bolt
16	J10103		Pin
17	J10107		Pin
18	J10110		Stopper
19	J10106		Cover
20	4500002		Wire clip
21	A50110		Open socket
22	A00110		Wedge
23	A21380		Shaft
24	4400009		Snap ring
25	J10108		Pin
26	4020002		Bolt
27	J15500		Wiring assy
4-1	A57130		Jack cyl. Assy
J10044	J10044		Crane assy
1	J11000		Boom assy
1-1	J17100		Telescopic cyl. Assy
2	J12000		Swing post assy
2-1	A57200		Winch reduction gear assy
2-2	J17150		Derrick cyl. Assy
3	J13022		Frame assy
3-1	J17250		Swing r/g set
3-2	J17400		Rotary joint assy
3-3	J13570		Operation main assy
3-4	J13450		Operation assy
3-5	J13600		Gear cover set
4	J14002		Outrigger assy
4	J14003		Outrigger assy
J10042	J10042		Crane assy
4-1	A57131		Jack cyl. Assy
4-2	J17121		Expanding cyl. Assy
5	J15001		Piping assy
5-1	J15100		Distributor piping
5-2	J15101		Derrick piping
5-3	J15102		Winch piping
5-4	J15103		Telescopic piping
5-5	J15104		Swing piping
5-6	J15105		Outrigger piping
5-7	J15106		Load limmit piping
6	B19001		Hook assy
7	J19100		Sticker assy
8	J16020		Mounting assy
