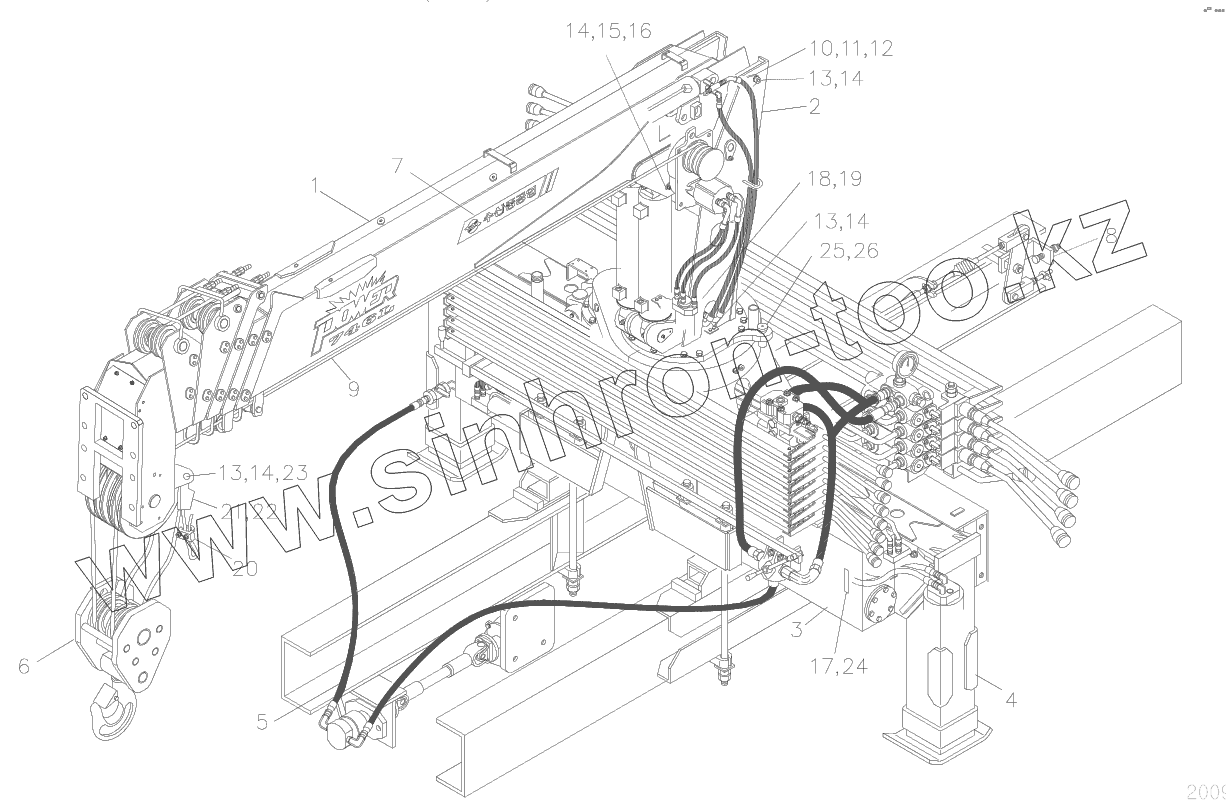

Каталог запасных частей к технике: Soosan SCS746L. CRANE ASSEMBLY (REVISED FEBRUARY 2009)

Тип техники

Марка

Модель

Схема

12

8

8

9

10

11

7

13

13

13

14

14

14

14

15

16

17

18

19

20

21

22

23

24

25

26

1

2

3

4

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
12	4230011		Lock washer
8	J16020		Mounting assy
8	J16030		Mounting assy
8-1	A56448		P.t.o and pump part
8-1	A56177		P.t.o and pump part
8-2	J16104,105,106		R/a m/t part
8-2	J16107		R/a m/t part
8-3	A56113		Acc.l system part
8-3	A56165		Acc.l system part
8-4	J16112		R/a m/t piping part
8-5	A56142		Loading box part
8-6	A56234		M/t piping part
9	B10601		Wire rope
10	J10100		Pin
11	4111013		Lock nut
7	J19100		Sticker assy
13	4010060		Socket bolt
14	4211011		Spring washer
15	4010059		Socket bolt
16	J10103		Pin
17	J10107		Pin
18	J10110		Stopper
19	J10106		Cover
20	4500002		Wire clip
21	A50110		Open socket
22	A00110		Wedge
23	A21380		Shaft
24	4400009		Snap ring
25	J10108		Pin
26	4020002		Bolt
3-5	J13600		Gear cover set
J10001	J10001		Crane assy
1	J11000		Boom assy
1-1	J17100		Telescopic cyl. Assy
1-1-1	TELESCOPICCYL.ASSY		Telescopic cyl. Assy
1-1-2	TELESCOPICCYL.ASSY		Telescopic cyl. Assy
1-1-3	TELESCOPICCYL.ASSY		Telescopic cyl. Assy
2	J12000		Swing post assy
2-1	A57200		Winch reduction gear assy
2-2	J17150		Derrick cyl. Assy
3	J13004		Frame assy
3-1	J17250		Swing r/g set
3-2	J17400		Rotary joint assy
3-3	B13149		Operation assy
3-4	B13327		Operation assy
J10000	J10000		Crane assy
4	J14002		Outrigger assy
4	J14003		Outrigger assy
4-1	A57130		Jack cyl. Assy
4-1	A57131		Jack cyl. Assy
4-2	J17121		Expanding cyl. Assy
5	J15001		Piping assy
5-1	J15100		Distributor piping
5-2	J15101		Derrick piping
5-3	J15102		Winch piping
5-4	J15103		Telescopic piping
5-5	J15104		Swing piping
5-6	J15105		Outrigger piping
6	B19001		Hook assy

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
