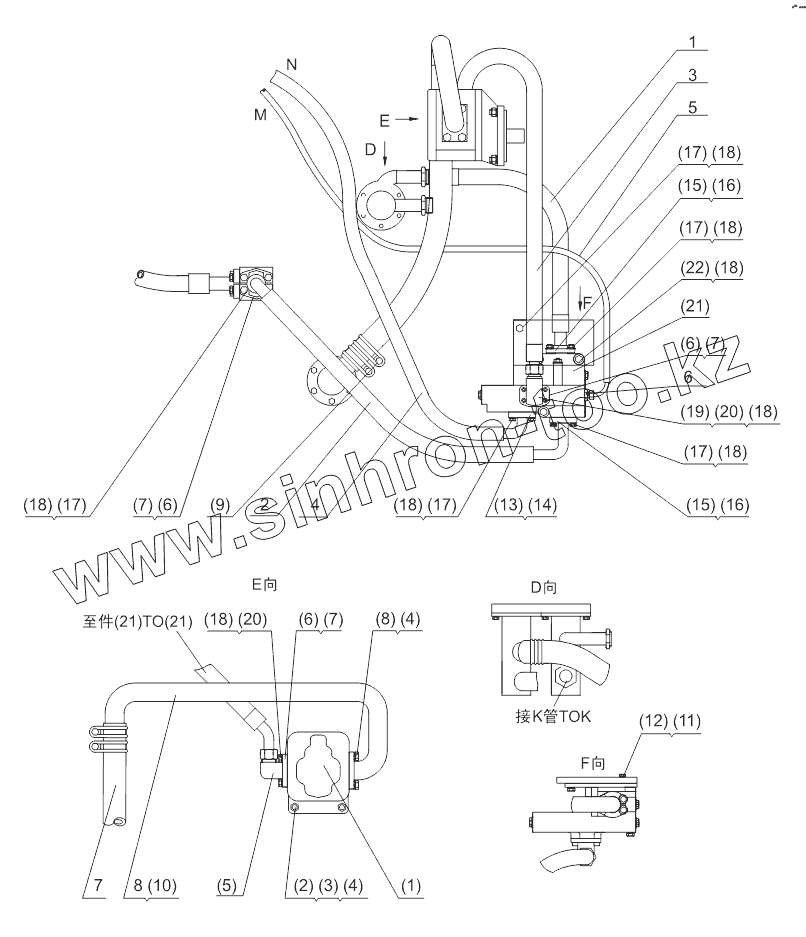

Каталог запасных частей к технике: Shantui SL-50W. STEERING PUMP/UNLOADING VALVE PIPING SL50W
1
2
3
4
5
6
7
8
(1)
(2)
(3)
(4)
(4)
(5)
(6)
(6)
(6)
(7)
(7)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(15)
(16)
(16)
(17)
(17)
(17)
(17)
(17)
(18)
(18)
(18)
(18)
(18)
(18)
(18)
(18)
(19)
(20)
(20)
(21)
(21)
(21)
(22)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG956-05001 | Oil return tube, unloading valve | |
| 2 | DG956-05002 | Confluence tube , unloading valve to oil way board | |
| 3 | DG956-05003 | Oil tube , steering pump to unloading valve | |
| 4 | DG956-05004 | Oil tube,deflector to unloading valve | |
| 5 | DG956-05005 | Reaction oil tube ,deflector to unloading valve | |
| 6 | DG956-05007 | Joint | |
| 7 | ZL50G3-05017 | Hose | |
| 8 | ZL50G3-05018 | Steering pump oil-in steel tube | |
| (1) | JHP2100 | Gear pump | |
| (2) | GB898 | Double-screw bolt | |
| (3) | GB6170 | Nut | |
| (4) | GB93 | Washer | |
| (5) | LFS11/4/28LA | Flange joint | |
| (6) | 51H-20 | Flange | |
| (7) | GB3452.1 | O-ring | |
| (8) | GB5783 | Bolt | |
| (9) | GB3618.1 | Clamp | |
| (10) | GB3452.1 | O-ring | |
| (11) | GB5783 | Bolt | |
| (12) | GB938 | Spring washer | |
| (13) | M1H-12 | Split flange | |
| (14) | GB3452.1 | O-ring | |
| (15) | M1H-16 | Split flange | |
| (16) | GB3452.1 | O-ring | |
| (17) | GB5783 | Bolt | |
| (18) | GB93 | Washer | |
| (19) | LFS1/28L | Flange joint | |
| (20) | GB70 | Screw | |
| (21) | YXH25 | Priority unloading valve | |
| (22) | GB5783 | Bolt |
