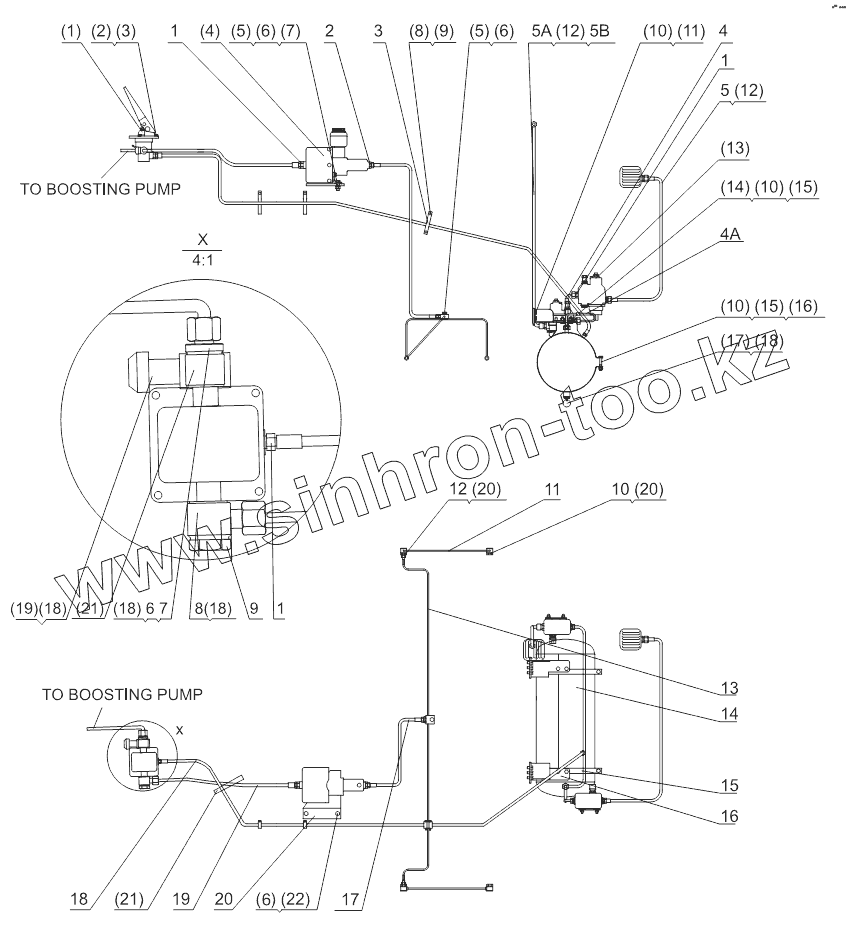

Каталог запасных частей к технике: Shantui SL-50W. REAR AXLE BRAKE PIPING
1
1
1
2
3
4
4А
5
5А
5В
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
(1)
(2)
(3)
(4)
(5)
(5)
(6)
(6)
(6)
(7)
(8)
(9)
(10)
(10)
(10)
(11)
(12)
(12)
(13)
(14)
(15)
(15)
(16)
(17)
(18)
(18)
(18)
(18)
(19)
(20)
(20)
(21)
(21)
(22)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL50G2-07003 | Joint | |
| 2 | ZL50G2-07004 | Joint | |
| 3 | ZL50G2-07005 | Pipe clip | |
| 4 | ZL50G2-07006B | Inlet pipe | |
| 4А | DG956WII-07006 | Inlet pipe | |
| 5 | ZL50G3-07008A | Compressor outlet pipe | |
| 5А | DG956WII-07005 | Compressor outlet pipe | |
| 5В | DG956VW-07005A | Compressor outlet pipe | |
| 6 | ZL50G2-07044 | Joint | |
| 7 | ZL50G2-07043 | Joint | |
| 8 | DG938-07008 | Link joint | |
| 9 | DG938-07032 | Link bolt | |
| 10 | ZL50G2-07015 | Link bolt | |
| 11 | ZL50G2-07014C | Brake tube | |
| 12 | ZL50G2-07013 | Link bolt | |
| 13 | ZL50G2-07017C | Brake tube | |
| 14 | ZL50G2-07009A | Air cylinder | |
| 15 | ZL50G2-07022A | Air cylinder hoop | |
| 16 | ZL50G2-07021A | Air cylinder bracket | |
| 17 | ZL50G2-07027 | Tube | |
| 18 | ZL50G2-07032 | Tube | |
| 19 | ZL50G2-07037 | Tube | |
| 20 | ZL50G2-07011 | Boosting pump bracket | |
| 21 | ZL50G2-07016A | Joint | |
| (1) | XM60C-3514002 | Air brake valve | |
| (2) | GB93 | Washer | |
| (3) | GB5781 | Bolt | |
| (4) | XZ60A-3510010 | Air boosting pump | |
| (4) | XM60-3510010 | Air boosting pump | |
| (5) | GB5781 | Bolt | |
| (6) | GB93 | Washer | |
| (7) | GB6170 | Nut | |
| (8) | GB93 | Washer | |
| (9) | GB5781 | Bolt | |
| (10) | GB93 | Washer | |
| (11) | GB5781 | Bolt | |
| (12) | JB98214 | Combined washer | |
| (13) | SH380A-3511002 | Group valve | |
| (14) | GB5781 | Bolt | |
| (15) | GB6170 | Nut | |
| (16) | GB5781 | Bolt | |
| (17) | 35360070010 | Auto water drain valve | |
| (18) | JB982 | Combined washer | |
| (19) | JN150-372001 | Brake lamp switch | |
| (20) | JB982 | Combined washer | |
| (21) | D2900-20000 | Clamp | |
| (22) | GB5781 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
