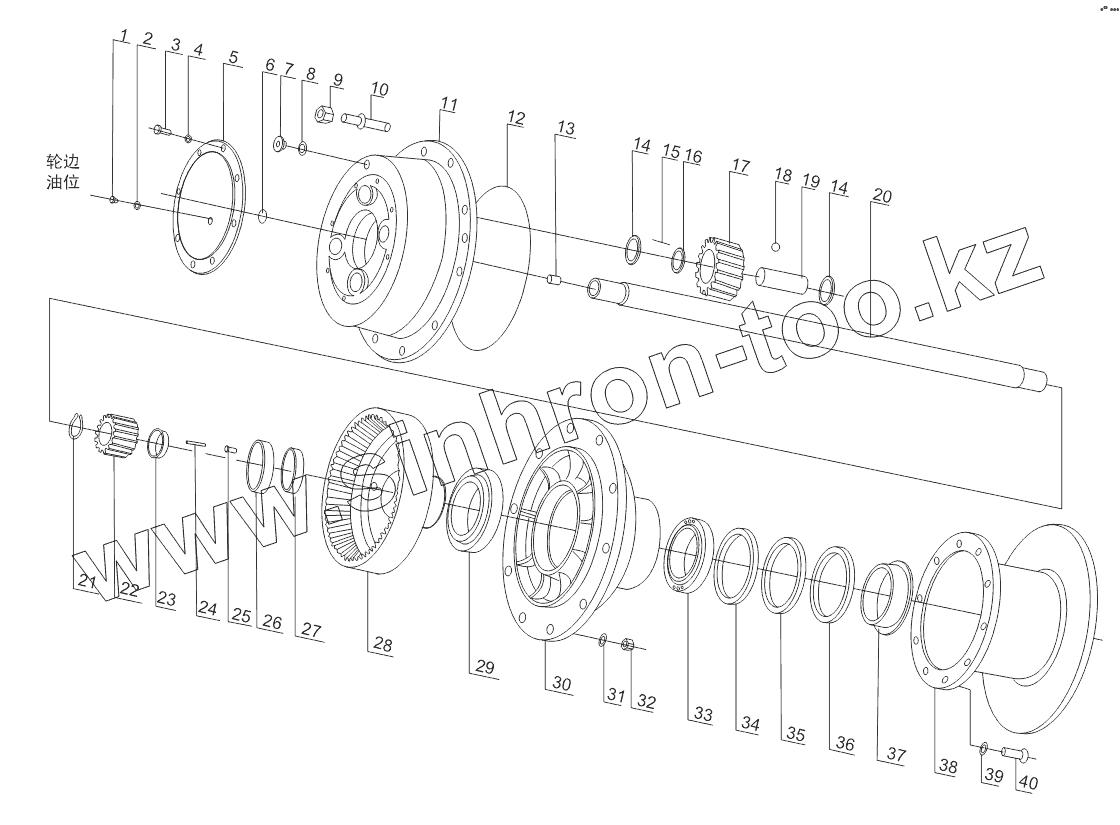

Каталог запасных частей к технике: Shantui SL-50W. PLANETARY ASSEMBLY ZL50M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 50М.00 | 50М.00 | Planetary reductor assembly | |
| 1 | 50М.00-13 | Plug | |
| 2 | JB982 | Combined washer | |
| 3 | GB5785 | Bolt | |
| 4 | GB93 | Washer | |
| 5 | 50М.04 | Cover | |
| 6 | 50М.00-11 | Snap ring | |
| 7 | 50М.00-07 | Plug | |
| 8 | GB3452.1 | O-ring | |
| 9 | ZL60D.24.2 | Bolt for rim (l/r) | |
| 10 | 404022 | Bolt for rim (l/r) | |
| 11 | 50M.00-05S | Planet gear carrier | |
| 12 | 50М.00-18 | Seal ring | |
| 13 | 50М.00-12 | Adjusting pin | |
| 14 | 50М.00-09 | Washer for planetary gear | |
| 15 | 50М.00-08 | Roller needle | |
| 16 | 50М.00-10 | Space bushing | |
| 17 | 50М.00-06 | Planetary gear | |
| 18 | GB308 | Steel ball | |
| 19 | 50М.00-15 | Shaft of planetary gear | |
| 20 | 50М.00-01 | Shaft | |
| 21 | GB894.2 | Snap ring | |
| 22 | 50М.00-14 | Sun gear | |
| 23 | 50М.00-16 | Spacer | |
| 24 | Ironwire | Iron wire | |
| 25 | 50МА.00-03 | Fastening bolts | |
| 26 | 50М.00-17А | Slot nut | |
| 27 | 50М.03А.01-02 | Bush | |
| 28 | 50М.03А | Internal gear assy | |
| 29 | GB297 | Bearing | |
| 30 | 50МА.00-01А | Hub | |
| 31 | GB93 | Washer | |
| 32 | GB6171 | Nut | |
| 33 | GB29732024 | Bearing | |
| 34 | 50МА.00-02 | Spacer for seal | |
| 35 | GB893.1 | Circlip | |
| 36 | GB13871 | Oil seal | |
| 37 | GB13871 | Oil seal | |
| 38 | 504002B | Brake disk | |
| 39 | GB93 | Washer | |
| 40 | 404010 | Bolt for brake |
