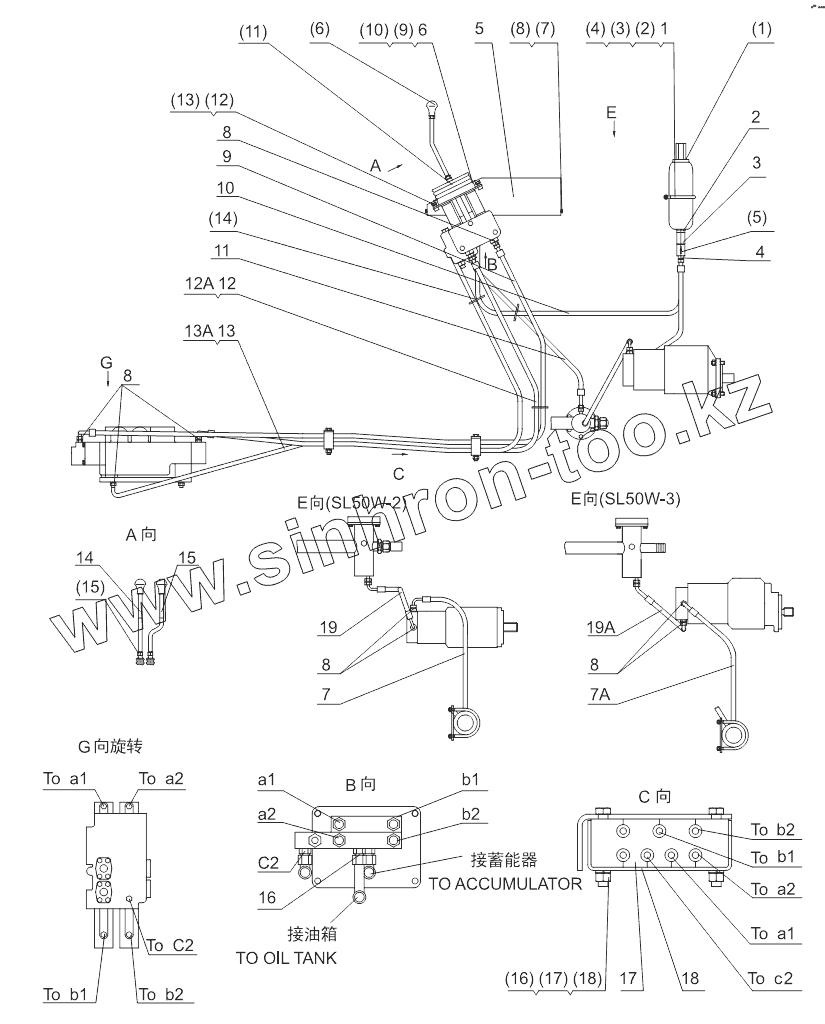

Каталог запасных частей к технике: Shantui SL-50W. PILOT VALVE PIPING
1
2
3
4
5
6
7
7A
8
8
8
8
9
10
11
12
12A
13
13A
14
15
16
17
18
19
19A
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL50G2-06010 | U-bolt | |
| 2 | ZL50G2-06011 | Joint | |
| 3 | ZL50G2-06012 | Joint assy | |
| 4 | ZL50G2-06013 | Joint | |
| 5 | ZL50G2-06008A | Up board | |
| 6 | ZL50G2-06006A | Cover board | |
| 7 | ZL50G3-06017 | Pilot oil tube | |
| 7A | DG956WIII-06017 | Pilot oil tube | |
| 8 | ZL50G2-06007 | Joint | |
| 9 | ZL50G2-06009 | Pilot oil tube | |
| 10 | ZL50G2-06016 | Pilot oil tube | |
| 11 | ZL50G2-06017 | Pilot oil tube | |
| 12 | ZL50G2-06019 | Pilot oil tube | |
| 12A | DG965-06019 | Pilot oil tube | |
| 13 | ZL50G2-06065 | Pilot oil tube | |
| 13A | DG965-06058 | Pilot oil tube | |
| 14 | ZL50G2-06014 | Lift lever | |
| 15 | ZL50G2-06015 | Tipping lever | |
| 16 | ZL50G2-06038 | Joint | |
| 17 | ZL50G2-06037 | Fixed board | |
| 18 | ZL50G2-06036 | Board | |
| 19 | ZL50G3-06045 | Poilt oil tube | |
| 19A | DG956WIII-06045 | Poilt oil tube | |
| (1) | NXQ1-L0.63/10-H | Accmulator | |
| (2) | GB6170 | Nut | |
| (3) | GB93 | Washer | |
| (4) | GB95 | Washer | |
| (5) | DIF-L10H1 | Straight check valve | |
| (6) | LJ135M | Handle ball | |
| (7) | GB5781 | Bolt | |
| (8) | GB95 | Washer | |
| (9) | GB67 | Screw | |
| (10) | GB93 | Washer | |
| (11) | DJS2-0.00 | Double handle pilot valve | |
| (11) | DXS-00 | Single handle pilot valve | |
| (12) | GB5781 | Bolt | |
| (13) | GB93 | Washer | |
| (14) | D2900-20000 | Clamp | |
| (15) | GB6171 | Nut | |
| (16) | GB6170 | Nut | |
| (17) | GB93 | Washer | |
| (18) | GB5780 | Bolt |
