INSTRUMENT DESK (Jiangsu HUACHENG)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25

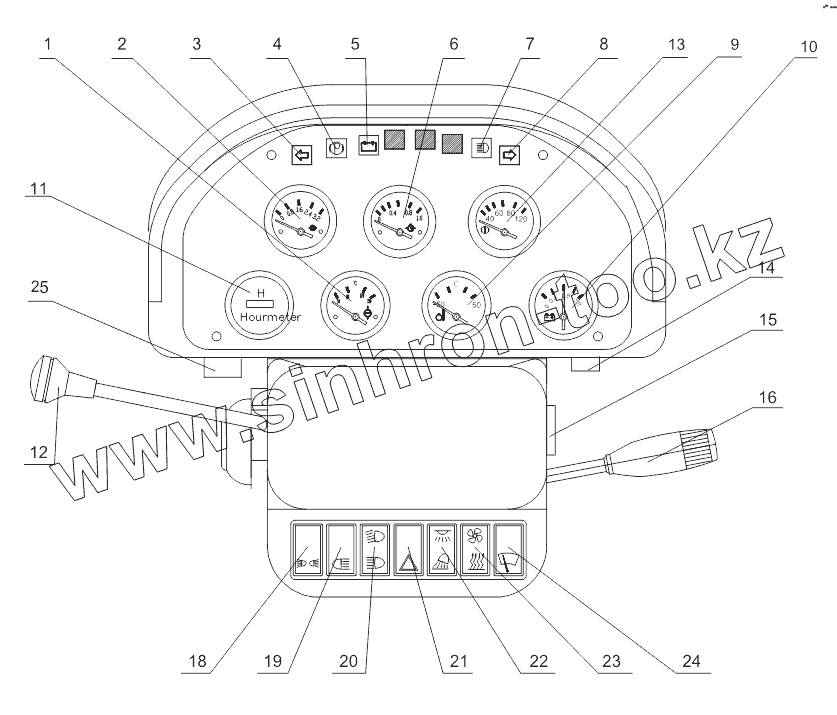

Позиция на иллюстрации
Заводской номер детали
Название детали
1
D2121-14001
Oil temperature meter, torque converter
2
D2163-03200
Shift gears pressure meter
3
D2461-00000
Left steering indicator light
4
D2464-00000
Brake indicator light
5
D2462-00000
Power indicator light
6
D2103-01000
Oil pressure meter for engine
7
D2460-00000
Far indicator light for headlight
8
D2463-00000
Right steering indicator light
9
D2113-12000
Water temperature for engine
10
D2140-03200
Вольтметр
11
D2171-00000
Man-hour meter
12
D2910-23500
Control flexible shaft
13
D2190-01200
Air pressure meter
14
D2500-41202
Start switch
15
D2763-02002
Fuse box
16
D2560-00002
Combined switch
18
D2546-00201
Instrument lamp and small lamp switch
19
D2545-00201
Rear lamp switch
20
D2544-14801
Far and near beam for front lamp
21
D2510-05002
Critical signal lamp switch
22
D2547-14801
Top lamp and work lamp switch
23
D2541-14801
Fan and warm braw switch
24
D2540-04701
Wiper switch
25
D2780-00002
Reserve power
