Каталог запасных частей к технике: Shantui SL-50W. GEARBOX PRESSURE VALVE PART 4WG180

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SD16 (2010) SD16 (вариант) (2014) SD16E (2010) SD16L (2010) SD22 (вариант) (2013) SD32 (вариант) (2011) Shantui SD10YE (2015) Shantui SD16 (2008) Shantui SD22 (2008) Shantui SD23 (2003) Shantui SD23 (вариант) (2013) Shantui SD32 (2005) Shantui SD42-3 (2008) Shantui SG16-3 (2014) Shantui SG18-3 (2014) SL-30W (2010) SL-50W (2013) Каток SR12-5 (2013) Каток SR14M-2 (2012) Каток SR16 (2014) Каток SR18 (2011) Каток SR18M (2010) Каток SR20M (2014) Погрузчик SF15, SF18 (2010) Погрузчик SF30 (2013) Погрузчик SF45T (2013) Погрузчик SF50/SF60/SF70 (2013) Погрузчик вил. 2-2.5t (2010)

Схема > Не выбрано DRIVE SYSTEM DRIVE SYSTEM TORQUE CONVERTER CONNECTION TORQUE CONVERTER CONNECTION (FOR CUMMINS 6CTA8.3-C215 ENGINE) TORQUE CONVERTER CONNECTION (FOR WEICHAI WD10G220E21 ENGINE) TORQUE CONVERTER CONNECTION (FOR SHANGCHAI SC11CB220G2B1 ENGINE) TORQUE CONVERTER CONNECTION (FOR CUMMINS 6CTA8.3-C215 ENGINE) HYDRAULIC TORQUE CONVERTER (370801) HYDRAULIC TORQUE CONVERTER YJSW315-6 HYDRAULIC TORQUE CONVERTER 4WY315A GEARBOX CASE PART (HANGZHOU ADVANCE) GEARBOX ONE SHAFT ASSY (HANGZHOU ADVANCE) GEARBOX TWO SHAFT AND PLANET LINE PART (HANGZHOU ADVANCE) GEARBOX TWO SHAFT ASSY. (HANGZHOU ADVANCE) GEARBOX THREE SHAFT ASSY. (HANGZHOU ADVANCE) GEARBOX FOUR SHAFT ASSY. (HANGZHOU ADVANCE) GEARBOX GEAR PUMP (HANGZHOU ADVANCE) GEARBOX OIL SUMP TANK (HANGZHOU ADVANCE) GEARBOX ASSEMBLY 1 (370801) GEARBOX ASSEMBLY 2 (370801) GEARBOX ASSEMBLY 3 (370801) GEARBOX CASE PART 4WG180 GEARBOX OUTPUT PART 4WG180 GEARBOX CONTROL PART 4WG180 GEARBOX IDLER PART 4WG180 GEARBOX PARK BRAKE PART 4WG180 GEARBOX PRESSURE VALVE PART 4WG180 GEARBOX OIL SUCTION PIPE PART 4WG180 GEARBOX SENSOR PART 4WG180 GEARBOX ENGINE CONNECT PART 4WG180 GEARBOX OIL FILLING PIPE PART 4WG180 Gearbox Oil-filter Part 4WG180 KV+K1 CLUTCH PART 4WG180 KR+K2 CLUTCH PART 4WG180 K3+K4 CLUTCH PART 4WG180 GEARBOX PTO PART 1 4WG180 GEARBOX PTO PART 2 4WG180 GEARBOX CONTROL VALVE PART 4WG180 GEARBOX INPUT PART 4WG180 GEARSHIFT CONTROL SYSTEM DRIVE AXLE ASSEMBLY MAIN TRANSMISSION ASSEMBLY PLANETARY ASSEMBLY ZL50M BRAKE ASSEMBLY ZL50M DRIVE AXLE ASSEMBLY (370801) MAIN TRANSMISSION ASSEMBLY (370801) PLANETARY ASSEMBLY (370801) BRAKE ASSEMBLY (370801) FRONT AXLE ASSEMBLY C216BRA REAR AXLE ASSEMBLY C216BSA HOUSING ASSEMBLY CARRIER ASSEMBLY Diff. Assembly PLANETARY ASSEMBLY BRAKE ASSEMBLY TYRE AND RIM ASSEMBLY FRONT AXLE BRAKE PIPING HAND BRAKE PIPING REAR AXLE BRAKE PIPING AIR BOOSTING PUMP AIR BOOSTING PUMP XM60 AIR CYLINDER ASSEMBLY TRANSMISSION HYDRAULIC SYSTEM TRANSMISSION HYDRAULIC SYSTEM SL50W-3 FILTER ASSEMBLY (XIN XIANG MEILIN) FILTER ASSEMBLY (XUZHOU XINXING) STEERING CYLINDER PIPING STEERING DEVICE PIPING STEERING PUMP/UNLOADING VALVE PIPING SL50W STEERING PUMP/PRIORITY VALVE PIPING SL50W-2 STEERING PUMP/PRIORITY VALVE PIPING SL50W-3 STEERING CYLINDER (370901) PRIORITY UNLOADING VALVE TIPPING CYLINDER PIPING LIFTING CYLINDER PIPING LIFTING CYLINDER PIPING (PILOT) MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W-2 MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W-3 MULTIPLE UNIT VALVE/WORK PUMP PIPING (PILOT) SL50W-3 PILOT VALVE PIPING TIPPING CYLINDER (370901) LIFTING CYLINDER (370901) MULTIPLE UNIT VALVE HDF32 MULTIPLE UNIT VALVE JDF32 MULTIPLE UNIT VALVE KF32 SINGLE HANDLE PILOT VALVE DOUBLE HANDLE PILOT VALVE DJS HYDRAULIC CONTROL MULTIPLE UNIT VALVE D32 HYDRAULIC CONTROL MULTIPLE UNIT VALVE YDF3 WORK VALVE CONTROL SYSTEM ENGINE TANK ASSEMBLY ENGINE DEVICE (FOR WEICHAI ENGINE) ENGINE DEVICE (FOR SHANGCHAI ENGINE) SC11CB220G2B1 ENGINE DEVICE (FOR CUMMINS ENGINE) 6CTA8.3-C215 FUEL TANK ASSEMBLY WORK DEVICE ASSEMBLY BUCKET ASSEMBLY FRONT FRAME ASSEMBLY REAR FRAME ASSEMBLY CAB ASSEMBLY CAB ASSEMBLY SDC DECORATION ASSEMBLY SDC BODYWORK COLLOCATION FLOOR ASSEMBLY FRONT HOOD REAR HOOD ENGINE HOOD ASSEMBLY AIR CONDITIONER SYSTEM (FOR WEICHAI ENGINE) AIR CONDITIONER SYSTEM (FOR SHANGCHAI ENGINE SC11CB220G2B1) AIR CONDITIONER SYSTEM (FOR CUMMINS ENGINE 6CTA8.3-C215) WARM BRAW SYSTEM (FOR WEICHAI ENGINE) WARM BRAW SYSTEM (FOR SHANGCHAI ENGINE SC11CB220G2B1) WARM BRAW SYSTEM (FOR CUMMINS ENGINE 6CTA8.3-C215) ELECTRICAL SYSTEM ELECTRICAL SYSTEM SL50W-3 INSTRUMENT DESK (Xuzhou SIDA) INSTRUMENT DESK (Jiangsu HUACHENG)

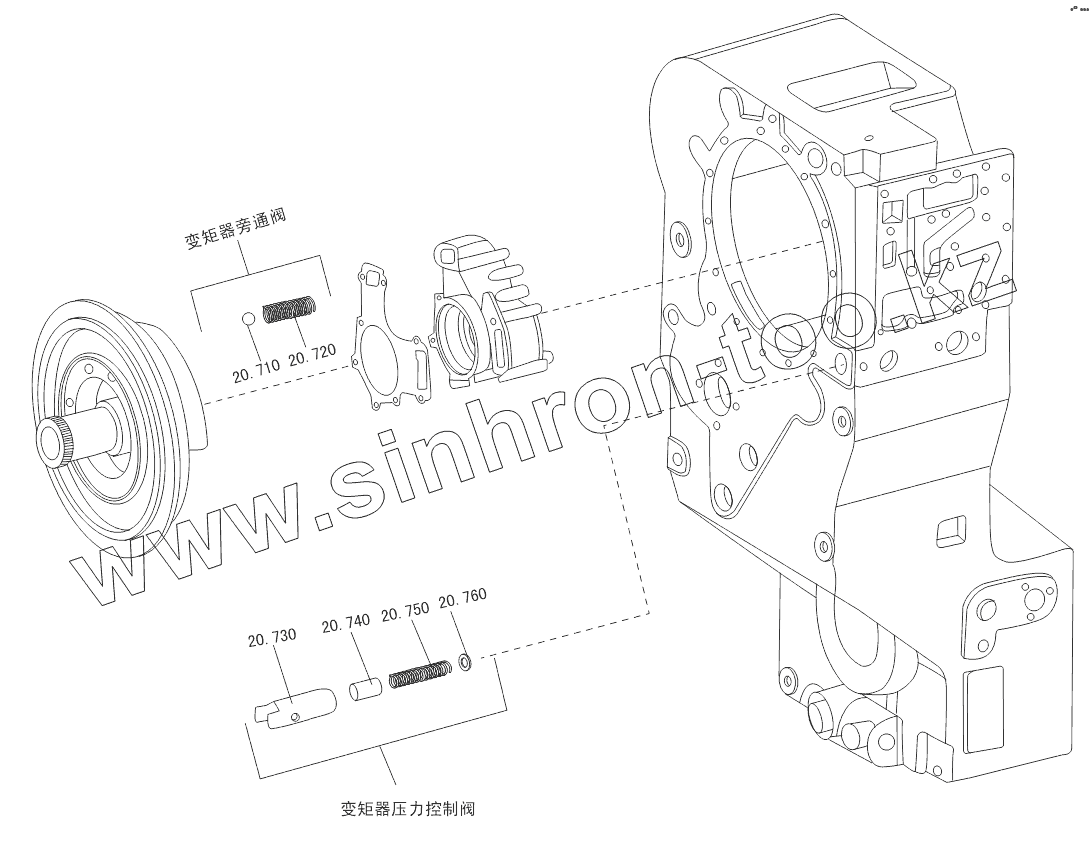

710

720

730

740

750

760

Позиция на иллюстрации	Заводской номер детали		Название детали
710	635460029		Steel Ball
720	732041352		Pressure Spring
730	4644320042		Vavle Poacket
740	4644320034		Spool
750	732042251		Pressure Spring
760	630001017		Washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
