GEARBOX OIL SUCTION PIPE PART 4WG180

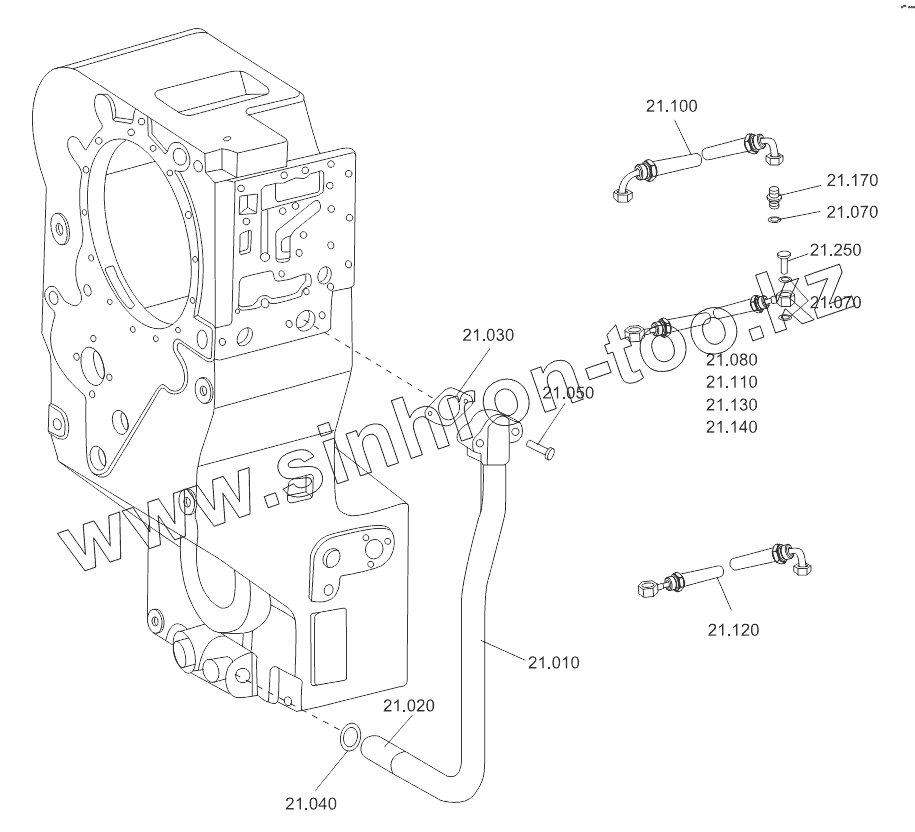

Каталог запасных частей к технике: Shantui SL-50W. GEARBOX OIL SUCTION PIPE PART 4WG180
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
SD16 (2010)
SD16 (вариант) (2014)
SD16E (2010)
SD16L (2010)
SD22 (вариант) (2013)
SD32 (вариант) (2011)
Shantui SD10YE (2015)
Shantui SD16 (2008)
Shantui SD22 (2008)
Shantui SD23 (2003)
Shantui SD23 (вариант) (2013)
Shantui SD32 (2005)
Shantui SD42-3 (2008)
Shantui SG16-3 (2014)
Shantui SG18-3 (2014)
SL-30W (2010)
SL-50W (2013)
Каток SR12-5 (2013)
Каток SR14M-2 (2012)
Каток SR16 (2014)
Каток SR18 (2011)
Каток SR18M (2010)
Каток SR20M (2014)
Погрузчик SF15, SF18 (2010)
Погрузчик SF30 (2013)
Погрузчик SF45T (2013)
Погрузчик SF50/SF60/SF70 (2013)
Погрузчик вил. 2-2.5t (2010)
Схема
>
Не выбрано
DRIVE SYSTEM
DRIVE SYSTEM
TORQUE CONVERTER CONNECTION
TORQUE CONVERTER CONNECTION (FOR CUMMINS 6CTA8.3-C215 ENGINE)
TORQUE CONVERTER CONNECTION (FOR WEICHAI WD10G220E21 ENGINE)
TORQUE CONVERTER CONNECTION (FOR SHANGCHAI SC11CB220G2B1 ENGINE)
TORQUE CONVERTER CONNECTION (FOR CUMMINS 6CTA8.3-C215 ENGINE)
HYDRAULIC TORQUE CONVERTER (370801)
HYDRAULIC TORQUE CONVERTER YJSW315-6
HYDRAULIC TORQUE CONVERTER 4WY315A
GEARBOX CASE PART (HANGZHOU ADVANCE)
GEARBOX ONE SHAFT ASSY (HANGZHOU ADVANCE)
GEARBOX TWO SHAFT AND PLANET LINE PART (HANGZHOU ADVANCE)
GEARBOX TWO SHAFT ASSY. (HANGZHOU ADVANCE)
GEARBOX THREE SHAFT ASSY. (HANGZHOU ADVANCE)
GEARBOX FOUR SHAFT ASSY. (HANGZHOU ADVANCE)
GEARBOX GEAR PUMP (HANGZHOU ADVANCE)
GEARBOX OIL SUMP TANK (HANGZHOU ADVANCE)
GEARBOX ASSEMBLY 1 (370801)
GEARBOX ASSEMBLY 2 (370801)
GEARBOX ASSEMBLY 3 (370801)
GEARBOX CASE PART 4WG180
GEARBOX OUTPUT PART 4WG180
GEARBOX CONTROL PART 4WG180
GEARBOX IDLER PART 4WG180
GEARBOX PARK BRAKE PART 4WG180
GEARBOX PRESSURE VALVE PART 4WG180
GEARBOX OIL SUCTION PIPE PART 4WG180
GEARBOX SENSOR PART 4WG180
GEARBOX ENGINE CONNECT PART 4WG180
GEARBOX OIL FILLING PIPE PART 4WG180
Gearbox Oil-filter Part 4WG180
KV+K1 CLUTCH PART 4WG180
KR+K2 CLUTCH PART 4WG180
K3+K4 CLUTCH PART 4WG180
GEARBOX PTO PART 1 4WG180
GEARBOX PTO PART 2 4WG180
GEARBOX CONTROL VALVE PART 4WG180
GEARBOX INPUT PART 4WG180
GEARSHIFT CONTROL SYSTEM
DRIVE AXLE ASSEMBLY
MAIN TRANSMISSION ASSEMBLY
PLANETARY ASSEMBLY ZL50M
BRAKE ASSEMBLY ZL50M
DRIVE AXLE ASSEMBLY (370801)
MAIN TRANSMISSION ASSEMBLY (370801)
PLANETARY ASSEMBLY (370801)
BRAKE ASSEMBLY (370801)
FRONT AXLE ASSEMBLY C216BRA
REAR AXLE ASSEMBLY C216BSA
HOUSING ASSEMBLY
CARRIER ASSEMBLY
Diff. Assembly
PLANETARY ASSEMBLY
BRAKE ASSEMBLY
TYRE AND RIM ASSEMBLY
FRONT AXLE BRAKE PIPING
HAND BRAKE PIPING
REAR AXLE BRAKE PIPING
AIR BOOSTING PUMP
AIR BOOSTING PUMP XM60
AIR CYLINDER ASSEMBLY
TRANSMISSION HYDRAULIC SYSTEM
TRANSMISSION HYDRAULIC SYSTEM SL50W-3
FILTER ASSEMBLY (XIN XIANG MEILIN)
FILTER ASSEMBLY (XUZHOU XINXING)
STEERING CYLINDER PIPING
STEERING DEVICE PIPING
STEERING PUMP/UNLOADING VALVE PIPING SL50W
STEERING PUMP/PRIORITY VALVE PIPING SL50W-2
STEERING PUMP/PRIORITY VALVE PIPING SL50W-3
STEERING CYLINDER (370901)
PRIORITY UNLOADING VALVE
TIPPING CYLINDER PIPING
LIFTING CYLINDER PIPING
LIFTING CYLINDER PIPING (PILOT)
MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W
MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W-2
MULTIPLE UNIT VALVE/WORK PUMP PIPING SL50W-3
MULTIPLE UNIT VALVE/WORK PUMP PIPING (PILOT) SL50W-3
PILOT VALVE PIPING
TIPPING CYLINDER (370901)
LIFTING CYLINDER (370901)
MULTIPLE UNIT VALVE HDF32
MULTIPLE UNIT VALVE JDF32
MULTIPLE UNIT VALVE KF32
SINGLE HANDLE PILOT VALVE
DOUBLE HANDLE PILOT VALVE DJS
HYDRAULIC CONTROL MULTIPLE UNIT VALVE D32
HYDRAULIC CONTROL MULTIPLE UNIT VALVE YDF3
WORK VALVE CONTROL SYSTEM
ENGINE TANK ASSEMBLY
ENGINE DEVICE (FOR WEICHAI ENGINE)
ENGINE DEVICE (FOR SHANGCHAI ENGINE) SC11CB220G2B1
ENGINE DEVICE (FOR CUMMINS ENGINE) 6CTA8.3-C215
FUEL TANK ASSEMBLY
WORK DEVICE ASSEMBLY
BUCKET ASSEMBLY
FRONT FRAME ASSEMBLY
REAR FRAME ASSEMBLY
CAB ASSEMBLY
CAB ASSEMBLY SDC
DECORATION ASSEMBLY SDC
BODYWORK COLLOCATION
FLOOR ASSEMBLY
FRONT HOOD
REAR HOOD
ENGINE HOOD ASSEMBLY
AIR CONDITIONER SYSTEM (FOR WEICHAI ENGINE)
AIR CONDITIONER SYSTEM (FOR SHANGCHAI ENGINE SC11CB220G2B1)
AIR CONDITIONER SYSTEM (FOR CUMMINS ENGINE 6CTA8.3-C215)
WARM BRAW SYSTEM (FOR WEICHAI ENGINE)
WARM BRAW SYSTEM (FOR SHANGCHAI ENGINE SC11CB220G2B1)
WARM BRAW SYSTEM (FOR CUMMINS ENGINE 6CTA8.3-C215)
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM SL50W-3
INSTRUMENT DESK (Xuzhou SIDA)
INSTRUMENT DESK (Jiangsu HUACHENG)
10
20
30
50
70
70
80
100
110
120
130
140
170
250
Позиция на иллюстрации
Заводской номер детали
Название детали
10
4644221877H
Oil Suction Pipe
20
4644221821
Oil Suction Pipe
30
4644321244
Paper Washer
50
636010089
Bolt
70
634801050
Copper Washer
80
501204425
Tube
100
501204674
Tube
110
501204425
Tube
120
501204422
Tube
130
501204427
Tube
140
501204427
Tube
170
637842509
Pipe Junction
250
737835153
Hollowness Bolt
320
4642331216
Paper Washer
614
636101031
Bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
