Каталог запасных частей к технике: Shantui SL-50W. GEARBOX ASSEMBLY 3 (370801)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
40
41
41
41
41
42
42
43
43
43
43
44
44
45
46
47
48
49
50
51

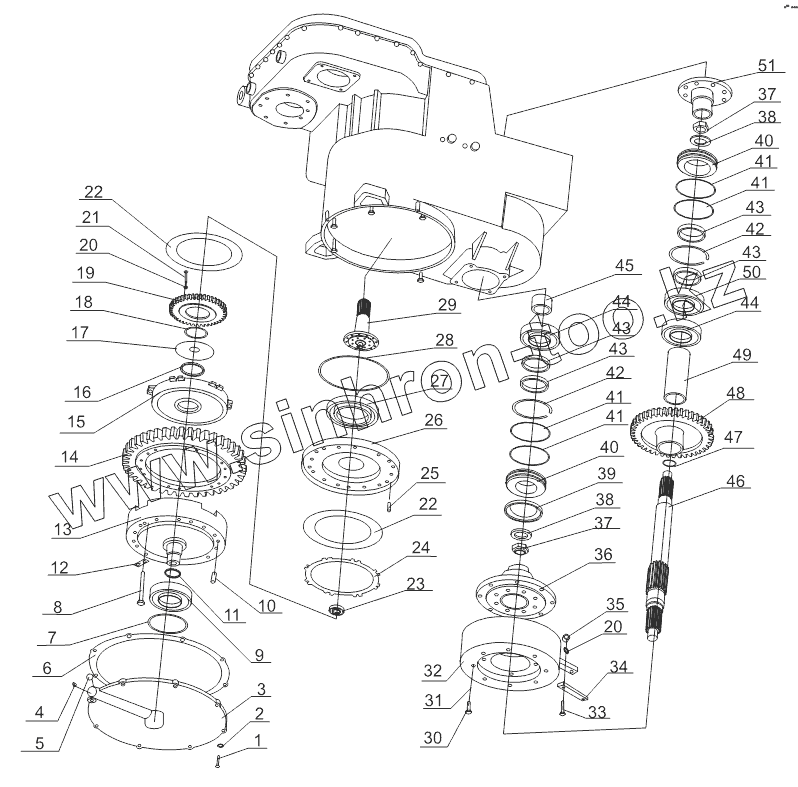

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 01016-81030 | Bolt | |
| 2 | 01602-11030 | Washer | |
| 3 | BD15-00009 | Cover | |
| 4 | 07042-00211 | Заглушка | |
| 5 | 07000-72020 | O-ring | |
| 6 | BD15-00008 | Gasket | |
| 7 | BD15-00014/15/16 | Adjusting gasket | |
| 8 | GB5785 | Bolt | |
| 9 | GB276 | Bearing | |
| 10 | 04020-01030 | Pin | |
| 11 | BD15-01004 | Seal | |
| 12 | BD15-03004 | Lock shim | |
| 13 | BD15-03008 | Cylinder body | |
| 14 | BD15-03009A | Mid-shaft output gear | |
| 15 | BD15-03006 | Piston | |
| 16 | BD15-01003 | Seal | |
| 17 | BD15-03005 | Spring | |
| 18 | 04064-06525 | Кольцо стопорное | |
| 19 | BD15-03011 | Ring gear | |
| 20 | 01602-11030 | Washer | |
| 21 | 01010-81020 | Bolt | |
| 22 | BD15-03100 | Driving disc | |
| 23 | GB2766204 | Bearing | |
| 24 | BD15-03003 | Passive disc | |
| 25 | BD15-03010 | Pin | |
| 26 | BD15-03002 | Pressing pan | |
| 27 | GB2766022 | Bearing | |
| 28 | BD15-03007 | Seal | |
| 29 | BD15-03001 | Shaft | |
| 30 | GB5785 | Bolt | |
| 31 | 01602-11236 | Washer ,spring | |
| 32 | BD15-12000 | Brake assembly | |
| 33 | 01010-81035 | Болт | |
| 34 | BD15-00024 | Brake joint | |
| 35 | 01580-01008 | Гайка | |
| 36 | BD15-04009 | Flange | |
| 37 | BD15-04001 | Lock nut | |
| 38 | BD15-04010 | Press plate | |
| 39 | BD15-04008 | Security cover | |
| 40 | BD15-04003 | Seal base | |
| 41 | 07000-05120 | O-ring | |
| 42 | GB893.1 | Circlip | |
| 43 | 07012-00070 | Seal | |
| 44 | GB276 | Bearing | |
| 45 | BD15-04007 | Shaft sleeve | |
| 46 | BD15-04004 | Output shaft | |
| 47 | GB3452.3 | O-ring | |
| 48 | BD15-04006A | Output gear | |
| 49 | BD15-04005 | Separate cover | |
| 50 | GB2766410 | Bearing | |
| 51 | BD15-04002 | Flange |
