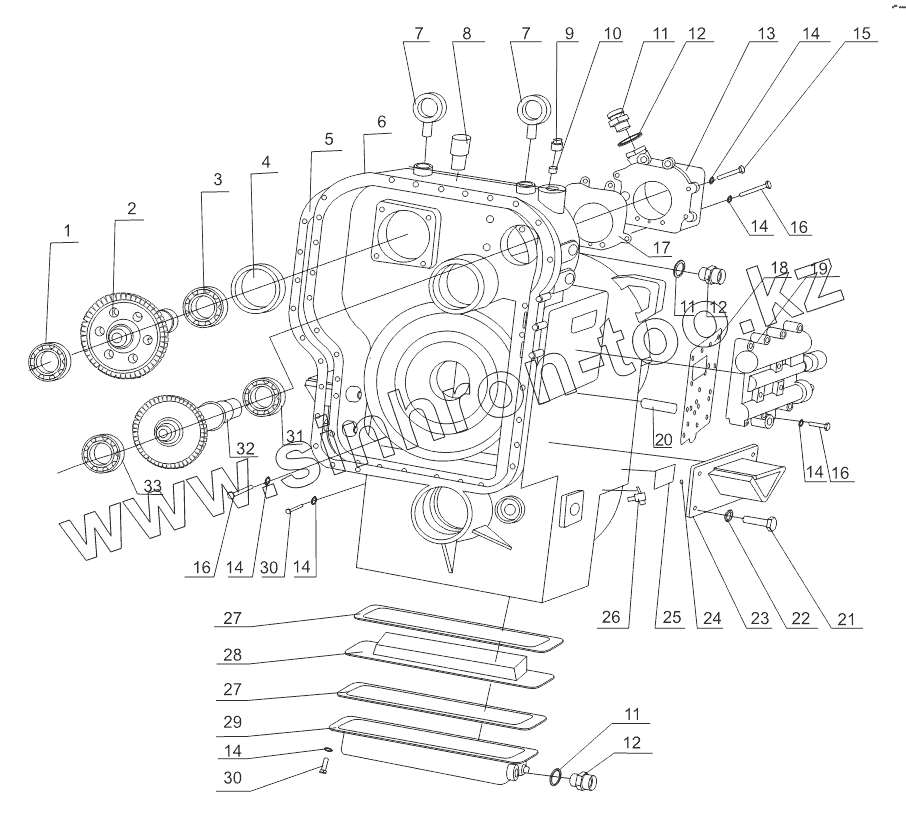

Каталог запасных частей к технике: Shantui SL-50W. GEARBOX ASSEMBLY 1 (370801)
1
2
3
4
5
6
7
7
8
9
10
11
11
11
12
12
12
13
14
14
14
14
14
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB2766210NR | Bearing | |
| 2 | BD15-00011A | Gear | |
| 2 | BD15-00012B | Gear | |
| 3 | GB2766211 | Bearing | |
| 4 | BD15-00013A | Bearing base | |
| 5 | BD15-00010 | Gasket | |
| 6 | BD15-00005A | Housing | |
| 7 | 04530-12035 | Screw | |
| 8 | BD15-07000 | Breather assembly | |
| 9 | YB315Z5-15 | Plug | |
| 10 | BD15-00017 | Pin | |
| 11 | YB315Z5-14S | Pipe connector | |
| 12 | YB315Z5-09 | Combined washer | |
| 13 | BD15-11000 | Transmission pump | |
| 14 | 01602-11030 | Washer | |
| 15 | 01010-81055 | Bolt | |
| 16 | 01010-81070 | Bolt | |
| 17 | BD15-00007 | Gasket | |
| 18 | BD15-00018 | Gasket | |
| 19 | BD15-09000 | Transmission control valve | |
| 20 | BD15-00019 | Pin | |
| 21 | 01010-81840 | Bolt | |
| 22 | 01602-11854 | Washer | |
| 23 | BD15-10000 | Support | |
| 24 | 04418-03060 | Заклепка | |
| 25 | BD15-00025A | Nameplate | |
| 26 | 1305C-010 | Oil Plug | |
| 27 | BD15-06004 | Gasket | |
| 28 | BD15-06100 | Filter module | |
| 29 | BD15-06200 | Crust module | |
| 30 | 01010-81030 | Болт | |
| 31 | GB2766012 | Bearing | |
| 32 | BD15-00006A | Shaft gear | |
| 33 | GB2766210NR | Bearing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
