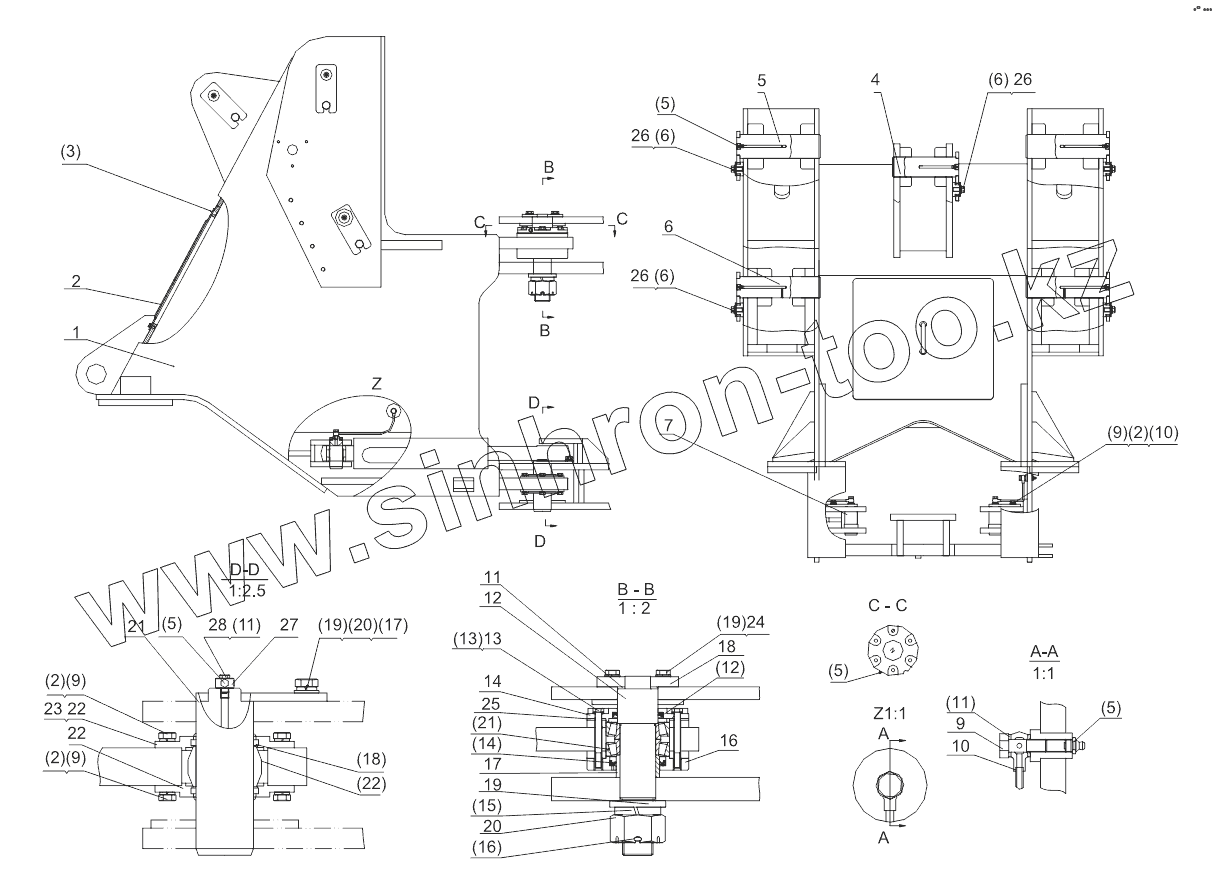

Каталог запасных частей к технике: Shantui SL-50W. FRONT FRAME ASSEMBLY
1
1
2
4
5
6
7
9
10
11
12
13
14
16
17
18
19
20
21
22
22
23
24
25
26
26
26
27
28
(2)
(2)
(2)
(3)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(9)
(9)
(9)
(10)
(11)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(19)
(20)
(21)
(22)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL50FIII(A)-09100A | Front frame | |
| 1 | ZL50G2(A)-09100A | Front frame | |
| 2 | ZL50G2-09001A | Cover board | |
| 4 | ZL50G2-09300D | R/pin assy,tipping cylinder | |
| 5 | ZL50G2-09400D | R/pin assy,movable arm | |
| 6 | ZL50G2-09500D | R/pin assy,lifting cylinder | |
| 7 | ZL50G2-09600 | F/pin assy,steering cylinder | |
| 9 | ZL50G2-09003 | Link bolt | |
| 10 | ZL50G2-09700A | Lubricating pipe | |
| 11 | ZL50FIII(A)-09004 | Adjusting gasket | |
| 12 | ZL50FIII(A)-09005 | Upper link shaft | |
| 13 | ZL50FIII(A)-09006 | Washer | |
| 14 | ZL50FIII(A)-09007 | Bearing cover | |
| 16 | ZL50FIII(A)-09009 | Bearing base | |
| 17 | ZL50FIII(A)-09010 | Sleeve | |
| 18 | ZL50FIII(A)-09011 | Press board | |
| 19 | ZL50G2-09007A | Pan | |
| 20 | ZL50G2-09008 | Slotted nut | |
| 21 | ZL50G2-09900 | Lower jointed shaft assy | |
| 22 | ZL50G2-09009 | Lower jointed bearing cover | |
| 23 | ZL50G2-09010 | Pad | |
| 24 | ZL50FIII(A)-09016 | Washer | |
| 25 | ZL50FIII(A)-09017 | Adjusting gasket | |
| 26 | DG953-11005 | Washer | |
| 27 | DG930A-09005 | Base | |
| 28 | DG930A-09006 | Link bolt | |
| (2) | GB93 | Washer | |
| (3) | GB5787 | Bolt | |
| (5) | GB1152 | Oil cup | |
| (6) | GB5783 | Bolt | |
| (9) | GB5783 | Bolt | |
| (10) | GB95 | Washer | |
| (11) | JB982 | Combined washer | |
| (12) | GB9877.1 | Seal ring | |
| (13) | GB5782 | Bolt | |
| (14) | GB9877.1 | Seal ring | |
| (15) | GB93 | Washer | |
| (16) | GB91 | Cotter pin | |
| (17) | GB95 | Washer | |
| (18) | SJM03-1 | Dust ring | |
| (19) | GB5783 | Bolt | |
| (20) | GB93 | Washer | |
| (21) | GB297 | Bearing | |
| (22) | GB304.5 | Joint bearing |
