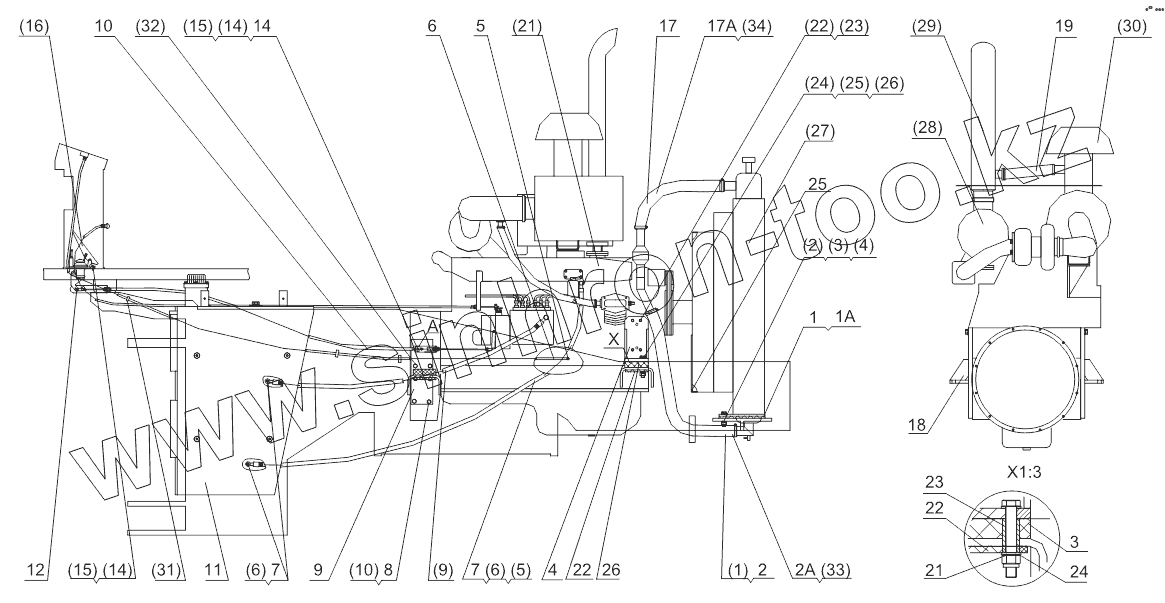

Каталог запасных частей к технике: Shantui SL-50W. ENGINE DEVICE (FOR WEICHAI ENGINE)
1
1A
2
2A
3
4
5
6
7
7
8
9
10
11
14
17
17A
18
19
21
22
22
23
24
25
26
(1)
(2)
(3)
(4)
(5)
(5)
(6)
(6)
(9)
(9)
(10)
(14)
(14)
(15)
(15)
(16)
(21)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL50G2-01002 | Water tank pad | |
| 1A | DG956WII-01001 | Water tank pad | |
| 2 | ZL50G3-01002 | Engine inlet pipe | |
| 2A | DG958-01003B | Engine inlet pipe | |
| 3 | ZL50G2-01004 | Engine shock pad | |
| 4 | ZL50G2-01005B | Engine front bracket | |
| 5 | ZL50G2-01006 | Pipe joint | |
| 6 | DG956WI-01006 | Manometry hose | |
| 7 | ZL50G2-01007 | Joint bolt | |
| 8 | ZL50G2-01013 | Bolt | |
| 9 | ZL50G3-01009A | Engine left-front bracket | |
| 10 | ZL50G2-01009 | Throttle flexible shaft | |
| 11 | DG957-01200 | Fuel tank assy | |
| 14 | ZL50G3-01013 | Throttle bracket | |
| 17 | ZL50G2-01015 | Engine outlet pipe | |
| 17A | DG958-01015B | Engine outlet pipe | |
| 18 | ZL50G3-01017A | Engine right-rear bracket | |
| 19 | ZL50G3-01018 | Connection hose | |
| 21 | ZL50G2-01023 | Washer | |
| 22 | ZL50G2-01024 | Engine shock pad | |
| 23 | ZL50G2-01025 | Support sleeve | |
| 24 | ZL50G3-01025 | Washer | |
| 25 | DG958-01030 | Baffle | |
| 26 | ZL50G3-01027 | Engine shock pad | |
| (1) | JB3618.1 | Clamp | |
| (2) | GB5782 | Bolt | |
| (3) | GB95 | Washer | |
| (4) | GB889 | Nut | |
| (5) | GB3452 | Oil transfer hose | |
| (5) | GB3452 | Oil transfer hose | |
| (6) | JB982 | Combined washer | |
| (9) | GB3452 | Oil transfer hose | |
| (9) | GB3452 | Oil transfer hose | |
| (10) | GB93 | Washer | |
| (14) | GB5781 | Bolt | |
| (15) | GB93 | Washer | |
| (16) | XZ(QZ)1129001 | Throttle control valve | |
| (21) | WD10G220E23 | Engine | |
| (21) | WD10G220E21 | Engine | |
| (22) | GB5783 | Bolt | |
| (23) | GB93 | Washer | |
| (24) | GB5782 | Bolt | |
| (25) | GB95 | Washer | |
| (26) | GB889 | Nut | |
| (27) | DG50B | Oil radiator | |
| (27) | ZL60GT-1C | Radiator | |
| (28) | WD10G220E23-xsq | Muffler | |
| (29) | WD10G220E23-pqg | Exhaust pipe | |
| (30) | WD10G220E23-klq | Air filter | |
| (31) | D2900-20000 | Clamp | |
| (32) | GB73 | Screw | |
| (33) | JB3618.1 | Clamp | |
| (34) | JB3618.1 | Clamp |
