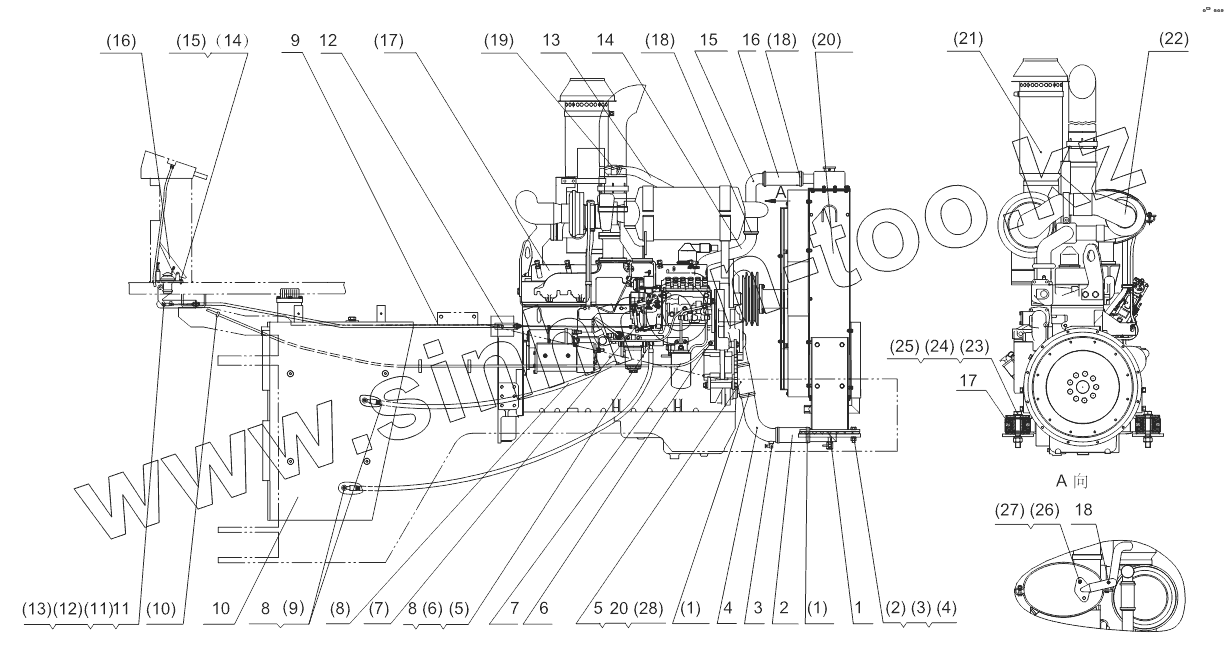

Каталог запасных частей к технике: Shantui SL-50W. ENGINE DEVICE (FOR SHANGCHAI ENGINE) SC11CB220G2B1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
20
(1)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(17)
(18)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG956WII-01001 | Water tank pad | |
| 2 | DG956A-01002 | Engine inlet hose | |
| 3 | DG956A-01003 | Water release switch | |
| 4 | DG956A-01004 | Suction water steel pipe | |
| 5 | DG956A-01005 | Suction water steel pipe | |
| 6 | ZL50G2-01006 | Pipe joint | |
| 7 | DG956WI-01006 | Manometry hose | |
| 8 | ZL50G2-01007 | Joint bolt | |
| 9 | DG956A-01009 | Throttle flexible shaft | |
| 10 | DG957-01200 | Fuel tank assy | |
| 11 | ZL50G2-01010 | Connect fork | |
| 12 | DG956A-01012 | Throttle bracket | |
| 13 | DG956A-01013 | Offgas injection hose | |
| 14 | DG956A-01014 | Engine outlet pipe | |
| 15 | DG956A-01015 | Engine outlet steel pipe | |
| 16 | DG956A-01016 | Engine outlet pipe | |
| 17 | DG956A-01017 | Engine damp pad | |
| 18 | DG956A-01018 | Offgas injection steel pipe assembly | |
| 20 | DG956WII-01021 | Connection tube | |
| (1) | SC11CB220G2B1-dkg | Big clamp | |
| (2) | GB5782 | Bolt | |
| (3) | GB9514 | Washer | |
| (4) | GB889M14 | Nut | |
| (5) | GB345210A-A-2000 | Oil transfer hose | |
| (6) | SC11CB220G2B1-tdq | Copper washer | |
| (7) | GB6170 | Nut | |
| (8) | D00-241-01+B | Oil transfer hose | |
| (9) | JB982 | Combined washer | |
| (10) | D2900-20000 | Clamp | |
| (11) | GB882 | Pin | |
| (12) | GB91 | Cotter pin | |
| (13) | GB95 | Washer | |
| (14) | GB5781 | Bolt | |
| (15) | GB93 | Washer | |
| (16) | XZ(QZ)1129001 | Throttle control valve | |
| (17) | SC11CB220G2B1 | Engine | |
| (17) | SC11CB220G2B1 | Engine | |
| (18) | SC11CB220G2B1-xkg | Smale clamp | |
| (19) | SC11CB220G2B1-gkg | Pipe clamp | |
| (20) | ZL60GT-1C | Radiator | |
| (21) | SC11CB220G2B1-klq | Air filter | |
| (22) | SC11CB220G2B1-xsq | Muffler | |
| (23) | GB5782 | Bolt | |
| (24) | GB93 | Washer | |
| (25) | GB6170 | Nut | |
| (26) | GB5783 | Bolt | |
| (27) | GB93 | Washer | |
| (28) | JB3618.1 | Clamp |
