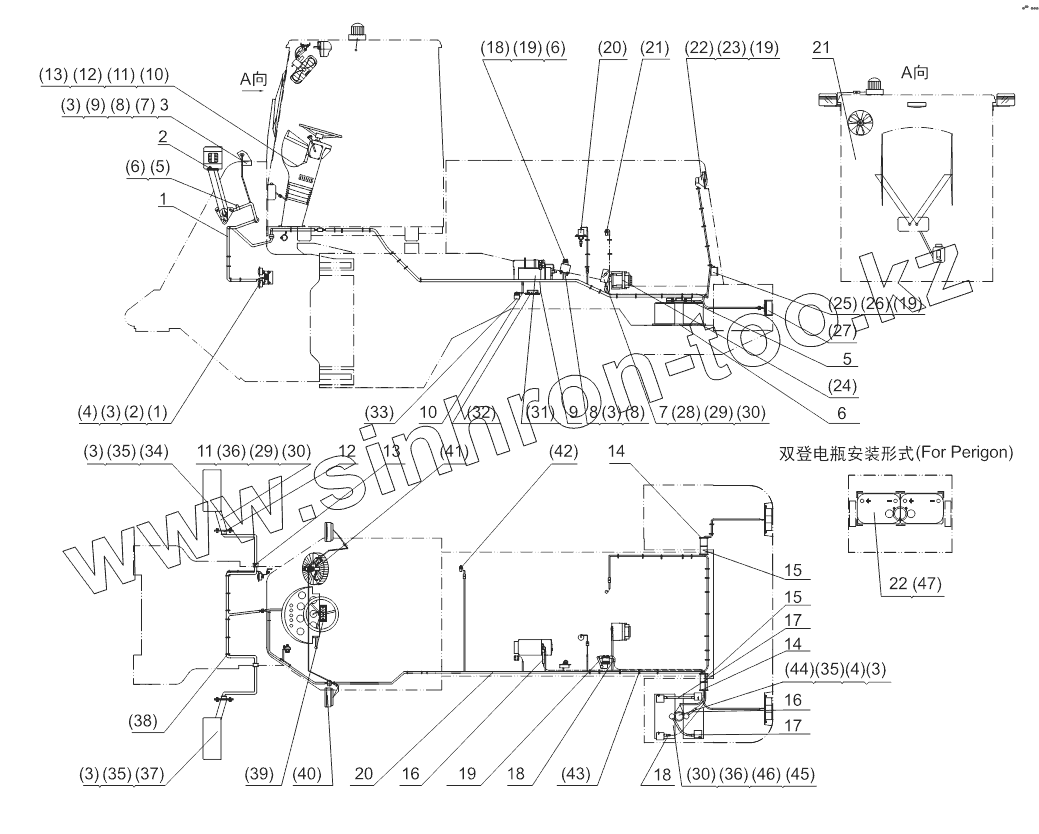

Каталог запасных частей к технике: Shantui SL-50W. ELECTRICAL SYSTEM
1
2
3
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
16
16
17
17
18
18
19
20
20
20
21
22
(1)
(2)
(3)
(3)
(3)
(3)
(3)
(3)
(4)
(4)
(5)
(6)
(6)
(7)
(8)
(8)
(9)
(10)
(10)
(10)
(10)
(11)
(12)
(13)
(18)
(19)
(19)
(19)
(20)
(20)
(20)
(21)
(21)
(22)
(23)
(24)
(24)
(24)
(25)
(26)
(27)
(28)
(29)
(29)
(30)
(30)
(30)
(31)
(31)
(31)
(32)
(33)
(34)
(35)
(35)
(35)
(36)
(36)
(37)
(38)
(39)
(40)
(41)
(42)
(43)
(44)
(45)
(46)
(47)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG966-15006 | Front wiring harness | |
| 2 | ZL18-15022 | Insulation covering 3 | |
| 3 | DG966-15022 | Protective board | |
| 5 | ZL50G2-15025 | Rubber board | |
| 6 | ZL50G2-15001 | Rubber board | |
| 7 | ZL50G3-15019 | Mounting board to power switch | |
| 8 | ZL50G2-15023 | Mounting board | |
| 9 | DG956WIV-15020 | Preheating wiring harness 1 | |
| 10 | DG956WIV-15021 | Preheating wiring harness 2 | |
| 11 | ZL50G2-A15008-R | Lamp frame assy | |
| 11 | ZL50G2-A15008-L | Lamp frame assy | |
| 12 | ZL18-15021 | Insulation covering 2 | |
| 13 | ZL50G2-15013 | Insulation covering 1 | |
| 14 | ZL50G2-15024 | Insulation covering | |
| 15 | ZL50G2-15026 | Rubber protective covering | |
| 16 | DG956WII-15003 | Starter power cord | |
| 16 | DG956WI-15003 | Starter power cord | |
| 17 | ZL50G2-15010 | Battery connecting wire | |
| 18 | ZL50G2-15011 | Battery ground wire | |
| 19 | ZL50G2-15012 | Ground wire | |
| 20 | DG956WI-15004 | Rear wiring harness | |
| 20 | DG956WII-15004 | Rear wiring harness | |
| 20 | DG956WIV-15004 | Rear wiring harness | |
| 21 | DG953-B15013 | Driver's cab electrical fitting drawing | |
| 22 | ZL50G2-15001A | Rubber board | |
| (1) | D2712-12500 | Twin-horn set | |
| (2) | GB5781 | Bolt | |
| (3) | GB93 | Washer | |
| (4) | GB6170 | Nut | |
| (5) | D2930-01400 | Clamp | |
| (6) | GB818 | Bolt | |
| (7) | D2580-01800 | Battery main switch | |
| (8) | GB5781 | Bolt | |
| (9) | GB95 | Washer | |
| (10) | D2220-05004 | Instrument desk assy | |
| (10) | D2220-05014 | Instrument desk assy | |
| (10) | D2220-05001 | Instrument desk assy | |
| (10) | D2220-05011 | Instrument desk assy | |
| (11) | GB5783 | Bolt | |
| (12) | GB95 | Washer | |
| (13) | GB93 | Washer | |
| (18) | D2670-00001 | Starting relay | |
| (19) | GB93 | Washer | |
| (20) | D2680-02400 | Flameout electromagnet | |
| (20) | D2680-02500 | Flameout electromagnet | |
| (20) | D2680-00001 | Flameout electromagnet | |
| (21) | D2310-00001 | Temperature sensor | |
| (21) | D2310-00003 | Water temperature sensor | |
| (22) | D2480-05500 | Rear big lamp | |
| (23) | GB818 | Bolt | |
| (24) | D2031-06301 | Generator assy | |
| (24) | D2031-06300 | Generator assy | |
| (24) | D2031-07000 | Generator assy | |
| (25) | D2730-08501 | Back-up warner | |
| (26) | GB818 | Bolt | |
| (27) | D2443-03701 | SANYU rear lamp | |
| (28) | D2551-15000 | Manual power switch | |
| (29) | GB5781 | Bolt | |
| (30) | GB93 | Washer | |
| (31) | D2051-00700 | Starter assy | |
| (31) | D2051-00800 | Starter assy | |
| (31) | D2051-00801 | Starter assy | |
| (32) | D2772-15000 | ZEEMAN insurance | |
| (33) | D2610-10000 | Relay | |
| (34) | D2400-07502 | R/F big lamp | |
| (35) | GB5781 | Bolt | |
| (36) | GB95 | Washer | |
| (37) | D2400-07501 | L/F big lamp | |
| (38) | D2900-15000 | Clamp | |
| (39) | D2430-00501 | Top lamp | |
| (40) | D2470-07500 | Work lamp | |
| (41) | D2830-00600 | Fan | |
| (42) | D2310-00001 | Temperature sensor | |
| (43) | D2900-20000 | Clamp | |
| (44) | D2601-30000 | Electromagnetic switch | |
| (45) | D2011-12000 | Accumulator assy | |
| (46) | GB6170 | Nut | |
| (47) | D2011-05000 | Accumulator assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
