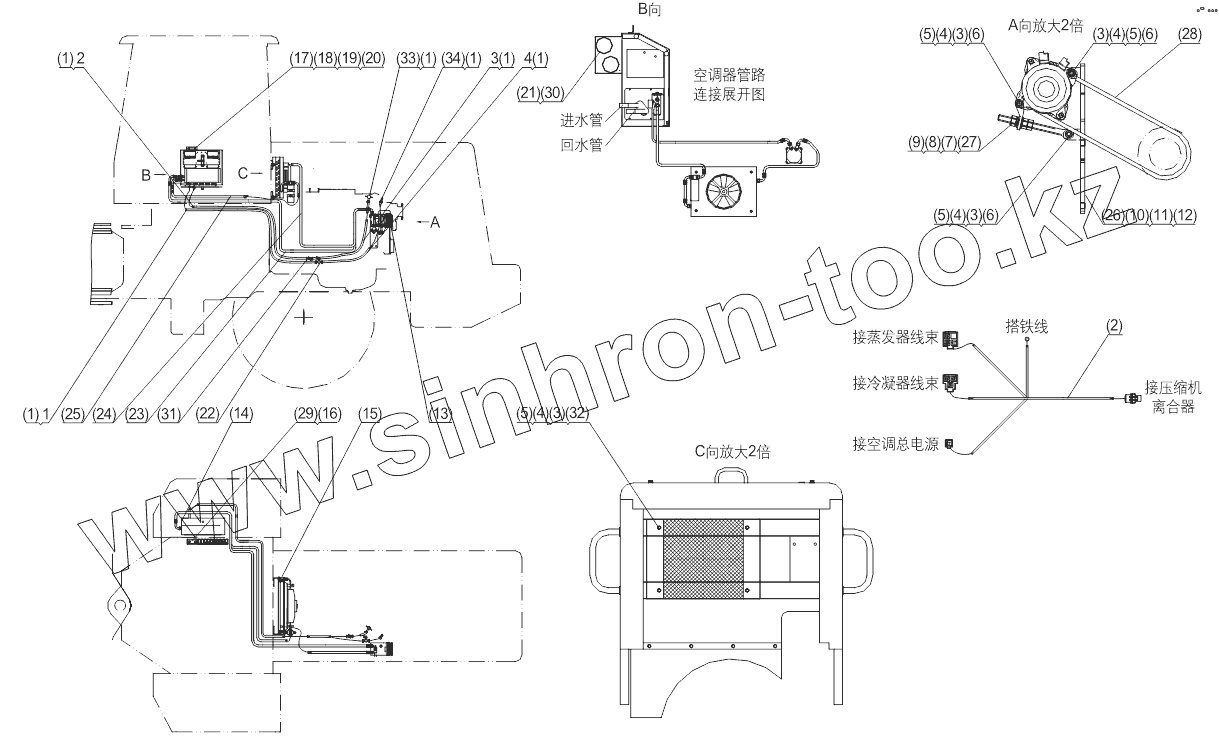

Каталог запасных частей к технике: Shantui SL-50W. AIR CONDITIONER SYSTEM (FOR WEICHAI ENGINE)
1
2
3
4
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(3)
(3)
(3)
(3)
(4)
(4)
(4)
(4)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG956-A17001 | Outlet Pipe | |
| 2 | DG956-A17002 | Inlet Pipe | |
| 3 | DG956-A17003 | Inlet Pipe | |
| 4 | DG956-A17004 | Outlet Pipe | |
| D2061-51000 | D2061-51000 | Air conditioner assy | |
| (1) | JB3618.1 | Clamp | |
| (2) | TSGX05010X | Air condition wire | |
| (3) | GB95 | Washer | |
| (4) | GB93 | Washer | |
| (5) | GB6170 | Nut | |
| (6) | GB5781 | Bolt | |
| (7) | GB6170 | Nut | |
| (8) | GB95 | Washer | |
| (9) | GB93 | Washer | |
| (10) | GB5781 | Bolt | |
| (11) | GB93 | Washer | |
| (12) | GB95 | Washer | |
| (13) | DY5H14 | Compressor | |
| (14) | TSZW05.DG07 | Evaporator | |
| (15) | TSL05-DG09 | Condenser assy | |
| (16) | GB819 | Screw | |
| (17) | GB5781 | Bolt | |
| (18) | GB93 | Washer | |
| (19) | GB95 | Washer | |
| (20) | GB6170 | Nut | |
| (21) | JB3618.1 | Clamp | |
| (22) | TSZN05.DG01-02000000 | Release switch | |
| (23) | TSGX05023D | Hose | |
| (24) | TSGX05023G1 | Hose | |
| (25) | TSGX05007G2 | Hose | |
| (26) | TSPZ.SYm | Compressor frame | |
| (27) | TSPZ.SYm-0001 | Bolt | |
| (28) | V131560 | Belt | |
| (29) | DG938-KTTJMB | Air condition adjust panel | |
| (30) | DG938-FD1 | Duct | |
| (31) | DG938-ZLF | Check-valve | |
| (32) | GB5781-86 | Bolt | |
| (33) | DYZN05.DG01-0300000 | Transition joints | |
| (34) | DYZN05.DG01-0000002 | Outlet joint |
