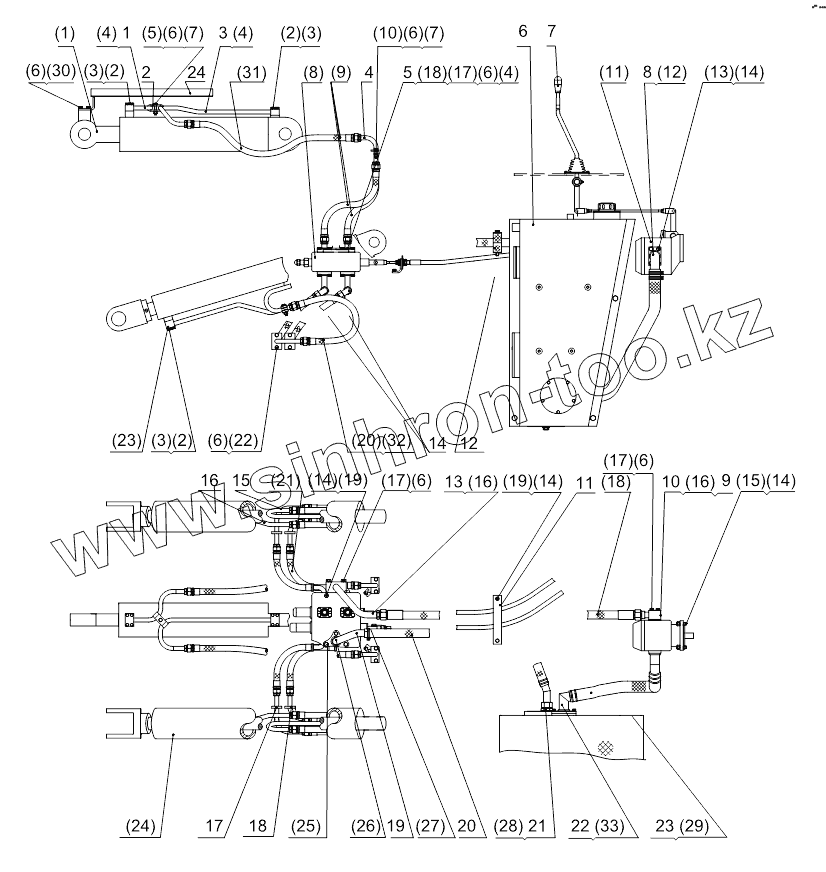

Каталог запасных частей к технике: Shantui SL-30W. Work hydraulic system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
(1)
(2)
(2)
(2)
(3)
(3)
(3)
(4)
(4)
(4)
(5)
(6)
(6)
(6)
(6)
(6)
(6)
(6)
(7)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(14)
(14)
(14)
(15)
(16)
(16)
(17)
(17)
(17)
(18)
(18)
(19)
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG930A-06001 | Steel tube assembly | |
| 2 | DG930A-06002 | Ciamp for tube | |
| 3 | DG930A-06003 | Steel tube assembly | |
| 4 | DG930A-06004 | Steel tube assembly | |
| 5 | DG930A-06005 | Fitting assembly | |
| 6 | DG930A-06200 | Hydraulic tank | |
| 7 | ZL30GII-06100 | Work hydraulic control system | |
| 8 | SL30W-06006 | Fitting assembly | |
| 9 | DG930A-06009 | Double-screw bolt | |
| 10 | DG930A-06010 | Fitting assembly | |
| 11 | DG930A-06011 | Clamp for tube | |
| 12 | DG930A-06012 | Clamp for tube | |
| 13 | DG930A-06013 | Steel tube assembly | |
| 14 | DG930A-06014 | Fitting assembly | |
| 15 | DG930A-06015 | Steel tube assembly | |
| 16 | DG930A-06016 | Steel tube assembly | |
| 17 | DG930A-06017 | Steel tube assembly | |
| 18 | DG930A-06018 | Steel tube assembly | |
| 19 | DG930A-06019A | Steel tube assembly | |
| 20 | DG930A-06020B | High-pressure hose | |
| 21 | DG930A-06022 | Fitting | |
| 22 | DG930A-06023 | Steel tube assembly | |
| 23 | DG930A-06024 | Oil inlet hose | |
| 24 | DG930A-06025 | Cylinder rod protect device | |
| (1) | HSGF 140/80B-E-EG | Tilting bucket cylinder | |
| (2) | GB5783-86 | Bolt | |
| (3) | GB93-87 | Washer | |
| (4) | GB3452.1-1992 | O-ring | |
| (5) | GB5781-86 | Bolt | |
| (6) | GB93-87 | Washer | |
| (7) | GB6170-86 | nut | |
| (8) | DF25-2C | Distribution valve | |
| (9) | JF100-81 | High-pressure hose | |
| (10) | GB5783-86 | Bolt | |
| (11) | CBGJ2100 | Gear pump | |
| (12) | GB3452.1 -1992 | O-ring | |
| (13) | GB5781-86 | Bolt | |
| (14) | GB93-87 | Washer | |
| (15) | GB6170-86 | nut | |
| (16) | GB3452.1 -1992 | O-ring | |
| (17) | GB5783-86 | Bolt | |
| (18) | JF100-81 | High-pressure hose | |
| (19) | GB5780-86 | Bolt | |
| (20) | JF100-81 | High-pressure hose | |
| (21) | JF100-81 | High-pressure hose | |
| (22) | GB5781-86 | Bolt | |
| (23) | GB3452.1-1992 | O-ring | |
| (24) | HSGF 110/63A-E-EG | Lifting cylinder | |
| (25) | GB5780-86 | Bolt | |
| (26) | GB1235-76 | O-ring | |
| (27) | GB5780-86 | Bolt | |
| (28) | GB982-77 | Combined washer | |
| (29) | JB3616.1-84 | Clamp | |
| (30) | GB5781-86 | Bolt | |
| (31) | ф30x715 | High-pressure hose | |
| (32) | ф30x800 | High-pressure hose | |
| (33) | GB3452.1-1992 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
