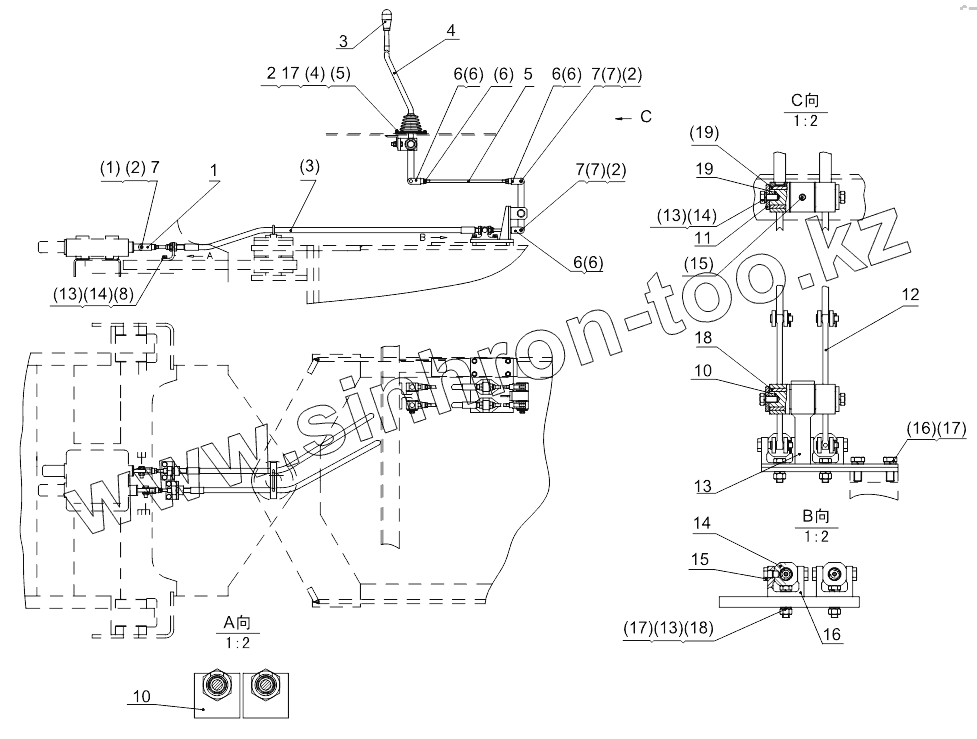

Каталог запасных частей к технике: Shantui SL-30W. Work hydraulic control system
1
2
3
4
5
6
6
6
7
7
7
10
10
11
12
13
14
15
16
17
18
19
(1)
(2)
(2)
(2)
(3)
(4)
(5)
(6)
(6)
(6)
(6)
(7)
(7)
(8)
(13)
(13)
(13)
(14)
(14)
(15)
(16)
(17)
(17)
(18)
(19)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL30GII-06101 | Yoke | |
| 2 | ZL30GII-06102 | Press plate | |
| 3 | ZL30GII-06103 | Rein sleeve | |
| 4 | ZL30GII-06104 | Control rod | |
| 5 | ZL30GII-06105 | Connect rod | |
| 6 | ZL30GII-06106 | Yoke | |
| 7 | ZL30GII-06107 | Pin | |
| 9 | ZL30GII-06109А | Bracket | |
| 10 | ZL30GII-06110 | Shaft | |
| 11 | ZL30GII-06111 | Gasket | |
| 12 | ZL30GII-06112 | Rocker arm | |
| 13 | ZL30GII-06113 | Bracket | |
| 14 | ZL30GII-06114 | Joint sleeve | |
| 15 | ZL30GII-06115 | Pin | |
| 16 | ZL30GII-06116 | Bracket | |
| 17 | ZL30GII-06117 | Dirt-proof boot | |
| 18 | ZL30GII-06118 | Bush | |
| 19 | ZL30GII-06119 | Shaft | |
| (1) | GB95-85 | Washer | |
| (2) | GB91-86 | Чека разводная | |
| (3) | Ф6x1500 | Push-pull flexible shaft | |
| (4) | GB93-87 | Washer | |
| (5) | GB818-85 | Screw | |
| (6) | GB6171-86 | Nut | |
| (7) | GB95-85 | Washer | |
| (8) | GB95-85 | Washer | |
| (13) | GB93-87 | Washer | |
| (14) | GB5781-86 | Bolt | |
| (15) | GB71-85 | Screw | |
| (16) | GB5783-86 | Bolt | |
| (17) | GB93-87 | Washer | |
| (18) | GB6170-86 | nut | |
| (19) | GB/T5801-94 | Bearing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
