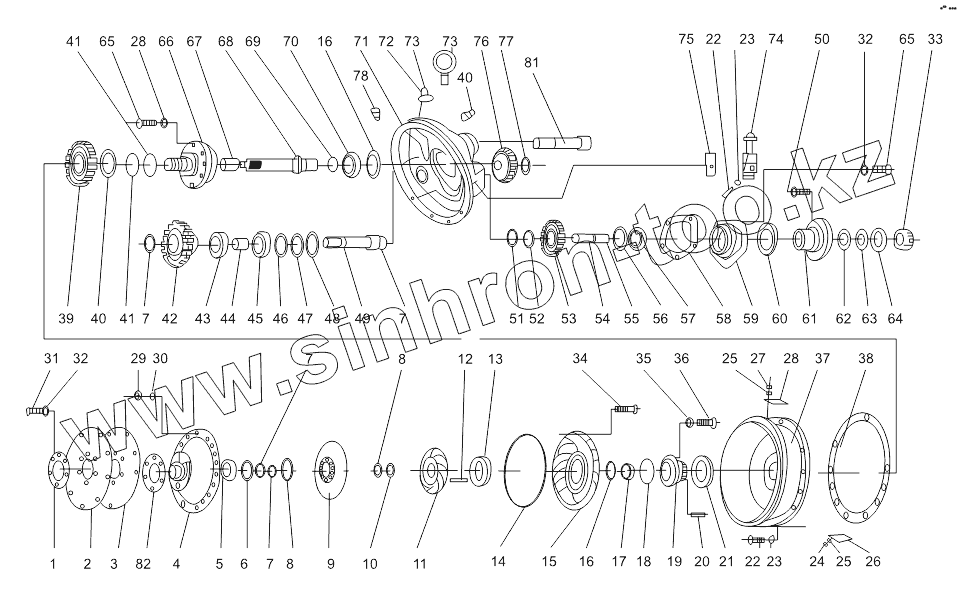

Каталог запасных частей к технике: Shantui SL-30W. Torque converter
1
2
3
4
5
6
7
7
7
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
21
22
22
23
23
24
25
25
27
28
28
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
65
66
67
68
69
70
71
72
73
73
74
75
76
77
78
81
82
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | YJ315Y-00018 | Circle backing plate | |
| 2 | YJ315Y-00002 | Elastane plate | |
| 3 | YJ315Y-30000 | Elastane plate assembly | |
| 4 | YJ315X-00002 | Cover wheel | |
| 5 | GB289-644074106 | 4074106 roller bearing | |
| 6 | 04065-05520 | Открытое кольцо | |
| 7 | 04064-03015 | Открытое кольцо | |
| 8 | 04064-03818 | 38 snap ring | |
| 9 | YJ315X-10000 | Runner unit | |
| 10 | 04064-06020 | Открытое кольцо | |
| 11 | ZL30D-11-27 | Stator | |
| 12 | 04025-00620 | Pin | |
| 13 | ZL30D-11-24 | Caulking ring | |
| 14 | GB/3452.1-92 | O-ring | |
| 15 | YJ315X-00003 | Impeller | |
| 16 | GB893.1-86 | Washer | |
| 17 | СВЯ276-94 | Bearing | |
| 18 | GB1235-76 | O-ring | |
| 19 | ZL30D-11-21 | Impeller seat | |
| 20 | ZL30D-11-22 | Place pin | |
| 20 | YJ315X-00005 | Cover plate | |
| 21 | ZL30D-11-54 | Oil seal | |
| 22 | 01010-51030 | Болт | |
| 23 | 01602-21030 | Шайба | |
| 24 | GB21-76 | Bolt | |
| 25 | 01642-20608 | Washer | |
| 27 | GB21-76 | Bolt | |
| 28 | YJ315X-00004 | Cover plate | |
| 29 | 01580-10806 | Гайка | |
| 30 | 01602-20825 | Шайба | |
| 31 | 01010-51225 | Болт | |
| 32 | 01602-21236 | Рессорная шайба | |
| 33 | ZL30D-11-14 | Nut | |
| 34 | 01010-50835 | Болт | |
| 35 | 01602-20825 | Шайба | |
| 36 | 01010-50822 | Bolt | |
| 37 | YJ315X-00001 | Middle node | |
| 38 | ZL30D-11-38 | Backup plate | |
| 39 | YJ315L-00005A | Drive oil pump initiative gear | |
| 40 | 04064-01030 | Ring, snap | |
| 41 | ZL30D-11-19 | Seal ring | |
| 42 | YJ315L-00006A | Drive oil pump passivity gear | |
| 43 | GB/T276-94 | Bearing | |
| 44 | ZL30D-11-40 | Sleeve | |
| 45 | GB277-89 | 50206 bearing | |
| 46 | ZL30D-11-04 | Closing ring | |
| 47 | ZL30D-11-03 | Washer | |
| 48 | 04065-06825 | Retainer | |
| 49 | YJ315LD-00002 | Drive oil pump shaft | |
| 50 | 01010-51240 | Болт | |
| 51 | 04064-03515 | Retainer | |
| 52 | GB/T276-94 | Bearing | |
| 53 | ZL30D-11-18 | Passivity gear | |
| 54 | ZL30D-11-15 | Export shaft | |
| 55 | GB/T91-2000 | Cotter pin | |
| 56 | 04065-09030 | Открытое кольцо | |
| 57 | GB/T276-94 | Bearing | |
| 58 | ZL30D-11-07 | Sealing plate | |
| 59 | ZL30D-11-11 | Oil seal flange | |
| 60 | 07012-20055 | Oil seal | |
| 61 | ZL30D-11-1 | Export flange | |
| 62 | ZL30D-11-13 | Washer | |
| 63 | ZL30D-11-17 | Sealing plate | |
| 64 | ZL30D-11-16 | Washer | |
| 65 | 01010-51230 | Болт | |
| 66 | ZL30D-11-05 | Stator seat | |
| 67 | ZL30D-11-10 | Sleeve | |
| 68 | ZL30D-11-09 | Initiative shaft | |
| 69 | ZL30D-11-08 | Seal ring | |
| 70 | GB/T-946310 | Bearing | |
| 71 | ZL30D-11-01 | Torque convert shell | |
| 72 | 04418-03060 | Заклепка | |
| 73 | YJ315LD-BP01 | Rating plate | |
| 74 | YJ320-01000Z | Reducing valve | |
| 75 | YJ315X-00009Z | Seal plate | |
| 76 | ZL30D-11-06 | Initiative gear | |
| 77 | GB894.1-86 | Retainer | |
| 78 | GB/T14626 | Square pipe plug | |
| 79 | GB/T825-1998 | Eye bolt | |
| 80 | YJ315S-00007 | Riser vent joint | |
| 81 | YJ315LD-00001 | Drive oil pump shaft | |
| 82 | YJ315S-00011-1/2/3/4 | Adjust gasket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
