Каталог запасных частей к технике: Shantui SL-30W. Steering hydraulic system
1
2
3
4
5
6
6
7
8
9
10
10
11
12
13
(1)
(2)
(3)
(4)
(5)
(6)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(12)
(12)
(13)
(14)
(15)
(15)
(16)
(17)
(18)

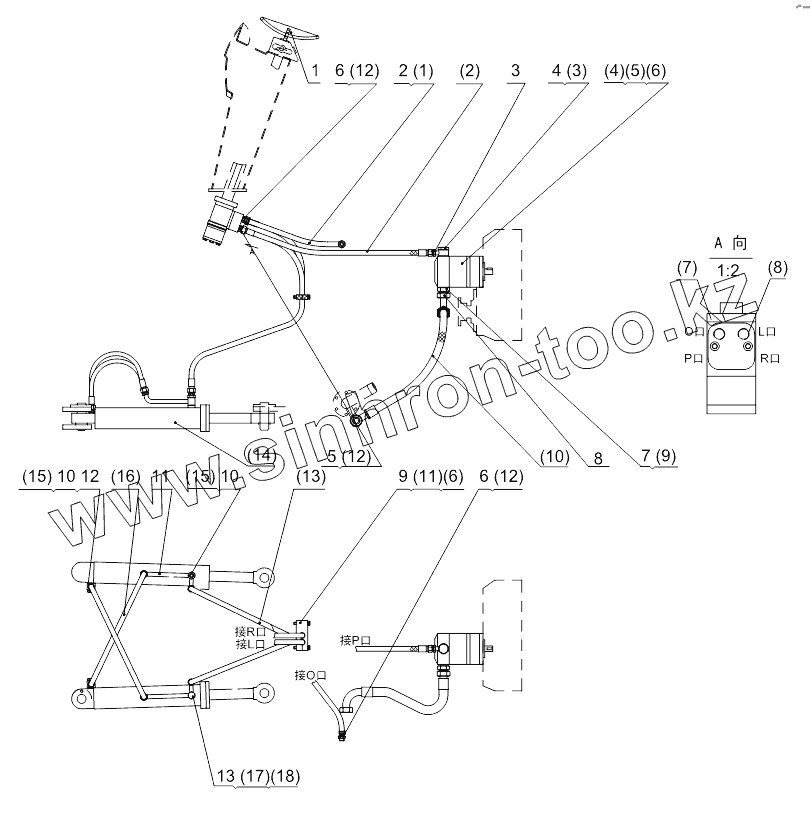

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG930B-05100 | Steering gear assembly | |
| 2 | DG930B-05001 | Oil ruturn hose | |
| 3 | DG930A -05002 | Fitting assembly | |
| 4 | DG930A -05003 | Articulation bolt | |
| 5 | DG930B-05004 | Fitting | |
| 6 | DG930B-05005 | Fitting | |
| 7 | DG930A -05006 | Fitting | |
| 8 | SL30W-05007 | Fitting assembly | |
| 9 | DG930A-05009 | Clamp for tube | |
| 10 | DG930A-05010 | Articulation bolt | |
| 11 | DG930A -05011 | Steel tube assembly | |
| 12 | DG930A -05012 | Fitting assembly | |
| 13 | DG930A-05013 | Articulation bolt | |
| (1) | JB3616.1-84 | Clamp | |
| (2) | JF100-81 | High-pressure hose | |
| (3) | JB982-77 | Washer | |
| (4) | CB-FE40FL | Gear pump | |
| (5) | GB5783-86 | Bolt | |
| (6) | GB93-87 | Washer | |
| (7) | BZZ-400 | Deflector | |
| (8) | FK-10/16 | Combination valve block | |
| (9) | JB982-77 | Washer | |
| (10) | JF100-81 | High-pressure hose | |
| (11) | GB 5780-86 | Bolt | |
| (12) | JB982-77 | Washer | |
| (13) | JF100-81 | High-pressure hose | |
| (14) | HSGF-80 | Steering cylinder | |
| (15) | JB982-77 | Washer | |
| (16) | JF100-81 | High-pressure hose | |
| (17) | JB982-77 | Washer | |
| (18) | JB1000-77 | Plug |
