Каталог запасных частей к технике: Shantui SL-30W. SL30W (kang) Engine mount
1
2
3
4
5
6
7
8
9
10
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
(1)
(2)
(2)
(3)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(11)
(12)
(12)
(12)
(13)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(24)
(25)
(26)
(27)
(28)

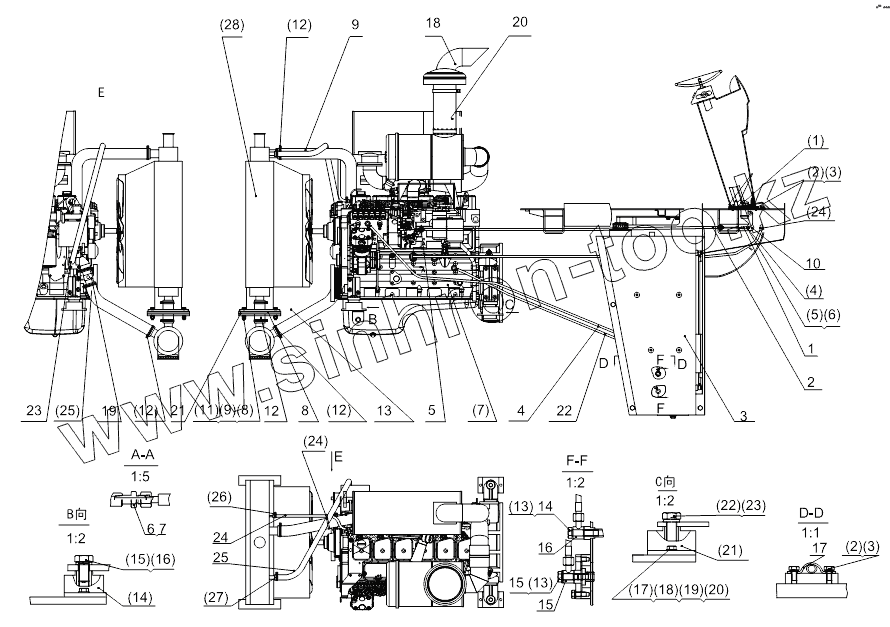

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG938-01001 | Yoke | |
| 2 | DG938-01002 | Throttle flexible shaft | |
| 3 | DG938-01200 | Fuel tank | |
| 4 | DG938-01004 | Fuel return pipe | |
| 5 | DG938-01005 | Throttle bracket | |
| 6 | DG938-01006 | Joint | |
| 7 | DG938-01007 | Oil pipe | |
| 8 | DG938-01008 | Bracket | |
| 9 | DG938-01009 | Hose | |
| 10 | DG938-01010A | Throttle flexible shaft | |
| 11 | DG938-01011 | Water pipe | |
| 12 | DG938-01012 | Hose | |
| 13 | DG938-01013 | Hose | |
| 14 | DG938-01014 | Joint bolt | |
| 15 | DG938-01015 | Joint | |
| 16 | Joint | Joint | |
| 17 | DG938-01017 | Pipe clip | |
| 18 | DG938-01018 | Blast pipe | |
| 19 | DG938-01019 | Joint | |
| 20 | DG938-01020 | Connector | |
| 21 | DG938-01021 | Backing plate | |
| 22 | DG938-01022 | Fuel oil suction pipe | |
| 23 | DG938-01023 | Joint | |
| 24 | DG938-01024 | Connector | |
| 25 | DG938-01025 | Water pipe | |
| (1) | XZ(QZ)1129001 | Throttle control valve | |
| (2) | GB5781-86 | Bolt | |
| (3) | GB93-87 | Washer | |
| (4) | GB882-86 | Pin | |
| (5) | GB91-86 | Чека разводная | |
| (6) | GB95-85 | Washer | |
| (7) | 6BT5.9-C130 | Dongfeng Cummunis engine | |
| (8) | GB5781-86 | Bolt | |
| (9) | GB93-87 | Washer | |
| (10) | GB6170-86 | nut | |
| (11) | GB95-85 | Washer | |
| (12) | JB3616.1-84 | Clamp | |
| (13) | JB982-77 | Washer | |
| (14) | BE-120 | Reducer | |
| (15) | GB5783-86 | Bolt | |
| (16) | GB93-87 | Washer | |
| (17) | GB6170-86 | nut | |
| (18) | GB93-87 | Washer | |
| (19) | GB95-85 | Washer | |
| (20) | GB5781-86 | Bolt | |
| (21) | BE-160 | Reducer | |
| (22) | GB5783-86 | Bolt | |
| (23) | GB93-87 | Washer | |
| (24) | ZD200 x 8 | Clip | |
| (25) | JB3616.1-84 | Clamp | |
| (26) | JB3616.1-84 | Clamp | |
| (27) | JB3616.1-84 | Clamp | |
| (28) | KMS-ZL938 | Water tank |
