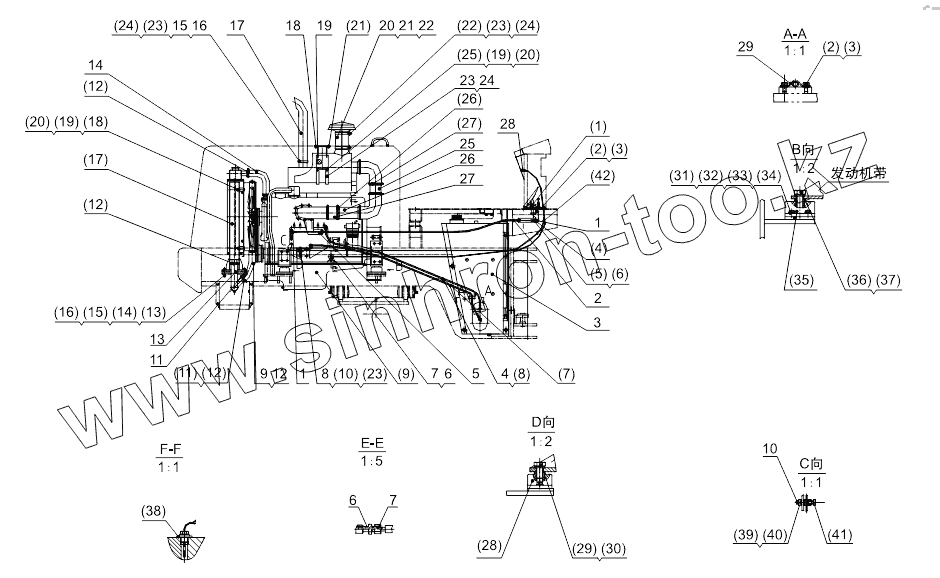

Каталог запасных частей к технике: Shantui SL-30W. Engine mount
1
1
2
3
4
5
6
7
7
8
9
6
6
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
(1)
(2)
(2)
(3)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(12)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(19)
(20)
(20)
(21)
(22)
(23)
(23)
(23)
(24)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
(35)
(36)
(37)
(38)
(39)
(40)
(41)
(42)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG930A-01001 | Yoke | |
| 2 | DG930A-01002 | Throttle flexible shaft | |
| 3 | ZL30GII-01200 | Fuel tank | |
| 4 | DG930A-01004 | Return fuel tube | |
| 5 | DG930A-01005 | Accelerator bracket | |
| 6 | DG930A-12019 | Fitting | |
| 7 | DG930A-01007 | Oil pipe | |
| 8 | DG930A-01008 | Set plate for extinguishing cable | |
| 9 | DG930A-01009A | Hose | |
| 6 | ZL30G6-01014A | Hose | |
| 10 | DG930A-01010 | Pin | |
| 11 | DG930A-01011 | Damping space | |
| 12 | DG930A-01032 | Hose | |
| 13 | ZL30G6-01018 | Hose | |
| 14 | DG930A-01014 | Hose | |
| 15 | DG930A-01015 | Block | |
| 16 | DG930A-01016 | U Bolt | |
| 17 | DG930A-01017 | Exhaust pipe | |
| 18 | DG930A-01018 | Bracket of air filter | |
| 19 | DG930A-01019 | Damping space | |
| 20 | DG930A-01020 | Join tube | |
| 21 | DG930A-01021 | Damping space | |
| 22 | DG930A-01022 | Clamp | |
| 23 | DG930A-01023 | Clamp | |
| 24 | DG930A-01024 | Damping space | |
| 25 | DG930A-01025 | Join tube | |
| 26 | DG930A-01026 | Join tube | |
| 27 | DG930A-01027 | Join tube | |
| 28 | DG930A-01028 | Extinguishing cable | |
| 29 | DG930A-01029 | Pipe clip | |
| (1) | XZ(QZ) 1129001 | Control valve | |
| (2) | GB5781-86 | Bolt | |
| (3) | GB93-87 | Washer | |
| (4) | GB882-86 | Pin | |
| (5) | GB91-86 | Чека разводная | |
| (6) | GB95-85 | Washer | |
| (7) | GB3452-83 | Suction fuel tube | |
| (8) | JB3616.1-84 | Clamp | |
| (9) | 6110/125 G5-10B | Diesel engine | |
| (10) | GB5781-86 | Bolt | |
| (11) | JB3616.1-84 | Clamp | |
| (12) | JB3616.1-84 | Clamp | |
| (13) | GB5781-86 | Bolt | |
| (14) | GB93-87 | Washer | |
| (15) | GB6170-86 | nut | |
| (16) | GB95-85 | Washer | |
| (17) | ZL30-01-SX | Radiator | |
| (18) | GB5781-86 | Bolt | |
| (19) | GB93-87 | Washer | |
| (20) | GB6170-86 | nut | |
| (21) | GB5781-86 | Bolt | |
| (22) | GB5781-86 | Bolt | |
| (23) | GB93-878 | Washer | |
| (24) | GB6170-86 | nut | |
| (25) | GB5781-86 | Bolt | |
| (26) | JB3616.1-84 | Clamp | |
| (27) | JB3616.1-84 | Clamp | |
| (28) | ЕА-220 | Damping pad | |
| (29) | GB5783-86 | Bolt | |
| (30) | GB93-87 | Washer | |
| (31) | GB6170-86 | nut | |
| (32) | GB93-87 | Washer | |
| (33) | GB95-85 | Washer | |
| (34) | GB5781-86 | Bolt | |
| (35) | ЕА-300 | Damping pad | |
| (36) | GB5783-86 | Bolt | |
| (37) | GB93-87 | Washer | |
| (38) | JB982-77 | Washer | |
| (39) | GB6170-86 | nut | |
| (40) | GB93-87 | Washer | |
| (41) | GB5781-86 | Bolt | |
| (42) | ZD200x8 | Clip |
