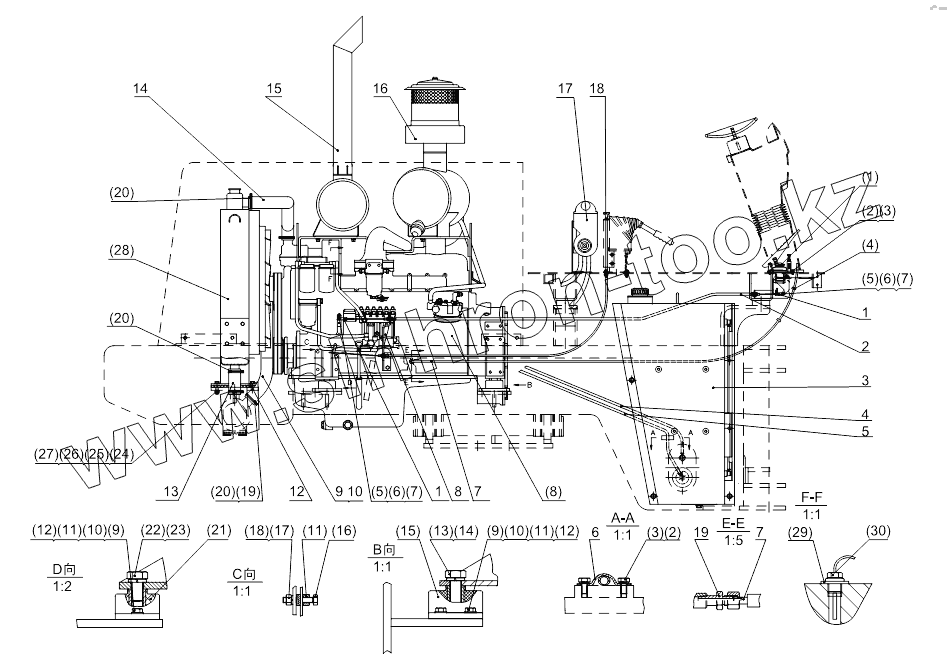

Каталог запасных частей к технике: Shantui SL-30W. Engine device (match WUXI pressurize engine)
1
1
2
3
4
5
6
7
7
8
9
10
12
13
14
15
16
17
18
19
(1)
(2)
(2)
(3)
(3)
(4)
(5)
(5)
(6)
(6)
(7)
(7)
(8)
(9)
(9)
(10)
(10)
(11)
(11)
(11)
(12)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(20)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DG930A-01001 | Yoke | |
| 2 | DG930A-01002 | Throttle flexible shaft | |
| 3 | ZL30GII-01200 | Fuel tank | |
| 4 | DG938-01004 | Fuel return pipe | |
| 5 | DG938-01005 | Throttle bracket | |
| 6 | DG930A-01029 | Pipe clip | |
| 7 | DG938-01007 | Oil pipe | |
| 8 | DG938-01008 | Bracket | |
| 9 | DG930A-01009A | Hose | |
| 10 | DG930A-01032 | Hose | |
| 11 | DG930A-01010 | Pin | |
| 12 | ZL30E-01019 | Water pipe pad | |
| 13 | ZL30E-01018B | Water pipe | |
| 14 | DG930A-01014 | Hose | |
| 15 | DG938-01015 | Joint | |
| 16 | DG938-01016 | Air filter assembly | |
| 17 | ZL30GII-01400А | Warm wind system | |
| 18 | Wire | Flameout wire | |
| 19 | DG938-01019 | Joint | |
| (1) | XZ(QZ) 1129001 | Control valve | |
| (2) | GB5781-86 | Bolt | |
| (3) | GB93-87 | Washer | |
| (4) | ZD200x8 | Clip | |
| (5) | GB882-86 | Pin | |
| (6) | GB95-85 | Washer | |
| (7) | GB91-86 | Чека разводная | |
| (8) | 6DF1D-12G-DG1A | Diesel | |
| (9) | GB6170-86 | nut | |
| (10) | GB93-87 | Washer | |
| (11) | GB95-85 | Washer | |
| (12) | GB5781-86 | Bolt | |
| (13) | GB5783-86 | Bolt | |
| (14) | GB93-87 | Washer | |
| (15) | ЕА300 | Reducer | |
| (16) | GB5781-86 | Bolt | |
| (17) | GB6170-86 | nut | |
| (18) | GB93-87 | Washer | |
| (19) | JB3618.1-84 | Clamp | |
| (20) | JB3618.1-84 | Clamp | |
| (21) | ЕА220 | Reducer | |
| (22) | GB5783-86 | Bolt | |
| (23) | GB93-87 | Washer | |
| (24) | GB5781-86 | Bolt | |
| (25) | GB95-85 | Washer | |
| (26) | GB93-87 | Washer | |
| (27) | GB6170-86 | nut | |
| (28) | DGZL30 | Water tank | |
| (29) | JB982-77 | Washer | |
| (30) | WG-1 | Water temperature sensor |
