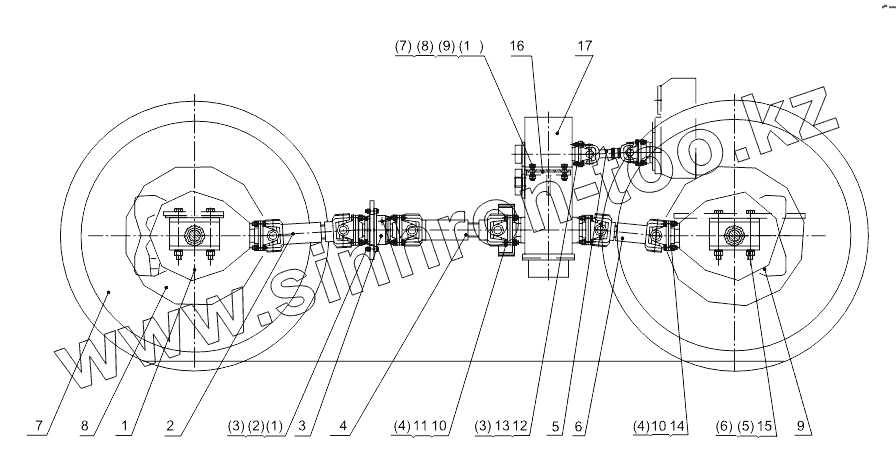

Каталог запасных частей к технике: Shantui SL-30W. Driving shaft and driving axle
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
(1)
(1)
(2)
(3)
(3)
(4)
(4)
(5)
(6)
(7)
(8)
(9)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL30GII-04100 | Front driving axle assembly | |
| 2 | ZL30GII-04200 | Front driving shaft assembly | |
| 3 | ZL30GII-04300 | Intermediate bearing case assembly | |
| 4 | ZL30GII-04400 | Middle driving shaft assembly | |
| 5 | ZL30GII-04500 | Main driving shaft assembly | |
| 6 | ZL30GII-04600 | Rear driving shaft assembly | |
| 7 | ZL30GII-04700 | Tyre | |
| 8 | ZL30GII-04800 | Rim | |
| 9 | ZL30GII-04900 | Rear driving axle assembly | |
| 10 | ZL30GII-04001 | Nut | |
| 11 | ZL30GII-04002 | Bolt | |
| 12 | ZL30GII-04003 | Nut | |
| 13 | ZL30GII-04004 | Bolt | |
| 14 | ZL30GII-04005 | Bolt | |
| 15 | ZL30GII-04006 | Bolt | |
| 16 | ZL30GII-04007 | Damping space | |
| 17 | BYD4208 | Transmission | |
| (1) | GB5782-86 | Bolt | |
| (2) | GB6170-86 | nut | |
| (3) | GB93-87 | Washer | |
| (4) | GB93-87 | Washer | |
| (5) | GB93-87 | Washer | |
| (6) | GB6182-86 | Nut | |
| (7) | GB95-85 | Washer | |
| (8) | GB93-87 | Washer | |
| (9) | GB6182-86 | Nut | |
| (10) | GB5782-86 | Bolt |
