Каталог запасных частей к технике: Shantui SL-30W. Distributor valve
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

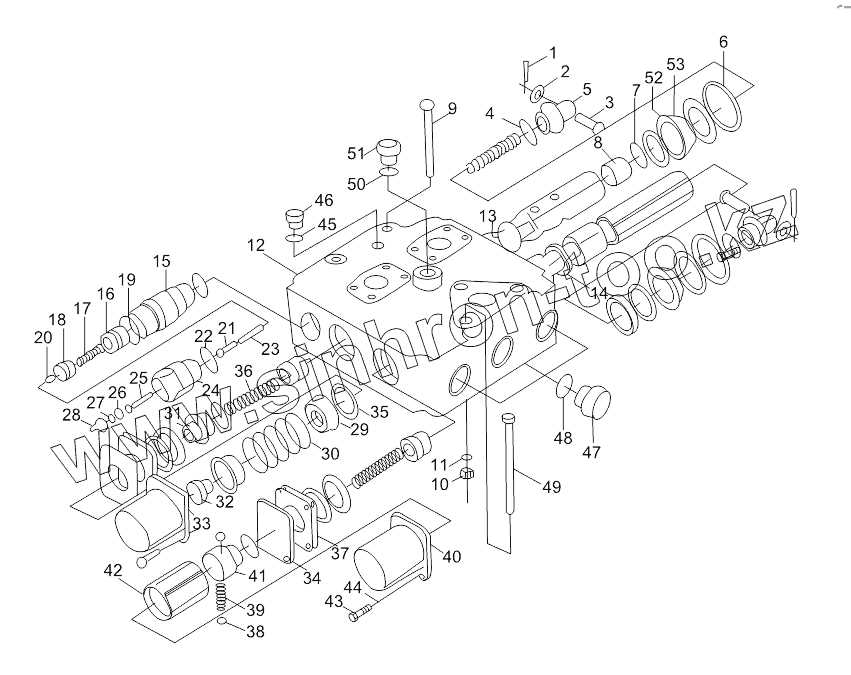

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB91-86 | Чека разводная | |
| 2 | GB97.1-86 | Washer | |
| 3 | FPF32-1 | Pin | |
| 4 | GB1235-76 | O-ring | |
| 5 | FPF32-2 | Spring seat | |
| 6 | GB893.1-86 | Washer | |
| 7 | GB3452.1-82 | O-ring | |
| 8 | FPF32-4 | Check valve | |
| 9 | GB5782-86 | Bolt | |
| 10 | GB6170-86 | nut | |
| 11 | GB93-87 | Washer | |
| 12 | FPF32-5 | Valve body | |
| 13 | FPF32-6 | Tilt spool | |
| 14 | FPF32-7 | Lift spool | |
| 15 | FPF32.1-11 | Sleeve | |
| 16 | FPF32.1-10 | Main spool | |
| 17 | FPF32.1-9 | Main spool spring | |
| 18 | FPF32.1-8 | Valve seat | |
| 19 | GB3452.1-82 | O-ring | |
| 20 | FPF32.1-7 | Relief poppet | |
| 21 | FPF32.1-6 | Spring seat | |
| 22 | GB3452.1-82 | O-ring | |
| 23 | FPF32.1-5 | Spring | |
| 24 | FPF32.1-4 | Relief poppet body | |
| 25 | FPF32.1-3 | Adjusting screw | |
| 26 | GB6173-86 | M10x1 Nut | |
| 27 | FPF32.1-2 | Gasket | |
| 28 | FPF32.1-1 | Lock nut | |
| 29 | FPF32-8 | Spring retainer | |
| 30 | FPF32-9 | Back spring | |
| 31 | FPF32-10 | Spring seat | |
| 32 | FPF32-11 | Seat | |
| 33 | FPF32-12 | Tilt ruturn sleeve | |
| 34 | FPF32-15 | Pad | |
| 35 | FPF32-14 | Washer | |
| 36 | FPF32-13 | Check valve spring | |
| 37 | ZL30-06-DIAN | Washer | |
| 38 | GB308-77 | Steel ball | |
| 39 | FPF32-16 | Spring | |
| 40 | FPF32-17 | Spring return sleeve | |
| 41 | FPF32-18 | Spring seat | |
| 42 | FPF32-19 | Sleeve | |
| 43 | GB5782-86 | Bolt | |
| 44 | GB93-87 | Washer | |
| 45 | GB1235-76 | O-ring | |
| 46 | FPF32-20 | Plug screw | |
| 47 | FPF32-21 | Plug screw | |
| 48 | GB1235-76 | O-ring | |
| 49 | FPF32-23 | Bolt | |
| 50 | GB1235-76 | O-ring | |
| 51 | FPF32-22 | Plug screw | |
| 52 | FPF32-3 | Sleeve | |
| 53 | Q/ZB336-77 | Dust ring |
