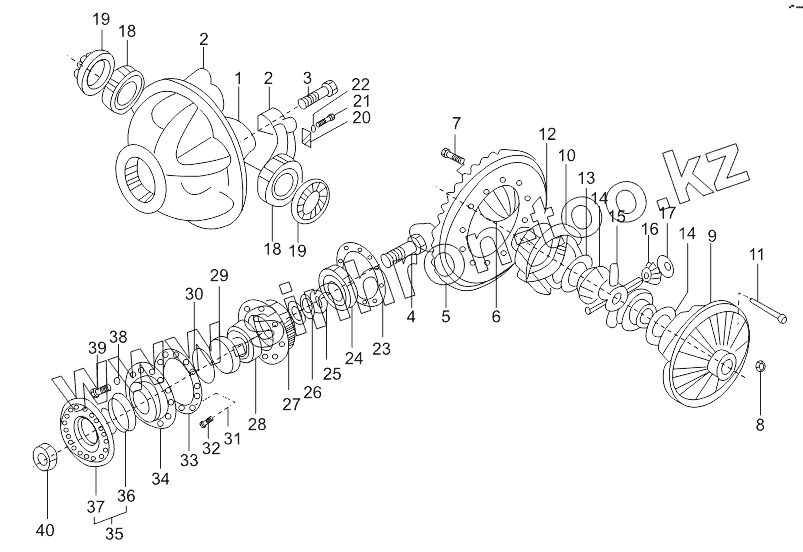

Каталог запасных частей к технике: Shantui SL-30W. Carrier assembly (XC)
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL30-Q.3-3 | Carrier shell | |
| 2 | 75200033 | Bearing cover | |
| 3 | 75502600 | Bolt | |
| 4 | ZL30-QA.3-2 | Pinion gear | |
| 4 | ZL60-HA.2-2 | Pinion gear | |
| 5 | 75201829D | Ring gear | |
| 5 | 75201829С | Ring gear | |
| 6 | 75600311 | Bearing | |
| 7 | 75500003 | Bolt | |
| 8 | GB/T6187-2000 | Nut | |
| 9 | CZQ320.1.1-4 | Case half | |
| 10 | CZQ320.1.1-3 | Case half | |
| 11 | 75501980 | Bolt | |
| 12 | GB/T6187-2000 | Nut | |
| 13 | CZQ320.1.1-2 | Thrust washer | |
| 14 | CZQ320.1.1-1 | Side gear | |
| 15 | 75200059 | Spider | |
| 16 | 75201255 | Planet gear | |
| 17 | 75201607 | Thrust washer | |
| 18 | GB/T297-1994 | Bearing | |
| 19 | ZL30-Q.3-4 | Diff. Nut | |
| 20 | 75200053А | Lock plate | |
| 21 | GB/T32.1-1998 | Bolt | |
| 22 | GB/T93-1987 | Washer | |
| 23 | 404325 | Adjust spacer | |
| 24 | GB/T297-1994 | Bearing | |
| 25 | ZL30-Q.3-1 | Bearing sleeve | |
| 26 | 75200036 | Washer | |
| 27 | ZL30-Q.3-2 | Bearing seat | |
| 28 | GB/T297-1994 | Bearing | |
| 29 | ZL30G-05101 | Operating cover | |
| 30 | GB/T9877.1-1997 | Oil seal | |
| 31 | GB/T9877.1-1997 | Oil seal | |
| 32 | GB/T93-1987 | Washer | |
| 33 | 75500006 | Bolt | |
| 34 | 75200040 | Washer | |
| 35 | 82050401 | Flange assembly | |
| 36 | 75200046 | Dust cover | |
| 37 | 82050402 | Flange | |
| 38 | GB/T93-1997 | Washer | |
| 39 | 75500005 | Bolt | |
| 40 | GB/T889.2-2000 | Nut |
