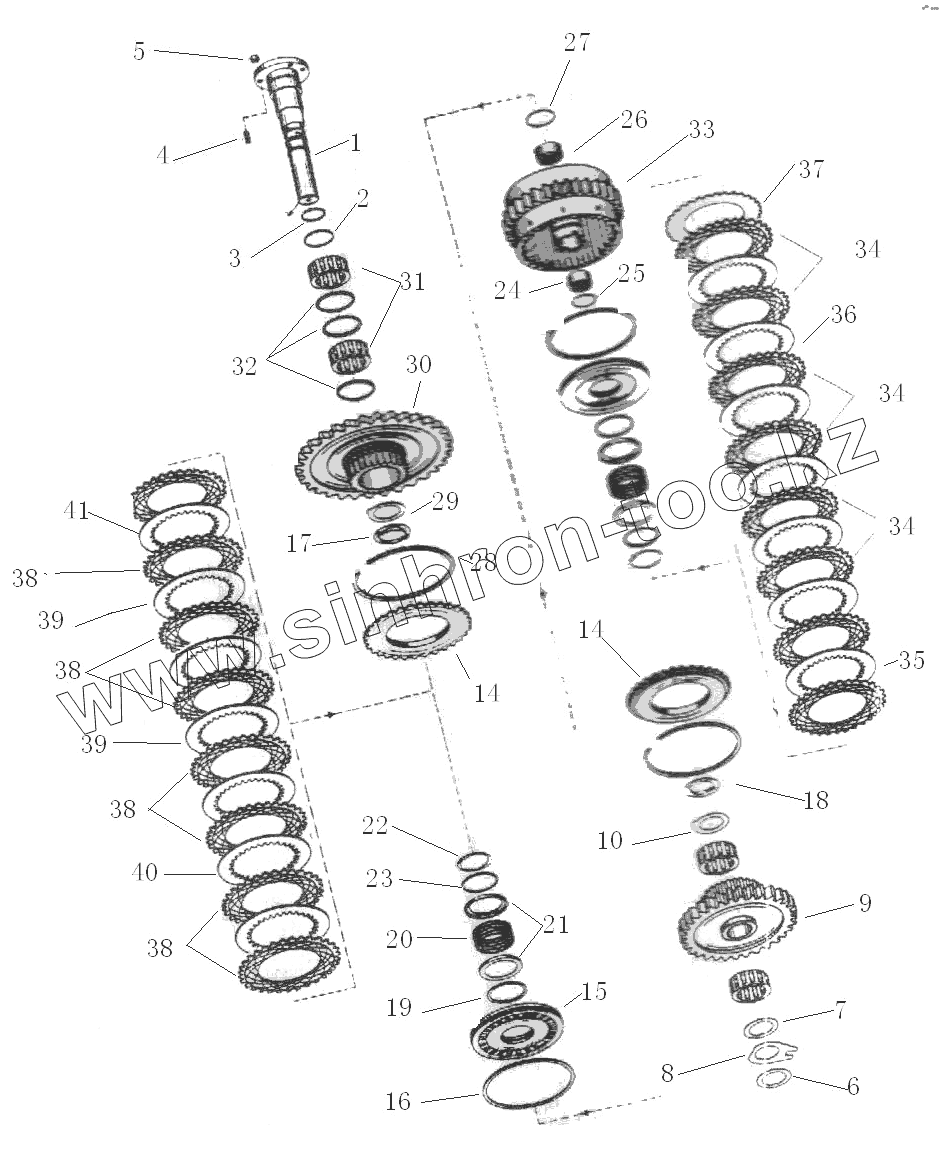

Каталог запасных частей к технике: Shantui SG18-3. CLUTCH ASSEMBLY
1
2
3
4
5
6
7
8
9
10
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
34
35
36
37
38
38
38
38
39
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 222-15-04182 | Shaft | |
| 2 | 222-15-04183 | O-ring | |
| 3 | 222-15-04184 | Agraff sealing ring | |
| 4 | GB898-88 | Stud | |
| 5 | 01581-00806 | Nut | |
| 6 | 222-15-04185 | Spacer | |
| 7 | 222-15-04186 | Abrasion pad | |
| 8 | 222-15-04187 | Spacer | |
| 9 | 222-15-04188 | Gear | |
| 10 | 222-15-04189 | Washer | |
| 11 | 222-15-04190 | Abrasion pad | |
| 12 | 222-15-04191 | Roller set | |
| 13 | 222-15-04192 | Washer | |
| 14 | 222-15-04193 | Pressure plate | |
| 15 | 222-15-04194 | Piston | |
| 16 | 222-15-04195 | Profile sealing ring | |
| 17 | 222-15-04196 | Ring | |
| 18 | 222-15-04197 | Ring | |
| 19 | 222-15-04198 | Profile sealing ring | |
| 20 | 222-15-04199 | Compressed spring | |
| 21 | 222-15-04200 | Ring | |
| 22 | 222-15-04201 | Retainer | |
| 23 | 222-15-04202 | Ring | |
| 24 | 222-15-04203 | Roll bearing | |
| 25 | 222-15-04204 | Flexible sprag | |
| 26 | 222-15-04205 | Roll bearing | |
| 27 | 222-15-04206 | Retainer | |
| 28 | 222-15-04207 | Retainer | |
| 29 | 222-15-04208 | Abrasion pad | |
| 30 | 222-15-04209 | Gear | |
| 31 | 222-15-04210 | Ball bearing | |
| 32 | 222-15-04211 | Retainer | |
| 33 | 222-15-04212 | Clutch casing | |
| 34 | 222-15-04213 | Ex.frictional disc | |
| 35 | 222-15-04214 | In.frictional disc | |
| 36 | 222-15-04215 | In.frictional disc | |
| 37 | 222-15-04216 | In.frictional disc | |
| 38 | 222-15-04217 | Ex.frictional disc | |
| 39 | 222-15-04218 | In.frictional disc | |
| 40 | 222-15-04219 | In.frictional disc | |
| 41 | 222-15-04220 | In.frictional disc |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
