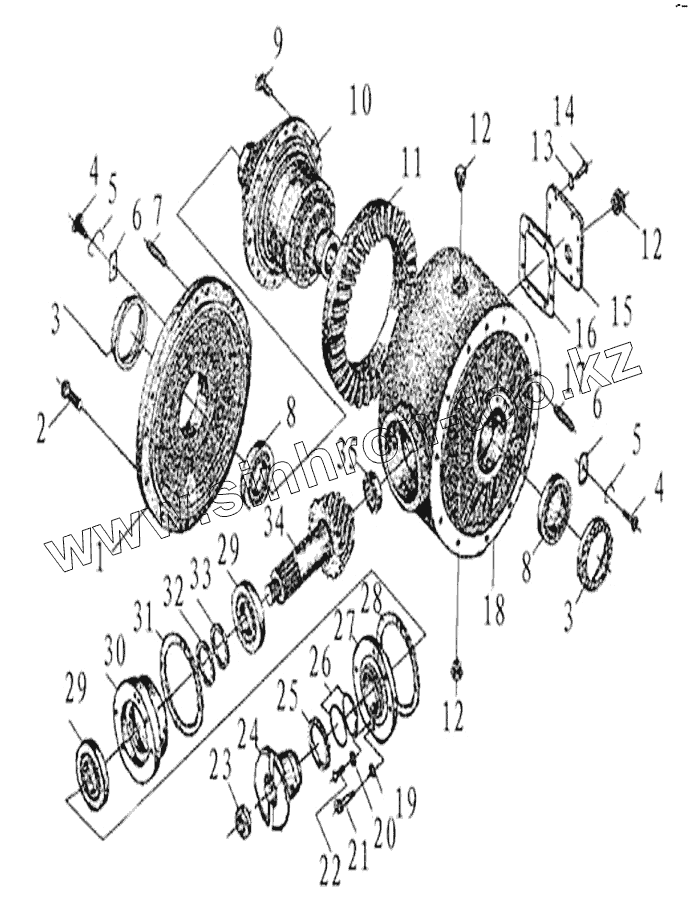

Каталог запасных частей к технике: Shantui SG16-3. REAR AXLE
1
2
3
3
4
4
5
5
6
6
7
8
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 222-18-01001 | Case cover | |
| 2 | GB/T70.1-2000 | Bolt | |
| 3 | 222-18-01002 | Not | |
| 4 | GB/T32.3-1988 | Bolt | |
| 5 | GB/T343-1994 | Steel wire | |
| 6 | 222-18-01003 | Lock blade | |
| 7 | GB/T879.1-2000 | Cylindical pin | |
| 8 | GB/T297-1994 | Bearing | |
| 9 | GB/T5782-2000 | Bolt | |
| 10 | 222-18-01100 | Differential assy | |
| 11 | 222-18-01004 | Disc gear | |
| 12 | 402223 | Plug | |
| 13 | GB/T93-1987 | Washer | |
| 14 | GBT5782-2000 | Bolt | |
| 15 | 222-18-01005 | Cover, rear | |
| 16 | 222-18-01006 | Washer | |
| 17 | GBT879.1-2000 | Pin | |
| 18 | 222-18-01007 | Main drive case | |
| 19 | GBT93-1987 | Washer | |
| 20 | GB//T93-1987 | Washer | |
| 21 | GB//T5782-2000 | Bolt | |
| 22 | GB///T5782-2000 | Bolt | |
| 23 | 222-18-01008 | Locking nut | |
| 24 | 222-18-01016 | Input flange | |
| 25 | 222-18-01017 | Cover, dust | |
| 26 | GB/T9877.1-88 | Washer | |
| 27 | 222-18-01009 | Seal cap | |
| 28 | 222-18-01010 | Gasket | |
| 29 | GB//T297-1994 | Bearing | |
| 30 | 222-18-01011 | Bearing sleeve | |
| 31 | 222-18-01012 | Spacer | |
| 32 | 222-18-01013 | Spacer | |
| 33 | 222-18-01014 | Sleeve | |
| 34 | 222-18-01015 | Bevel gear | |
| 35 | GB/T283-1994 | Bearing |
