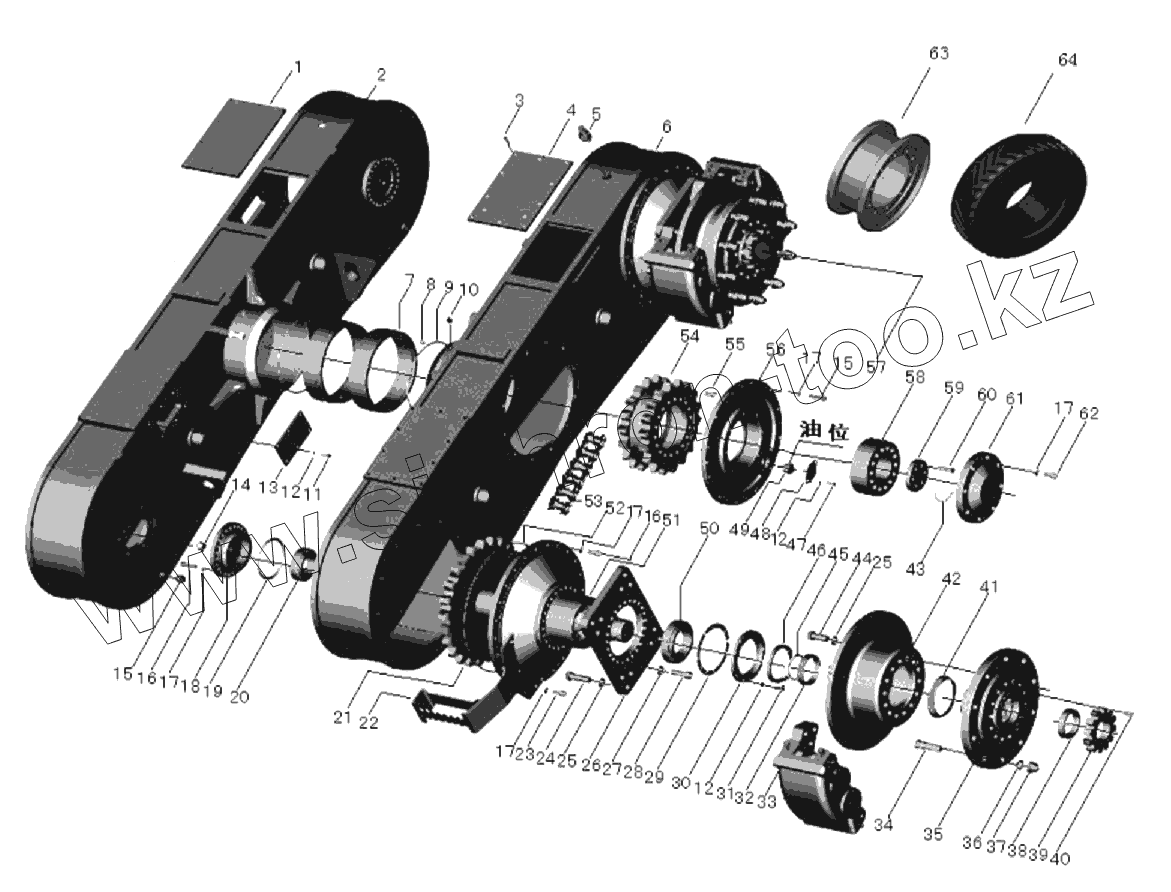

Каталог запасных частей к технике: Shantui SG16-3. BALANCE BOX
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
15
16
16
17
17
17
17
17
18
19
20
21
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
59
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 222-45-00006L | Plate | |
| 2 | 222-45-08000L | Balancing tank, left | |
| 3 | 01252-70816 | Bolt | |
| 4 | 222-45-00006R | Plate | |
| 5 | 222-45-00038 | Breather plug | |
| 6 | 222-45-08000R | Balancing tank, right | |
| 7 | 222-45-00003 | Sleeve | |
| 8 | 01252-71012 | Bolt | |
| 9 | 07000-15250 | O-ring | |
| 10 | 07020-01021 | Масленка | |
| 11 | 01010-50825 | Болт | |
| 12 | 01641-20812 | Шайба | |
| 13 | 222-45-00008 | Cover | |
| 14 | 222-45-00039 | Plug | |
| 15 | 222-45-00040 | Plug | |
| 16 | 01010-51235 | Болт | |
| 17 | 01642-21216 | Шайба | |
| 18 | 222-45-00010 | Cover | |
| 19 | 07000-15125 | O-ring | |
| 20 | GB297-94-33113 | Bearing | |
| 21 | 222-45-00011 | Sprocket wheel | |
| 21 | 222-45-12000 | Sprocket wheel | |
| 22 | 222-45-07000 | Ladder | |
| 23 | 01010-51245 | Болт | |
| 24 | 01010-52060 | Болт | |
| 25 | 01640-22032 | Шайба | |
| 26 | 222-45-00026 | Block | |
| 27 | 01640-21626 | Шайба | |
| 28 | 01252-71650 | Bolt | |
| 29 | 222-45-00014 | Plug | |
| 30 | 222-45-00021 | Cover | |
| 31 | 01010-50825 | Болт | |
| 32 | 222-45-00030 | Bushing | |
| 33 | 222-45-14000 | Brake assy | |
| 34 | 222-45-00022 | Bolt | |
| 35 | 222-45-00031 | Hub | |
| 36 | 222-45-00023 | Cushion, spring | |
| 37 | 222-45-00024 | Nut | |
| 38 | 222-45-00032 | Bushing | |
| 39 | 222-45-00033 | Round nut | |
| 40 | 222-45-00034 | Screw | |
| 41 | 222-45-00035 | Dust boot | |
| 42 | 222-45-00036 | Brake plate | |
| 43 | 04059-01625 | Wire | |
| 44 | 01010-52050 | Болт | |
| 45 | 222-45-00042 | O-ring | |
| 46 | GB9877.1 | Seal ring | |
| 47 | 01010-50816 | Болт | |
| 48 | 222-45-00028 | Guard cover | |
| 49 | 222-45-00029 | Oil leveler | |
| 50 | GB297-94-32018 | Bearing | |
| 51 | 222-45-00025 | Brake drum | |
| 52 | 222-45-00037 | O-ring | |
| 53 | 222-45-09000 | Chain assy | |
| 54 | 222-45-00015 | Sprocket wheel | |
| 55 | 01010-51635 | Болт | |
| 56 | 222-45-00018 | Cover | |
| 57 | 222-45-00011 | Sprocket wheel | |
| 57 | 222-45-10000 | Sprocket wheel, shaft | |
| 58 | GB288-22317C | Bearing | |
| 59 | 222-45-00016 | Cover | |
| 60 | 01014-51240 | Bolt | |
| 61 | 222-45-00017 | Cover | |
| 62 | 01252-71230 | Bolt | |
| 63 | 222-45-13000 | Rim assy | |
| 64 | 222-45-04000 | Tyres assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
