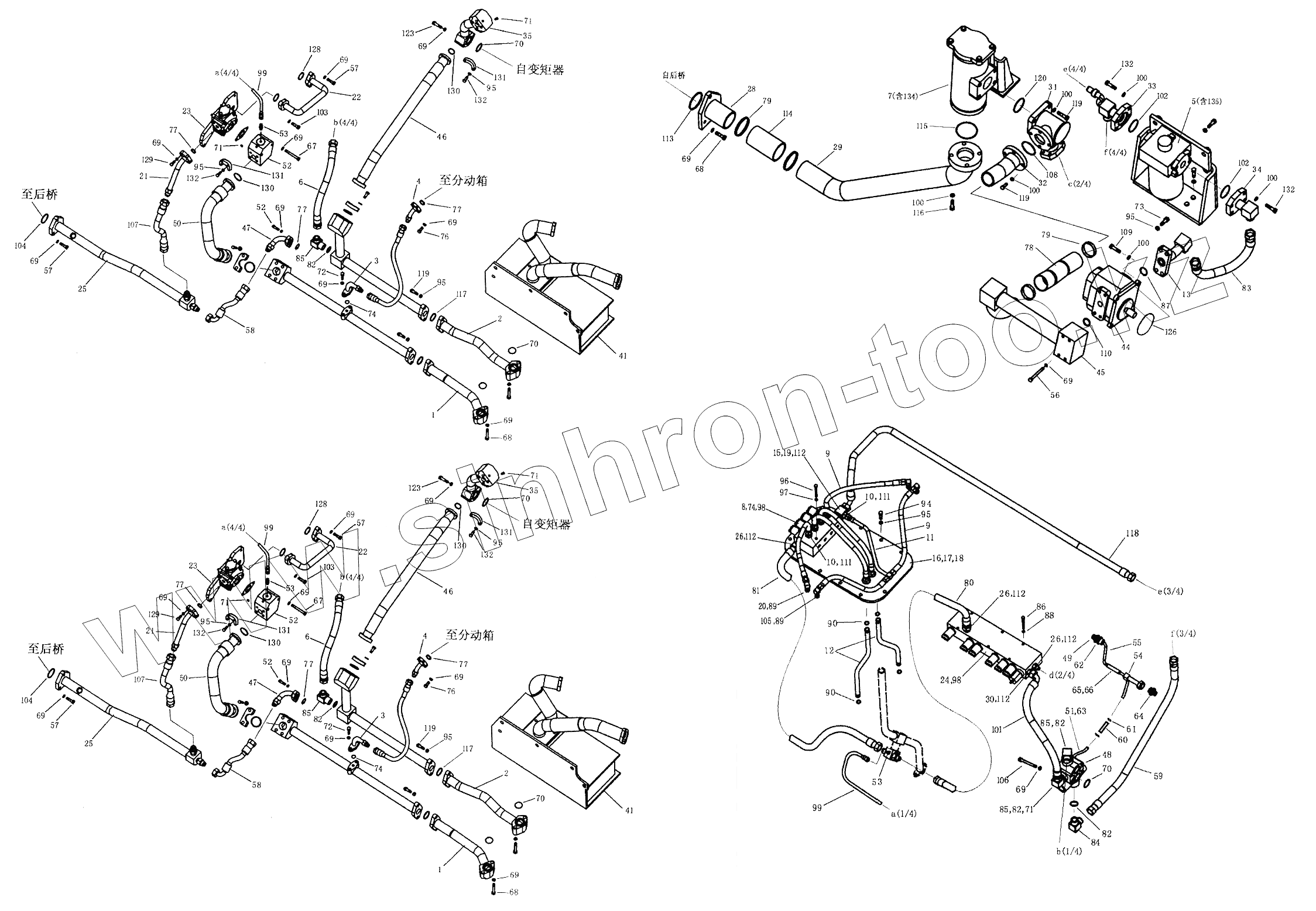

Каталог запасных частей к технике: Shantui SD42-3. POWER SHIFT & STEERING PIPING
1
1
2
2
3
3
4
4
5
6
6
7
8
9
9
10
10
11
12
13
15
16
17
18
19
20
21
21
22
22
23
23
24
25
25
26
26
26
28
29
30
31
32
33
34
35
35
41
41
44
45
46
46
47
47
48
49
50
50
51
52
52
52
52
53
53
53
54
55
56
57
57
57
57
58
58
59
60
61
62
63
64
65
66
67
67
68
68
68
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
70
70
70
70
70
71
71
71
71
71
72
72
73
74
74
74
76
76
77
77
77
77
77
77
78
79
79
80
81
82
82
82
82
82
83
84
85
85
85
85
86
87
88
89
89
90
90
94
95
95
95
95
95
95
95
95
96
97
98
98
99
99
99
100
100
100
100
100
100
101
102
102
103
103
104
104
105
106
107
107
108
109
110
111
111
112
112
112
112
112
113
114
115
116
117
117
118
119
119
119
119
120
123
123
126
128
128
129
129
130
130
130
130
131
131
131
131
132
132
132
132
132
132
134
135
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31Y-74-01000 | Tube | |
| 2 | 31Y-74-02000 | Tube | |
| 3 | 31Y-74-03000 | Tube | |
| 4 | 31Y-74-04000 | Tube | |
| 5 | 31Y-74-05000 | Filter steering | |
| 6 | 31Y-74-44000 | Hose | |
| 7 | 31Y-74-06000 | Filter magnetic | |
| 8 | 31Y-74-07000 | Valve steering & brake | |
| 9 | 31Y-74-08000 | Tube | |
| 10 | 31Y-74-00002 | Joint | |
| 11 | 31Y-74-08000 | Tube | |
| 12 | 31Y-74-10000 | Tube | |
| 13 | 31Y-74-11000 | Tube | |
| 14 | 31Y-74-00003 | Clamp | |
| 15 | 31Y-74-00004 | Joint | |
| 16 | 31Y-74-12000 | Plate | |
| 17 | 31Y-74-00005 | Cushion | |
| 18 | 195-33-11260 | Sleeve | |
| 19 | 31Y-74-00005 | Cushion | |
| 20 | 175-49-25670 | Штуцер | |
| 21 | 31Y-74-13000 | Tube | |
| 22 | 31Y-74-14000 | Tube | |
| 23 | 31Y-74-15000 | Valve lubrication | |
| 24 | 31Y-74-16000 | Power shift valve | |
| 25 | 31Y-74-17000 | Tube | |
| 26 | 31Y-74-00008 | Joint | |
| 27 | 31Y-74-18000 | Hose | |
| 28 | 31Y-74-19000 | Tube | |
| 29 | 31Y-74-20000 | Tube | |
| 30 | 31Y-74-00009 | Joint | |
| 31 | 31Y-74-20000 | Tube | |
| 32 | 31Y-74-22000 | Tube | |
| 33 | 31Y-74-23000 | Tube | |
| 34 | 31Y-74-24000 | Tube | |
| 35 | 31Y-74-25000 | Tube | |
| 36 | 31Y-74-26000 | Tube | |
| 37 | 31Y-74-27000 | Filter power shift | |
| 38 | 31Y-74-28000 | Tube | |
| 39 | 31Y-74-29000 | Tube | |
| 40 | 31Y-74-30000 | Pump power shift | |
| 41 | 31Y-74-31000 | Oil cooler | |
| 42 | 31Y-74-32000 | Tube | |
| 43 | 31Y-74-33000 | Hose | |
| 44 | 31Y-74-34000 | Pump steering | |
| 45 | 31Y-74-35000 | Tube | |
| 46 | 31Y-74-36000 | Hose | |
| 47 | 31Y-74-37000 | Tube | |
| 48 | 31Y-74-38000 | Relief valve steering | |
| 49 | 31Y-74-00010 | Joint | |
| 50 | 31Y-74-39000 | Hose | |
| 51 | 31Y-74-40000 | Tube | |
| 52 | 31Y-74-41000 | Joint | |
| 53 | 16Y-76B-00003 | Joint | |
| 54 | 31Y-74-42000 | Tube | |
| 55 | 31Y-74-43000 | Tube | |
| 56 | 01010-51080 | Болт | |
| 57 | 01010-51035 | Болт | |
| 58 | 31Y-74-47000 | Hose | |
| 59 | 31Y-74-48000 | Hose | |
| 60 | 07260-00918 | Hose | |
| 61 | 07281-00617 | Clamp | |
| 62 | 07201-61527 | Гайка | |
| 63 | 07281-00617 | Clamp | |
| 64 | 07213-81013 | Joint | |
| 65 | 07260-01414 | Hose | |
| 66 | 07281-00259 | Зажим | |
| 67 | 01010-51095 | Болт | |
| 68 | 01010-51040 | Болт | |
| 69 | 01602-21030 | Шайба | |
| 70 | 07000-13042 | Кольцо | |
| 71 | 07042-20108 | Заглушка | |
| 72 | 01010-51025 | Болт | |
| 73 | 01010-51245 | Болт | |
| 74 | 07000-12018 | Кольцо | |
| 75 | 31Y-74-54000 | Hose | |
| 76 | 01010-51045 | Болт | |
| 77 | 07000-13025 | Кольцо | |
| 78 | 07260-05822 | Hose | |
| 79 | 07281-00809 | Зажим | |
| 80 | 31Y-74-45000 | Hose | |
| 81 | 31Y-7446000 | Hose | |
| 82 | 07002-13334 | O-ring | |
| 83 | 31Y-74-49000 | Hose | |
| 84 | 07235-51034 | Elbow | |
| 85 | 07235-11034 | Elbow | |
| 86 | 01010-50885 | Bolt | |
| 87 | 07000-13028 | O-ring | |
| 88 | 07005-00812 | Washer seal | |
| 89 | 07002-12034 | O-ring | |
| 90 | 07000-13022 | O-ring | |
| 91 | 01012-51035 | bolt | |
| 92 | 01590-31012 | Nut | |
| 93 | 04050-12018 | Разводной шплинт | |
| 94 | 01010-51255 | Болт | |
| 95 | 01643-31232 | Шайба | |
| 96 | 01010-50885 | Bolt | |
| 97 | 01643-30823 | Шайба | |
| 98 | 07037-11416 | Plug | |
| 99 | 31Y-75-02000 | Hose | |
| 100 | 01602-21236 | Рессорная шайба | |
| 101 | 31Y-74-50000 | Hose | |
| 102 | 01010-51050 | Болт | |
| 103 | 01010-51050 | Болт | |
| 104 | 07000-13055 | O-ring | |
| 105 | 07235-10315 | Штуцер | |
| 106 | 01010-51085 | Болт | |
| 107 | 31Y-74-53000 | Hose | |
| 108 | 07000-13062 | Кольцо | |
| 109 | 01010-51240 | Болт | |
| 110 | 07000-13050 | O-ring | |
| 111 | 07005-01812 | Washer seal | |
| 112 | 07005-02716 | Washer seal | |
| 113 | 07000-12090 | O-ring | |
| 114 | 07260-07440 | Hose | |
| 115 | 07000-12075 | O-ring | |
| 116 | 01010-51250 | Болт | |
| 117 | 07000-13045 | Кольцо | |
| 118 | 31Y-74-51000 | Hose | |
| 119 | 01010-51235 | Болт | |
| 120 | 07000-12080 | O-ring | |
| 121 | 01010-51060 | Болт | |
| 122 | 07000-13035 | Кольцо | |
| 123 | 01010-51065 | Шайба | |
| 124 | 01010-51055 | Болт | |
| 125 | 31Y-74-52000 | Hose | |
| 126 | 07000-13095 | O-ring | |
| 127 | 01010-51245 | Болт | |
| 128 | 07000-13038 | Кольцо | |
| 129 | 01010-51030 | Болт | |
| 130 | 07000-13048 | Кольцо | |
| 131 | 07371-31465 | flange | |
| 132 | 01010-51240 | Болт | |
| 133 | 175-49-11580 | Сердечник фильтра | |
| 134 | 31Y-74-06200 | Filter | |
| 135 | 31Y-74-05120 | Filter |
