Вернуться на главную
Поиск
Каталоги запчастей к технике
Спецтехника
Shantui
Shantui SD23 (вариант)
STEEL CAB

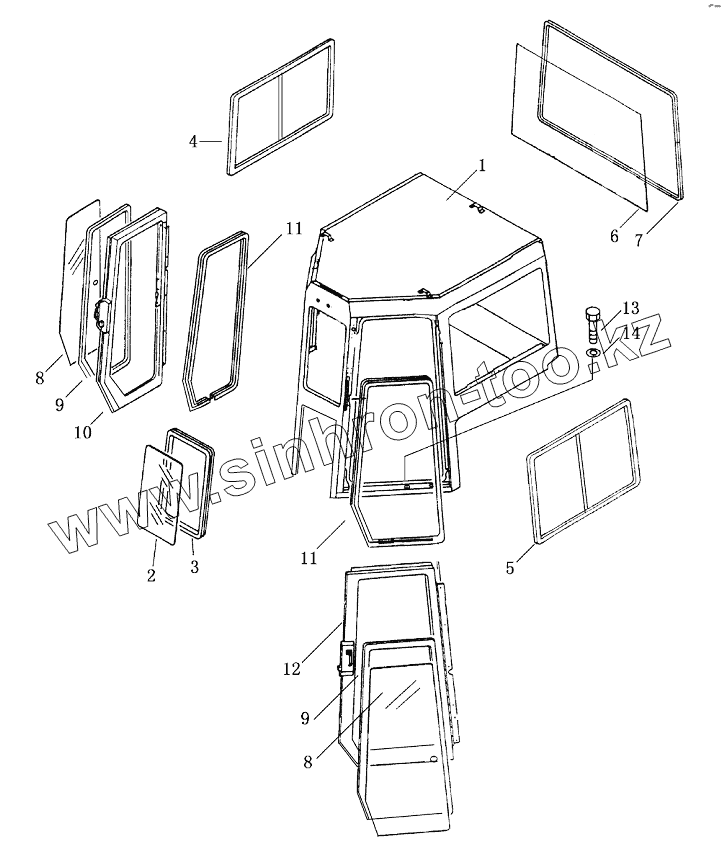

Каталог запасных частей к технике: Shantui SD23 (вариант). STEEL CAB
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
SD16 (2010)
SD16 (вариант) (2014)
SD16E (2010)
SD16L (2010)
SD22 (вариант) (2013)
SD32 (вариант) (2011)
Shantui SD10YE (2015)
Shantui SD16 (2008)
Shantui SD22 (2008)
Shantui SD23 (2003)
Shantui SD23 (вариант) (2013)
Shantui SD32 (2005)
Shantui SD42-3 (2008)
Shantui SG16-3 (2014)
Shantui SG18-3 (2014)
SL-30W (2010)
SL-50W (2013)
Каток SR12-5 (2013)
Каток SR14M-2 (2012)
Каток SR16 (2014)
Каток SR18 (2011)
Каток SR18M (2010)
Каток SR20M (2014)
Погрузчик SF15, SF18 (2010)
Погрузчик SF30 (2013)
Погрузчик SF45T (2013)
Погрузчик SF50/SF60/SF70 (2013)
Погрузчик вил. 2-2.5t (2010)
Схема
>
Не выбрано
ENGINE MOUNT
AIR CLEANER AND CAP
EXHAUST MANIFOLD AND MUFFLER
FLYWHEEL HOUSING ASS’Y
POWER TAKE OFF
P.T.O.LUBRICATING OIL PIPING
TRANSFER CASE
RADIATOR
RADIATOR PIPING AND WIND BREAK
FAN
FAN BELT
FUEL TANK
FUEL PIPING
FRONT SUPPORT
FUEL CONIROL LEVER
DECELERATOR PEDAL
FUEL CONTROL LINKAGE
UNIVERSAL JOINT
TORQUE CONVERTER (1/2)
TORQUE CONVERTER (2/2)
TRANSMISSION CASE
TRANSMISSION GEAR AND SHAFT (1/3)
TRANSMISSION GEAR AND SHAFT (2/3)
TRANSMISSION GEAR AND SHAFT (3/3)
TRANSMISSION TRANSFER
TRANSMISSION VALVE (1/2)
TRANSMISSION VALVE (2/2)
TRANSMISSION VALVE COVER AND LEVER
STEERING CASE AND MAIN FRAME
BEVEL GEAR AND SHAFT
STEERING CLUTCH
BRAKE BAND AND LINKAGE
STEERING CASE COVER
BRAKE BOOSTER
FINAL DRIVE CASE AND GEAR (1/2)
FINAL DRIVE CASE AND GEAR (2/2)
SPROCKET AND SHAFT
TRACK FRAME
RECOIL SPRING
TRACK FRAME COVER
IDLER
TRACK ROLLER
TRACK ROLLER GUARD
CARRIER ROLLER
TRACK SHOE (LUBRICATE TYPE)
TRACK SHOE (LUBRICATE TYPE) SD23S
TRACK SHOE (MASTER PIN TYPE)
TRANSMISSION CONTROL LEVER
TRANSMISSION CONTROL LINKAGE (1/3)
TRANSMISSION CONTROL LINKAGE (2/3)
TRANSMISSION CONTROL LINKAGE (3/3)
STEERING CONTROL LEVER
STEERING AND BRAKE LINKAGE (1/2)
STEERING AND BRAKE LINKAGE (2/2)
BRAKE PEDAL
PARKING BRAKE LEVER
STEERING CONTROL VALVE
MAIN RELIEF VALVE
TRANSMISSION OIL FILTER
OIL STRAINER
STEERING PIPING (1/3)
STEERING PIPING (2/3)
STEERING PIPING (3/3)
TRANSMISSION PUMP
STEERING PUMP
TORQUE CONVERTER AND OIL COOLER PIPING
TORQFLOW TRANSMISSION PIPING
BRAKE PIPING
CONCENTRATED PIPING
TEST PRESSURE PIPING
FRONT ENGINEHOOD
ENGINE HOOD
FENDER
SUPPORT
REAR COVER
FLOOR PLATE
BATTERY COVER
BOTTOM GUARD
ROLL OVER PROTECTIVE STRUCTURE
ROLLOVER PROTECTIVE STRUCTURE BRACKET
EQUALIZER BAR
WORK VALVE MOUNT
WORK VALVE MOUNT (WITH THREE SHANK RIPPER)
WORK EQUIPMENT VALVE MOUNT (WITH SINGLE SHANK RIPPER)
HYDRAULIC TANK
CYLINDER STAY
HYDRAULIC PUMP (1/2)
HYDRAULIC PUMP (2/2)
BLADE CONTROL VALVE (1/5)
BLADE CONTROL VALVE (2/5)
BLADE CONTROL VALVE (3/5)
BLADE CONTROL VALVE (4/5)
BLADE CONTROL VALVE (5/5)
THREE SHANK RIPPER CONTROL VALVE (1/2)
THREE SHANK RIPPER CONTROL VALVE (2/2)
SINGLE SHANK RIPPER CONTROL VALVE (1/2)
SINGLE SHANK RIPPER CONTROL VALVE (2/2)
BLADE LIFT CYLINDER (1/2)
BLADE LIFT CYLINDER (2/2)
HYDRAULIC PIPING (TANK TO PUMP)
HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2)
HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2)
HYDRAULIC PIPING (TANK TO TILT CYLINDER) (SD23, SD23E, SD23D)
HYDRAULIC PIPING (TANK TO CYLINDER FOR SD23S, SD23R)
HYDRAULIC PIPING (TANK TO THREE SHANK RIPPER CYLINDER)
HYDRAULIC PIPING (TANK TO SINGLE SHANK RIPPER CYLINDER)
BLADE CONTROL LEVER
BLADE CONTROL LINKAGE
ANGLE BLADE CONTROL LEVER
ANGLE BLADE CONTROL LINKAGE
THREE SHANK RIPPER CONTROL LEVER
THREE SHANK RIPPER CONTROL LINKAGE
SINGLE SHANK RIPPER CONTROL LEVER (1/3)
SINGLE SHANK RIPPER CONTROL LEVER (2/3)
SINGLE SHANK RIPPER CONTROL LEVER (3/3)
STRAIGHT TILT BLADE
STRAIGHT TILT FRAME
BLADE TILT CYLIDER
BLADE TILT CYLINDER PIPING
ANGLE BLADE
C-FRAME
U-BLADE
THREE SHANK RIPPER
THREE SHANK RIPPERRIPPER CYLINDER
THREE SHANK RIPPER PIPING
SINGLE SHANK RIPPER
SINGLE SHANK RIPPER LIFT CYLINDER
SINGLE SHANK RIPPER TILT CYLINDER
SINGLE SHANK RIPPER PIPING
DRAWBAR
DRAWBAR (SD23, SD23E, SD23D)
CANOPY
STEEL CAB
DRAWBAR (For SD23S)
ELECTRICAL SYSTEM (1/2)
ELECTRICAL SYSTEM (2/2)
INSTRUMENT BOX
RELAY AND FUSE PANEL
BATTERY AND RELAY SWITCH
MARKS AND PLATES
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
17Y-56-00000
17Y-56-00000
steel cab
1
17Y-56-01000
cab
2
17Y-56-00002
strip
3
17Y-56-00001
Strip
4
17Y-56-03000
door, R.H
5
17Y-56-02000
door, L.H
6
17Y-56-00011
Glass
7
17Y-56-00010
Strip
8
23Y-56B-00001
Glass
9
23Y-56B-08000
Glass gib
10
23Y-56B-03000
Door
11
23Y-56B-06000
Stamping steel ribbon
12
23Y-56B-02000
Door
13
01010-51455
Болт
14
01643-31445
Уплотнительная шайба
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/133.gif)
