P.T.O.LUBRICATING OIL PIPING

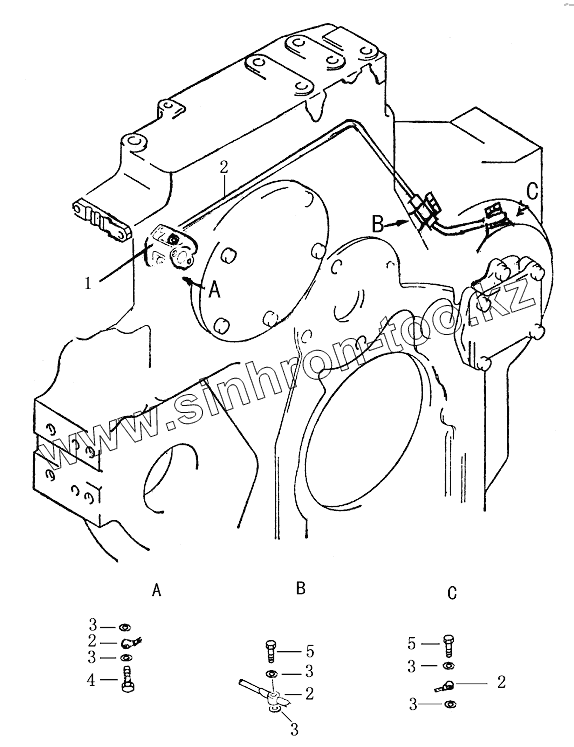

Каталог запасных частей к технике: Shantui SD23 (вариант). P.T.O.LUBRICATING OIL PIPING
