17Y-56-00000
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали

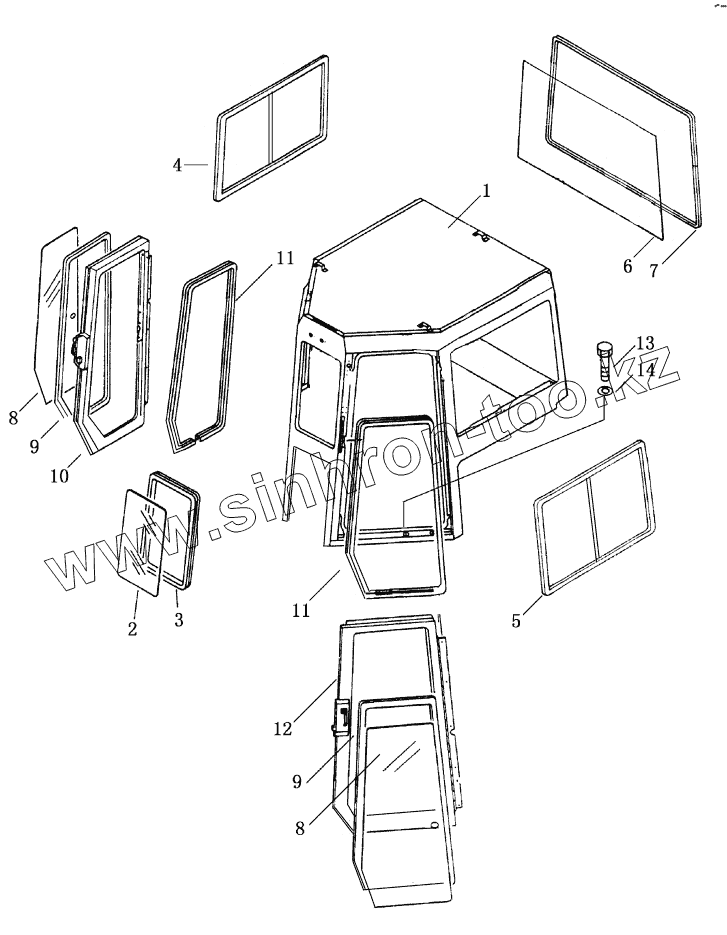

17Y-56-00000
17Y-56-00000
steel cab
1
17Y-56-01000
cab
2
17Y-56-00005
glass
3
17Y-56-00004
strip
4
17Y-56-05000
window assy R. Н
5
17Y-56-04000
Шарнир
6
17Y-56-00009
glass
7
17Y-56-00008
strip
8
17Y-56-00003
glass
9
17Y-56-00002
strip
10
17Y-56-03000
door, R.H
11
17Y-56-08000
Крюк подъемный
12
17Y-56-02000
door, L.H
13
01010-51455
Болт
14
01643-31445
Уплотнительная шайба
