Каталог запасных частей к технике: Shantui SD23. BLADE CONTROL VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SD16 (2010) SD16 (вариант) (2014) SD16E (2010) SD16L (2010) SD22 (вариант) (2013) SD32 (вариант) (2011) Shantui SD10YE (2015) Shantui SD16 (2008) Shantui SD22 (2008) Shantui SD23 (2003) Shantui SD23 (вариант) (2013) Shantui SD32 (2005) Shantui SD42-3 (2008) Shantui SG16-3 (2014) Shantui SG18-3 (2014) SL-30W (2010) SL-50W (2013) Каток SR12-5 (2013) Каток SR14M-2 (2012) Каток SR16 (2014) Каток SR18 (2011) Каток SR18M (2010) Каток SR20M (2014) Погрузчик SF15, SF18 (2010) Погрузчик SF30 (2013) Погрузчик SF45T (2013) Погрузчик SF50/SF60/SF70 (2013) Погрузчик вил. 2-2.5t (2010)

Схема > Не выбрано ENGINE MOUNT FRONT SUPPORT AIR CLEANER AND CAP EXHAUST MANIFOLD AND MUFFLER FLYWHEEL HOUSING ASS’Y POWER TAKE OFF P.T.O.LUBRICATING OIL PIPING TRANSFER CASE RADIATOR RADIATOR PIPING AND WIND BREAK FAN FAN BELT FUEL TANK FUEL PIPING FUEL CONIROL LEVER DECELERATOR PEDAL FUEL CONTROL LINKAGE UNIVERSAL JOINT TORQUE CONVERTER TORQUE CONVERTER TRANSMISSION CASE TRANSMISSION GEAR AND SHAFT TRANSMISSION GEAR AND SHAFT TRANSMISSION GEAR AND SHAFT TRANSMISSION TRANSFER TRANSMISSION VALVE TRANSMISSION VALVE TRANSMISSION VALVE COVER AND LEVER STEERING CASE AND MAIN FRAME BEVEL GEAR AND SHAFT STEERING CLUTCH BRAKE BAND AND LINKAGE STEERING CASE COVER BRAKE BOOSTER FINAL DRIVE CASE AND GEAR FINAL DRIVE CASE AND GEAR SPROCKET AND SHAFT TRACK FRAME RECOIL SPRING TRACK FRAME COVER IDLER TRACK ROLLER TRACK ROLLER GUARD CARRIER ROLLER TRACK SHOE (LUBRICATE TYPE) SD23S TRACK SHOE (LUBRICATE TYPE) TRACK SHOE (MASTER PIN TYPE) TRANSMISSION CONTROL LEVER TRANSMISSION CONTROL LINKAGE TRANSMISSION CONTROL LINKAGE TRANSMISSION CONTROL LINKAGE STEERING CONTROL LEVER STEERING AND BRAKE LINKAGE STEERING AND BRAKE LINKAGE BRAKE PEDAL PARKING BRAKE LEVER STEERING CONTROL VALVE MAIN RELIEF VALVE TRANSMISSION OIL FILTER OIL STRAINER STEERING PIPING STEERING PIPING STEERING PIPING TRANSMISSION PUMP STEERING PUMP TOROUE CONVERTER AND OIL COOLER PIPING TORQFLOW TRANSMISSION PIPING BRAKE PIPING CONCENTRATED PIPING TEST PRESSURE PIPING FRONT HOOD ENGINE HOOD FENDER SUPPORT REAR COVER FLOOR PLATE BATTERY COVER BOTTOM GUARD ROLL OVER PROTECTIVE STRUCTURE ROLLOVER PROTECTIVE STRUCTURE BRACKET EQUALIZER BAR WORK VALVE MOUNT WORK VALVE MOUNT (WITH THREE SHANK RIPPER) WORK EQUIPMENT VALVE MOUNT (WITH SINGLE SHANK RIPPER) HYDRAULIC TANK CYLINDER STAY WORK EQUIPMENT PUMP WORK EQUIPMENT PUMP BLADE CONTROL VALVE BLADE CONTROL VALVE BLADE CONTROL VALVE BLADE CONTROL VALVE BLADE CONTROL VALVE THREE SHANK RIPPER CONTROL VALVE THREE SHANK RIPPER CONTROL VALVE SINGLE SHANK RIPPER CONTROL VALVE SINGLE SHANK RIPPER CONTROL VALVE BLADE LIFT CYLINDER BLADE LIFT CYLINDER HYDRAULIC PIPING (TANK TO PUMP) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) HYDRAULIC PIPING (TANK TO TILT CYLINDER) HYDRAULIC PIPING (TANK TO CYLINDER) FOR SD23S) HYDRAULIC PIPING(TANK TO THREE SHANK RIPPER CYLINDER) HYDRAULIC PIPING(TANK TO THREE SHANK RIPPER CYLINDER) BLADE CONTROL LEVER BLADE CONTROL LINKAGE ANGLE BLADE CONTROL LEVER ANGLE BLADE CONTROL LINKAGE THREE SHANK RIPPER CONTROL LEVER THREE SHANK RIPPER CONTROL LINKAGE SINGLE SHANK RIPPER CONTROL LEVER SINGLE SHANK RIPPER CONTROL LEVER SINGLE SHANK RIPPER CONTROL LEVR STRAIGHT TILT BLADE STRAIGHT TILT FRAME BLADE TILT CYLIDER BLADE TILT CYLINDER PIPING STRAIGHT TILT FRAME ANGLE BLADE C-FRAME U-BLADE THREE SHANK RIPPER THREE SHANK RIPPERRIPPER CYLINDER THREE SHANK RIPPER PIPING SINGLE SHANK RIPPER SINGLE SHANK RIPPER LIFT CYLINDER SINGLE SHANK RIPPER TILT CYLINDER SINGLE SHANK RIPPER PIPING DRAW BAR CANOPY STEEL CAB DRAW BAR (For SD23S) ELECTRICAL SYSTEM ELECTRICAL SYSTEM INSTRUMENT BOX RELAY AND FUSE PANEL BATTERY AND RELAY SWITCH

1

2

3

4

5

6

7

8

9

10

11

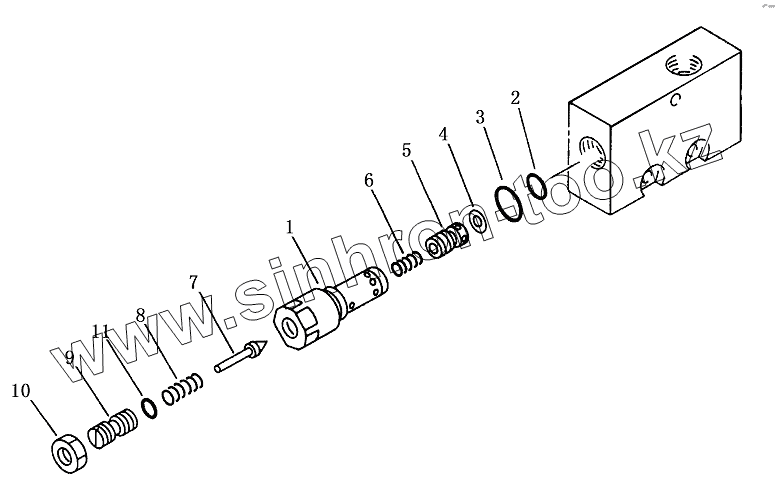

Позиция на иллюстрации	Заводской номер детали		Название детали
709-62-31103	709-62-31103		valve assy
700-24-52001	700-24-52001		relief valve assy
1	700-20-51410		sleeve
2	700-22-11410		O-ring
3	07002-02434		Кольцо
4	700-20-51240		ring
5	700-20-51420		valve
6	700-20-51430		spring
7	700-80-61190		pоppеt
8	700-20-51350		spring
9	700-20-51340		screw
10	01583-11408		nut
11	07000-02011		Кольцо

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
