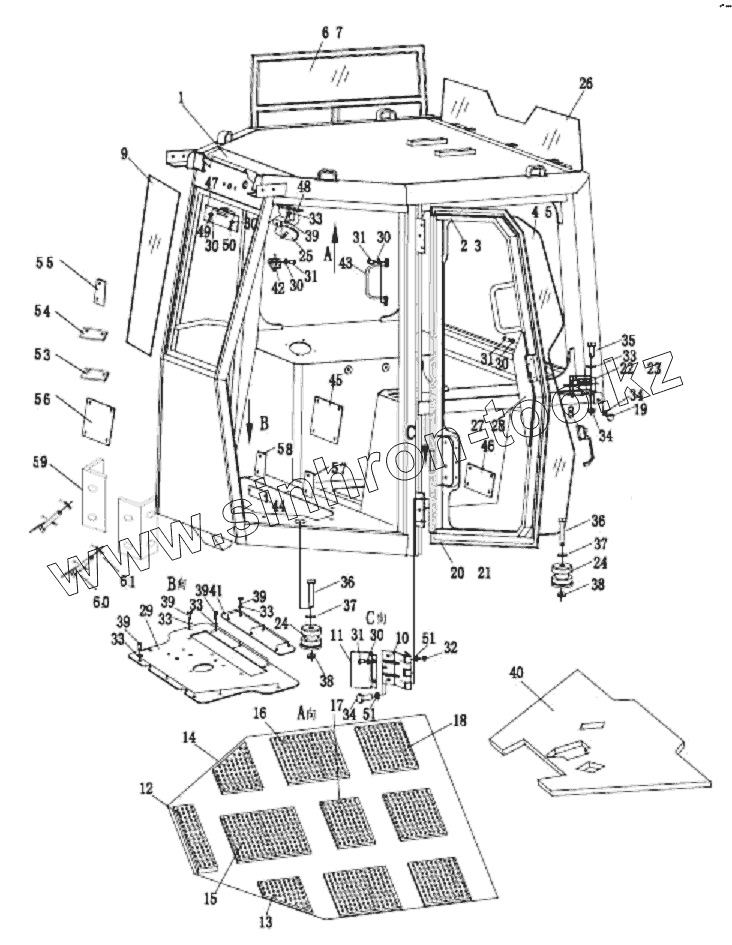

Каталог запасных частей к технике: Shantui SD10YE. CAB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
30
30
30
30
30
31
31
31
31
32
33
33
33
33
33
33
34
34
34
35
36
36
37
37
38
38
39
39
39
39
39
40
41
42
43
44
45
46
47
48
49
50
51
51
53
54
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 121-56-01000 | Frame | |
| 2 | 121-56-02000 | Door | |
| 3 | 121-56-03000 | Door | |
| 4 | 121-56-00001 | Glass door | |
| 5 | 121-56-00002 | Glass door | |
| 6 | 121-56-04000 | Window | |
| 7 | 121-56-05000 | Window | |
| 8 | 121-56-06000 | Lock assy | |
| 9 | 121-56-00003 | Glass front | |
| 10 | 121-56-07000 | Hinge | |
| 11 | 121-56-00004 | Hinge box | |
| 12 | 121-56-00005 | Sponge | |
| 13 | 121-56-00006 | Sponge | |
| 14 | 121-56-00007 | Sponge | |
| 15 | 121-56-00008 | Sponge | |
| 16 | 121-56-00009 | Sponge | |
| 17 | 121-56-00010 | Sponge | |
| 18 | 121-56-00011 | Sponge | |
| 19 | 222-56-11000 | Block | |
| 20 | 121-56-00012 | Seal strip | |
| 21 | 121-56-00013 | Seal strip | |
| 22 | 121-56-08000 | Lock | |
| 23 | 121-56-09000 | Lock | |
| 24 | 23Y-51B-24000 | Damping seat | |
| 25 | 16Y-56C-14000 | Mirror | |
| 26 | 121-56-00014 | Glass | |
| 27 | 121-56-00015 | Cover | |
| 28 | 121-56-00016 | Cover | |
| 29 | 121-56-10000 | Plate | |
| 30 | 01640-20610 | Washer | |
| 31 | 01235-40610 | Bolt | |
| 32 | 01010-51225 | Болт | |
| 33 | 01643-31032 | Шайба | |
| 34 | 01580-01008 | Гайка | |
| 35 | 01010-51045 | Болт | |
| 36 | 01011-52040 | Bolt | |
| 37 | 01643-32060 | Шайба | |
| 38 | 01580-02016 | Гайка | |
| 39 | 01010-51020 | Болт | |
| 40 | 121-56-11000 | Pad, floor plate | |
| 41 | 121-56-12000 | Plate | |
| 42 | 222-56-25000 | Pothook | |
| 43 | 222-56-10000 | Handle | |
| 44 | 121-56-00017 | Pad | |
| 45 | 121-56-00018 | Pad | |
| 46 | 121-56-00019 | Pad | |
| 47 | 185-56-14000 | Shield | |
| 48 | 185-56-13000 | Bracket | |
| 49 | 01010-50618 | Bolt | |
| 50 | 01010-50630 | Bolt | |
| 51 | 01643-31232 | Шайба | |
| 52 | 23Y-51B-00010 | Washer | |
| 53 | 23Y-51B-13102 | Pad | |
| 54 | 121-56-00029 | Pad | |
| 55 | 121-56-00026 | Pad | |
| 56 | 185-07-13050 | Distributing box pad | |
| 57 | 121-56-00028 | Pad | |
| 58 | 121-56-00027 | Pad | |
| 59 | 121-56-17000 | Plate | |
| 60 | 01010-50818 | Bolt | |
| 61 | 01642-20810 | Шайба |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
