TILT PIPING (OUTSIDE THE MAIN SYSTEM)

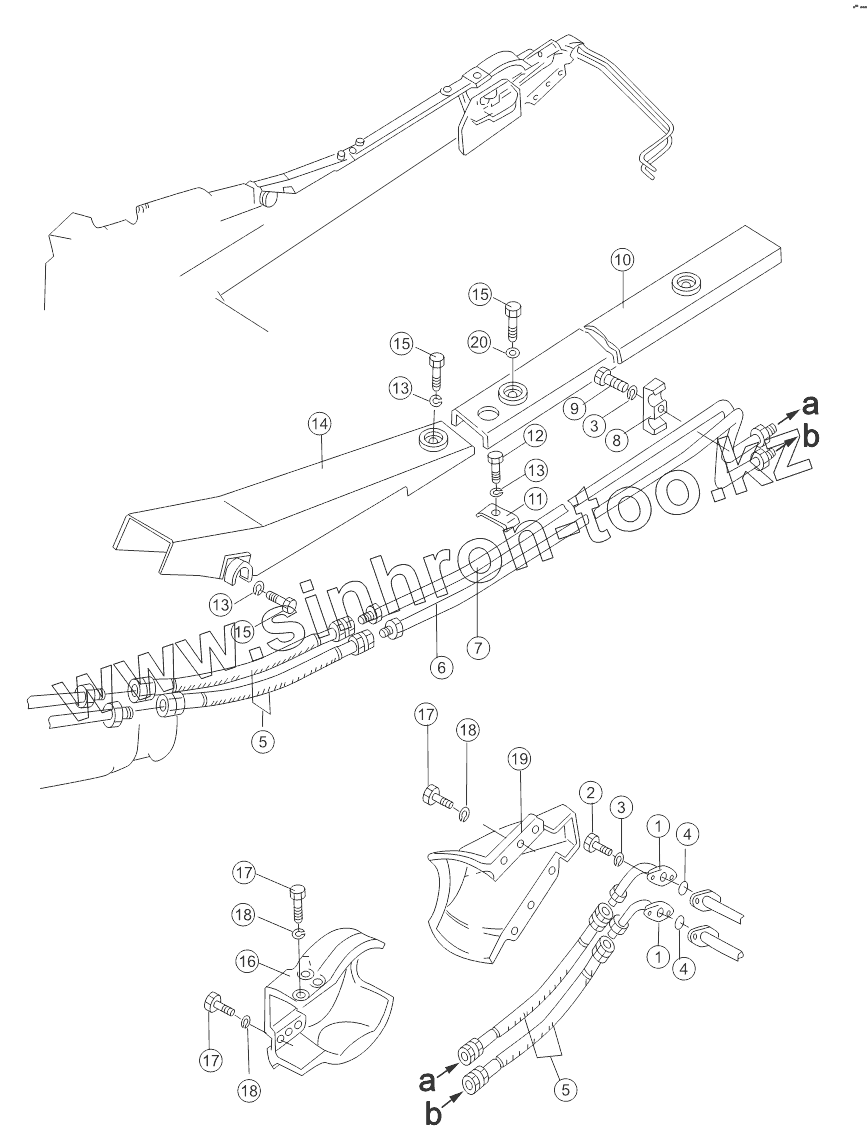

Каталог запасных частей к технике: Shantui SD32 (вариант). TILT PIPING (OUTSIDE THE MAIN SYSTEM)
