Каталог запасных частей к технике: Shantui SD32 (вариант). OPERATOR'S SEAT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SD16 (2010) SD16 (вариант) (2014) SD16E (2010) SD16L (2010) SD22 (вариант) (2013) SD32 (вариант) (2011) Shantui SD10YE (2015) Shantui SD16 (2008) Shantui SD22 (2008) Shantui SD23 (2003) Shantui SD23 (вариант) (2013) Shantui SD32 (2005) Shantui SD42-3 (2008) Shantui SG16-3 (2014) Shantui SG18-3 (2014) SL-30W (2010) SL-50W (2013) Каток SR12-5 (2013) Каток SR14M-2 (2012) Каток SR16 (2014) Каток SR18 (2011) Каток SR18M (2010) Каток SR20M (2014) Погрузчик SF15, SF18 (2010) Погрузчик SF30 (2013) Погрузчик SF45T (2013) Погрузчик SF50/SF60/SF70 (2013) Погрузчик вил. 2-2.5t (2010)

Схема > Не выбрано ENGINE MOUNTING TRANSFER CASE FLYWHEEL HOUSING ASSY POWER TAKE OFF PTO LUBRICATING OIL PIPING FRONT BRACKET EXHAUST PIPE AND MUFFLER AIR CLEANER AND CAP EXHAUST PIPE AND MUFFLER (GOING WITH THE NATIONAL II-ENGINE) AIR CLEANER AND CAP (GOING WITH THE NATIONAL II-ENGINE) FUEL CONTROL LEVER FUEL CONTROL LINKAGE DECELERATOR PEDAL FAN RADIATOR RADIATOR FAN GUARD AND NET RADIATOR AND PIPING (GOING WITH THE NATIONAL II-ENGINE) RADIATOR AND PIPING (GOING WITH THE NATIONAL II-ENGINE) OIL COOLER ASSY FUEL TANK FUEL PIPING FILLING PUMP ASSY UNIVERSAL JOINT TORQUE CONVERTER HOUSING AND VALVE TURBINE AND STATOR TORQUE TRANSMISSION CASE TRANSMISSION GEAR AND SHAFT (1/2) TRANSMISSION GEAR AND SHAFT (2/2) TRANSMISSION CASE TRANSMISSION CONTROL VALVE COVER AND VALVE CONTROL LEVER LUBICATING VALVE GEAR SHIFT LEVER (1/2) GEAR SHIFT LEVER (2/2) TRANSMISSION PUMP FINE FILTER ASSY TORQUE CONVERTER PIPING SYSTEM TORQUE TRANSMISSION PIPING SYSYTEM TORQUE CONVERTER PIPING SYSTEM (GOING WITH THE NATIONAL II-ENGINE) TORQUE CONVERTER PIPING SYSTEM (GOING WITH THE NATIONAL II-ENGINE) OIL COOLER PIPING SYSYTEM (GOING WITH THE NATIONAL II-ENGINE) MAIN FRAME AND STEERING CASE OIL FILTER AND LEVEL GAUGE MAIN FRAME AND STEERING CASE (GOING WITH THE NATIONAL II-ENGINE) OIL FILTER AND LEVEL GAUGE (GOING WITH THE NATIONAL II-ENGINE) BEVEL GEAR AND SHAFT STEERING CLUTCH ASSY BRAKE BAND AND LINKAGE BRAKE BOOSTER STEERING CONTROL LEVER BRAKE PEDAL BRAKE LINKAGE PARKING BRAKE STEERING PUMP COARSE STRAINER ASSY STEERING VALVE SAFETY VALVE BRAKE PIPING SYSTEM STEERING PIPING SYSTEM (1/2) STEERING PIPING SYSTEM (2/2) PRESSURE MEASUREMENT PIPING EQUALIZER BAR ASSY FINAL DRIVE CASE FINAL DRIVE GEAR SHAFT AND SPROCKET TRACK FRAME ASSY TENSION DEVICE TRACK FRAME COVER TRACK ROLLER'S GUARD PLATE FRONT IDLER ASSY TRACK ROLLER ASSY CARRIER ROLLER ASSY TRACK ASSY RADIATOR GUARD ENGINE GUARD RADIATOR GUARD (GOING WITH THE NATIONAL II-ENGINE) ENGINE GUARD (GOING WITH THE NATIONAL II-ENGINE) FENDER SUPPORT COVER, REAR FRAME, FLOOR PLATE ENGINE GUARD, SIDE BOTTOM GUARD PLATE ASSY OIL CYLINDER SUPPORT OIL CYLINDER SUPPORT (GOING WITH THE NATIONAL II-ENGINE) BLADE LIFT CYLINDER TILT OIL CYLINDER WORK PUMP ASSY HYDRAULIC TANK (1/2) HYDRAULIC TANK (2/2) BLADE LIFT AND RIPPER CONTROL VALVE (1/2) BLADE LIFT AND RIPPER CONTROL VALVE (2/2) TILT OIL CYLINDER CONTROL VALVE ASSY HYDRAULIC PIPING ASSY BLADE LIFT PIPING (1/2) BLADE LIFT PIPING (2/2) BLADE LIFT CYLINDER QUICK DROP VALVE TILT PIPING (WITHIN THE MAIN SYSTEM) TILT PIPING (OUTSIDE THE MAIN SYSTEM) TILT OIL CYLINDER ASSY RIPPER PIPING RIPPER CYLINDER PIPING DC & PC VALVE ASSY RIPPER LIFT CYLINDER RIPPER TILT OIL CYLINDER LIFT CONTROL SERVO VALVE TILT AND RIPPER CONTROL SERVO VALVE SERVO PIPING ASSY SERVO VALVE AND VALVE SEAT BLADE CONTROL LEVER BLADE CONTROL LINKAGE BLADE TILT AND RIPPER CONTROL LINKAGE RIPPER CONTROL LEVER (1/2) RIPPER CONTROL LEVER (2/2) STRAIGHT TILT BLADE STRAIGHT TILT FRAME ANGLE BLADE C-FRAME SEMI-U BLADE SEMI-U BLADE FRAME TOWING DEVICE TRIPLE-SHANK RIPPLER ASSY SINGLE-SHANK RIPPER ASSY ELECTRICAL SYSTEM (1/2) ELECTRICAL SYSTEM (2/2) METER BOX RELAY AND FUSE BOX BATTERY AND RELAY CAB ELECTRIC ELECTRICAL SYSTEM (1/2) ELECTRICAL SYSTEM (2/2) METER BOX RELAY AND FUSE BOX BATTERY AND RELAY OPERATOR'S SEAT FRAME, ROPS CAB MARKS AND PLATES LUBRICATING AND TRACK RECOIL SYSTEM LUBRICATING AND TRACK RECOIL SYSTEM

1

2

3

4

5

6

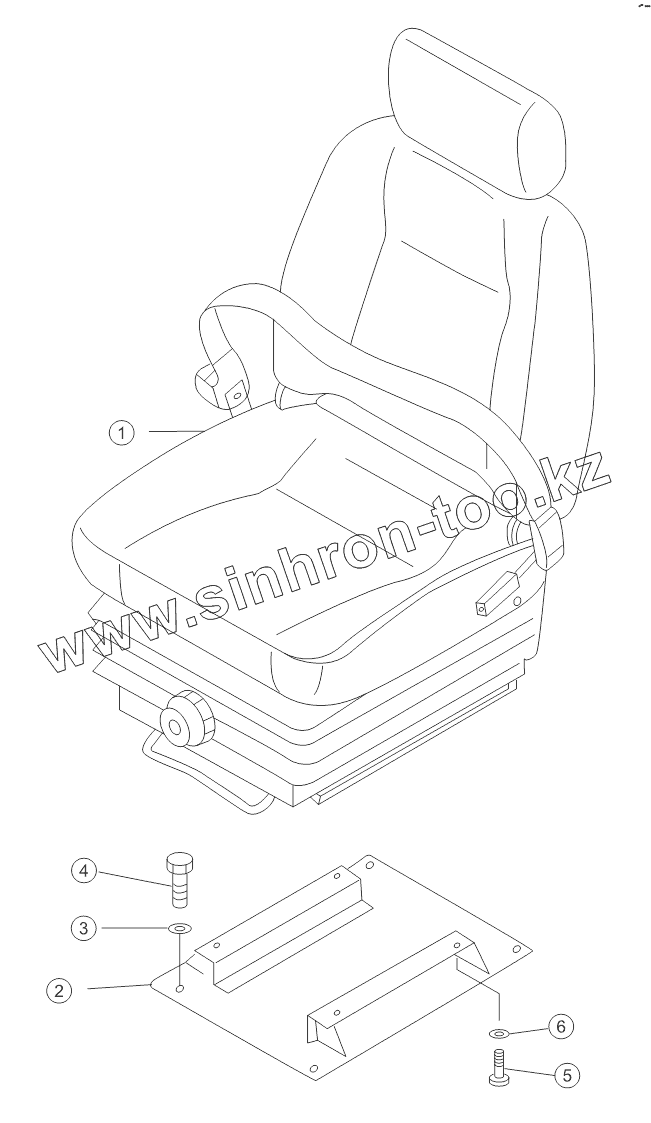

Позиция на иллюстрации	Заводской номер детали		Название детали
1	23Y-53B-10000		Operator's seat
2	171-53-01000		seat
3	01643-31232		Шайба
4	01010-51225		Болт
5	01010-50825		Болт
6	01643-30823		Шайба

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
