Вернуться на главную
Поиск
Каталоги запчастей к технике
Спецтехника
Shantui
SD32 (вариант)
MAIN FRAME AND STEERING CASE

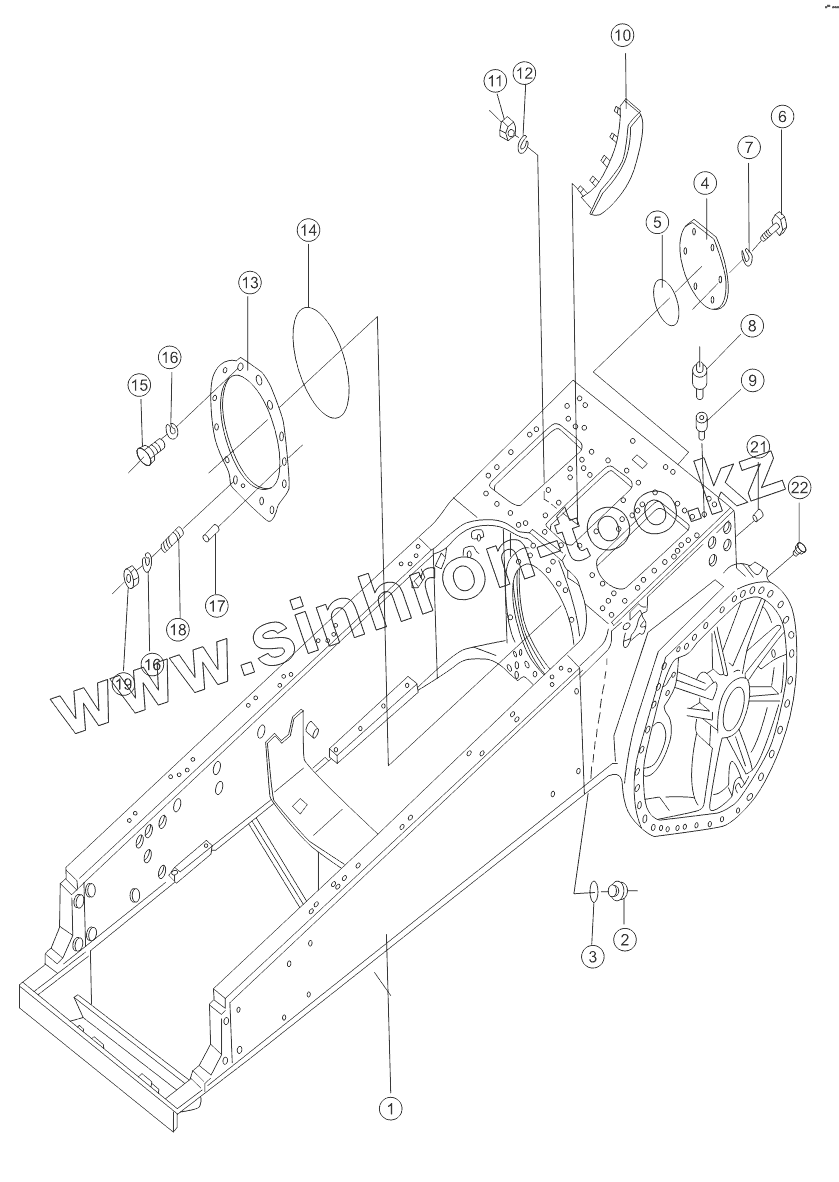

Каталог запасных частей к технике: Shantui SD32 (вариант). MAIN FRAME AND STEERING CASE
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
SD16 (2010)
SD16 (вариант) (2014)
SD16E (2010)
SD16L (2010)
SD22 (вариант) (2013)
SD32 (вариант) (2011)
Shantui SD10YE (2015)
Shantui SD16 (2008)
Shantui SD22 (2008)
Shantui SD23 (2003)
Shantui SD23 (вариант) (2013)
Shantui SD32 (2005)
Shantui SD42-3 (2008)
Shantui SG16-3 (2014)
Shantui SG18-3 (2014)
SL-30W (2010)
SL-50W (2013)
Каток SR12-5 (2013)
Каток SR14M-2 (2012)
Каток SR16 (2014)
Каток SR18 (2011)
Каток SR18M (2010)
Каток SR20M (2014)
Погрузчик SF15, SF18 (2010)
Погрузчик SF30 (2013)
Погрузчик SF45T (2013)
Погрузчик SF50/SF60/SF70 (2013)
Погрузчик вил. 2-2.5t (2010)
Схема
>
Не выбрано
ENGINE MOUNTING
TRANSFER CASE
FLYWHEEL HOUSING ASSY
POWER TAKE OFF
PTO LUBRICATING OIL PIPING
FRONT BRACKET
EXHAUST PIPE AND MUFFLER
AIR CLEANER AND CAP
EXHAUST PIPE AND MUFFLER (GOING WITH THE NATIONAL II-ENGINE)
AIR CLEANER AND CAP (GOING WITH THE NATIONAL II-ENGINE)
FUEL CONTROL LEVER
FUEL CONTROL LINKAGE
DECELERATOR PEDAL
FAN
RADIATOR
RADIATOR FAN GUARD AND NET
RADIATOR AND PIPING (GOING WITH THE NATIONAL II-ENGINE)
RADIATOR AND PIPING (GOING WITH THE NATIONAL II-ENGINE)
OIL COOLER ASSY
FUEL TANK
FUEL PIPING
FILLING PUMP ASSY
UNIVERSAL JOINT
TORQUE CONVERTER HOUSING AND VALVE
TURBINE AND STATOR
TORQUE TRANSMISSION CASE
TRANSMISSION GEAR AND SHAFT (1/2)
TRANSMISSION GEAR AND SHAFT (2/2)
TRANSMISSION CASE
TRANSMISSION CONTROL VALVE
COVER AND VALVE CONTROL LEVER
LUBICATING VALVE
GEAR SHIFT LEVER (1/2)
GEAR SHIFT LEVER (2/2)
TRANSMISSION PUMP
FINE FILTER ASSY
TORQUE CONVERTER PIPING SYSTEM
TORQUE TRANSMISSION PIPING SYSYTEM
TORQUE CONVERTER PIPING SYSTEM (GOING WITH THE NATIONAL II-ENGINE)
TORQUE CONVERTER PIPING SYSTEM (GOING WITH THE NATIONAL II-ENGINE)
OIL COOLER PIPING SYSYTEM (GOING WITH THE NATIONAL II-ENGINE)
MAIN FRAME AND STEERING CASE
OIL FILTER AND LEVEL GAUGE
MAIN FRAME AND STEERING CASE (GOING WITH THE NATIONAL II-ENGINE)
OIL FILTER AND LEVEL GAUGE (GOING WITH THE NATIONAL II-ENGINE)
BEVEL GEAR AND SHAFT
STEERING CLUTCH ASSY
BRAKE BAND AND LINKAGE
BRAKE BOOSTER
STEERING CONTROL LEVER
BRAKE PEDAL
BRAKE LINKAGE
PARKING BRAKE
STEERING PUMP
COARSE STRAINER ASSY
STEERING VALVE
SAFETY VALVE
BRAKE PIPING SYSTEM
STEERING PIPING SYSTEM (1/2)
STEERING PIPING SYSTEM (2/2)
PRESSURE MEASUREMENT PIPING
EQUALIZER BAR ASSY
FINAL DRIVE CASE
FINAL DRIVE GEAR SHAFT AND SPROCKET
TRACK FRAME ASSY
TENSION DEVICE
TRACK FRAME COVER
TRACK ROLLER'S GUARD PLATE
FRONT IDLER ASSY
TRACK ROLLER ASSY
CARRIER ROLLER ASSY
TRACK ASSY
RADIATOR GUARD
ENGINE GUARD
RADIATOR GUARD (GOING WITH THE NATIONAL II-ENGINE)
ENGINE GUARD (GOING WITH THE NATIONAL II-ENGINE)
FENDER
SUPPORT
COVER, REAR
FRAME, FLOOR PLATE
ENGINE GUARD, SIDE
BOTTOM GUARD PLATE ASSY
OIL CYLINDER SUPPORT
OIL CYLINDER SUPPORT (GOING WITH THE NATIONAL II-ENGINE)
BLADE LIFT CYLINDER
TILT OIL CYLINDER
WORK PUMP ASSY
HYDRAULIC TANK (1/2)
HYDRAULIC TANK (2/2)
BLADE LIFT AND RIPPER CONTROL VALVE (1/2)
BLADE LIFT AND RIPPER CONTROL VALVE (2/2)
TILT OIL CYLINDER CONTROL VALVE ASSY
HYDRAULIC PIPING ASSY
BLADE LIFT PIPING (1/2)
BLADE LIFT PIPING (2/2)
BLADE LIFT CYLINDER
QUICK DROP VALVE
TILT PIPING (WITHIN THE MAIN SYSTEM)
TILT PIPING (OUTSIDE THE MAIN SYSTEM)
TILT OIL CYLINDER ASSY
RIPPER PIPING
RIPPER CYLINDER PIPING
DC & PC VALVE ASSY
RIPPER LIFT CYLINDER
RIPPER TILT OIL CYLINDER
LIFT CONTROL SERVO VALVE
TILT AND RIPPER CONTROL SERVO VALVE
SERVO PIPING ASSY
SERVO VALVE AND VALVE SEAT
BLADE CONTROL LEVER
BLADE CONTROL LINKAGE
BLADE TILT AND RIPPER CONTROL LINKAGE
RIPPER CONTROL LEVER (1/2)
RIPPER CONTROL LEVER (2/2)
STRAIGHT TILT BLADE
STRAIGHT TILT FRAME
ANGLE BLADE
C-FRAME
SEMI-U BLADE
SEMI-U BLADE FRAME
TOWING DEVICE
TRIPLE-SHANK RIPPLER ASSY
SINGLE-SHANK RIPPER ASSY
ELECTRICAL SYSTEM (1/2)
ELECTRICAL SYSTEM (2/2)
METER BOX
RELAY AND FUSE BOX
BATTERY AND RELAY
CAB ELECTRIC
ELECTRICAL SYSTEM (1/2)
ELECTRICAL SYSTEM (2/2)
METER BOX
RELAY AND FUSE BOX
BATTERY AND RELAY
OPERATOR'S SEAT
FRAME, ROPS
CAB
MARKS AND PLATES
LUBRICATING AND TRACK RECOIL SYSTEM
LUBRICATING AND TRACK RECOIL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
1
171-30-01000
steering case and main frame
2
07044-13620
Магнитная пробка
3
07002-13634
Кольцо
4
175-21-32170
Cover
5
07000-15195
O-ring
6
01010-52040
Болт
7
01602-22060
Рессорная шайба
8
07030-00252
Аэратор
9
170-21-11190
elbow
10
175-21-11181
cover
11
01580-11210
Гайка
12
01602-21236
Рессорная шайба
13
175-21-32135
gasket
14
07000-15470
O-ring
15
01010-52050
Болт
16
01643-32060
Шайба
17
04020-01842
Цилиндрический штифт
18
01120-52050
Stud
19
01582-02016
nut
21
07049-02025
Заглушка
22
07049-03949
plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/42.gif)
