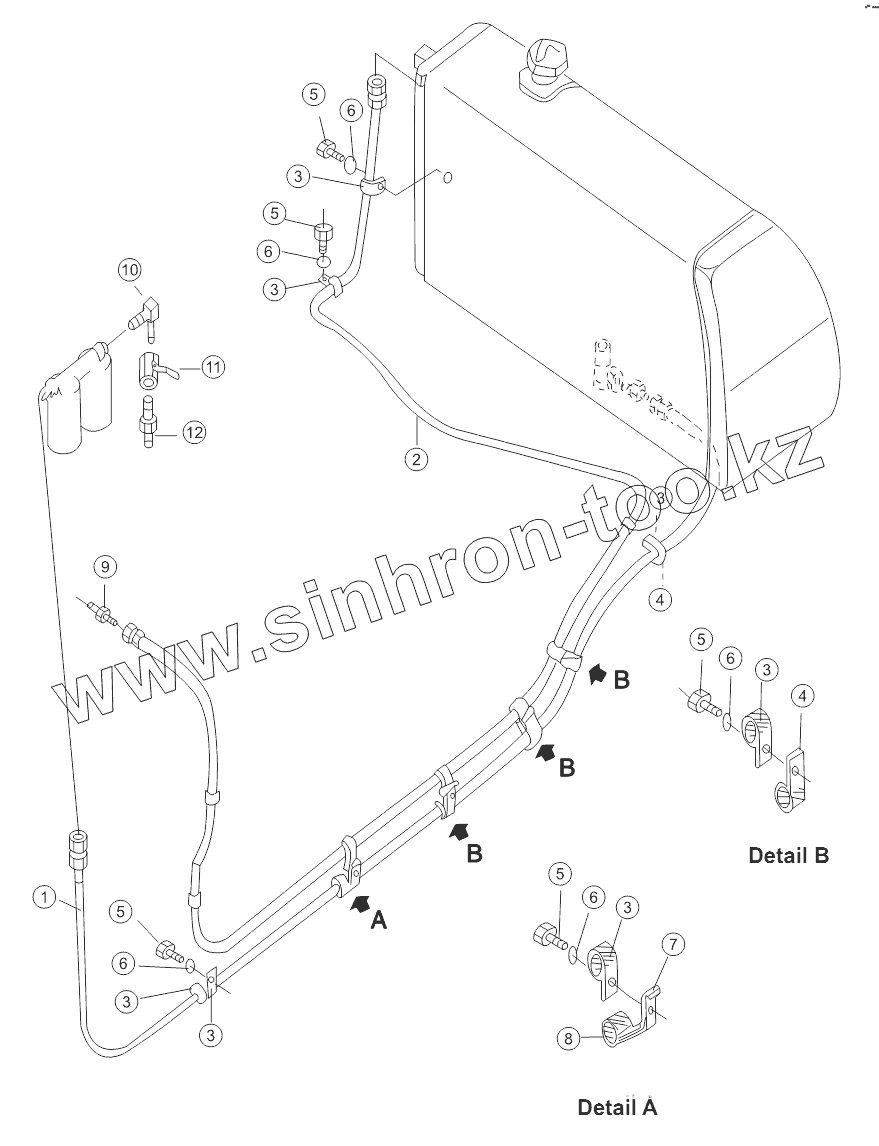

Позиция на иллюстрации
Заводской номер детали
Название детали
1
24Y-04-40000
hose inlet
2
24Y-04-30000
hose outlet
3
08036-12514
Wire clip
4
08035-03010
Провододержатель
5
01010-51016
Болт
6
01643-31032
Шайба
7
24Y-04-00002
clamp
8
24Y-04-00003
tube
9
24Y-04-00010
nipple
10
23Y-04-00007
Nipple
11
07700-40460
Клапан
12
23Y-04-00008
Nipple
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
