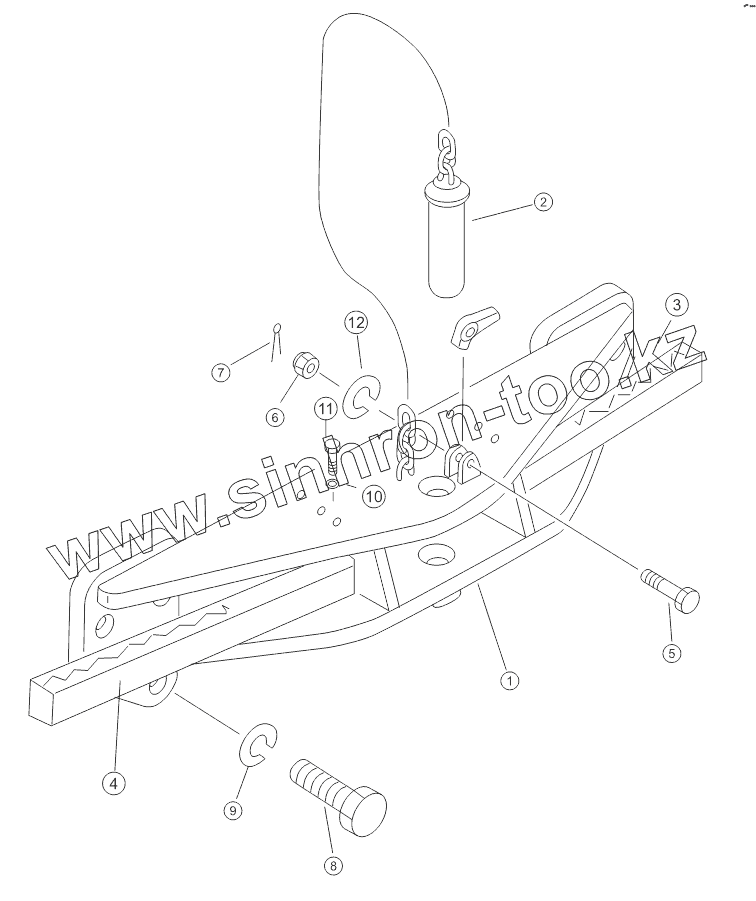

Позиция на иллюстрации
Заводской номер детали
Название детали
1
17S-69H-02100
Bracket
2
17S-69H-02400
Pin ass'y
3
17S-69H-02200
Scraper
4
17S-69H-02300
Scraper
5
01052-51265
Болт
6
01593-31210
Гайка
7
04050-13020
Разводной шплинт
8
01010-83380
Болт
9
01643-33380
Шайба
10
01643-32460
Уплотнительная шайба
11
01010-82470
Bolt
12
01643-31232
Шайба
