FINAL DRIVE CASE AND GEAR (1/2)

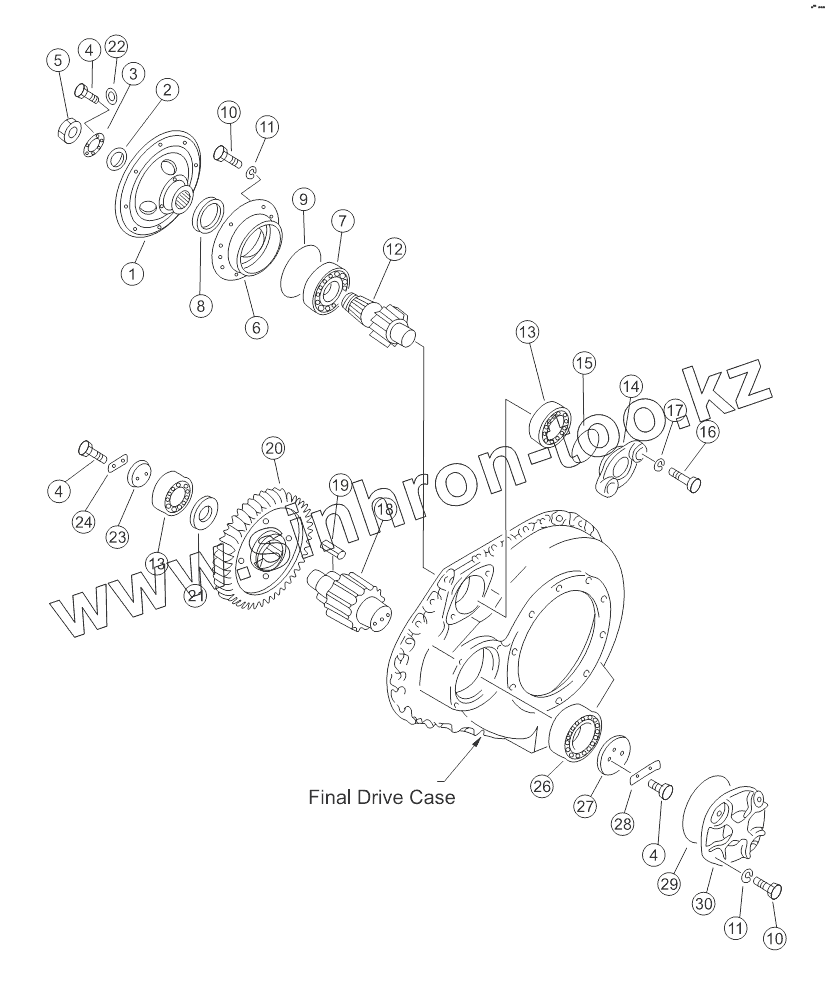

Каталог запасных частей к технике: Shantui SD22 (вариант). FINAL DRIVE CASE AND GEAR (1/2)
