Каталог запасных частей к технике: Shantui SD22 (вариант). BLADE LIFT CYLINDER (2/2)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SD16 (2010) SD16 (вариант) (2014) SD16E (2010) SD16L (2010) SD22 (вариант) (2013) SD32 (вариант) (2011) Shantui SD10YE (2015) Shantui SD16 (2008) Shantui SD22 (2008) Shantui SD23 (2003) Shantui SD23 (вариант) (2013) Shantui SD32 (2005) Shantui SD42-3 (2008) Shantui SG16-3 (2014) Shantui SG18-3 (2014) SL-30W (2010) SL-50W (2013) Каток SR12-5 (2013) Каток SR14M-2 (2012) Каток SR16 (2014) Каток SR18 (2011) Каток SR18M (2010) Каток SR20M (2014) Погрузчик SF15, SF18 (2010) Погрузчик SF30 (2013) Погрузчик SF45T (2013) Погрузчик SF50/SF60/SF70 (2013) Погрузчик вил. 2-2.5t (2010)

Схема > Не выбрано ENGINE AND ATTACHMENT MOUNTING (FOR ENGINE NT855) ENGINE ACCESSORIES AND INSTALLATION (FOR ENGINE WD12) EXHAUST PIPE AND MUFFLER (FOR ENGINE NT855) FLYWHEEL HOUSING ASS'Y (FOR ENGINE NT855) FLYWHEEL HOUSING ASS'Y (FOR ENGINE WD12) POWER TAKE OFF POWER TAKE OFF LUBRICATION TUBE BRACKET (FOR ENGINE NT855) AIR CLEANER AND CAP (FOR ENGINE NT855) TRANSFER CASE PART RADIATOR (FOR ENGINE NT855) RADIATOR (FOR ENGINE WD12) RADIATOR PIPING AND WIND BREAK (FOR ENGINE NT855) RADIATOR PIPING AND WIND BREAK (FOR ENGINE WD12) FAN FUEL TANK FUEL PIPING (FOR ENGINE NT855) FUEL PIPING (FOR ENGINE WD12) ACCELEROGRAPH CONTROLS DECELERATOR PEDAL FUEL CONTROL LINKAGE (FOR ENGINE NT855) FUEL CONTROL LINKAGE (FOR ENGINE WD12) UNIVERSAL JOINT TORQUE CONVERTER HOUSING AND VALVE TURBINE SHAFT AND GUIDE PULLEY TRANSMISSION CASE TRANSMISSION GEAR AND SHAFT (1/3) TRANSMISSION GEAR AND SHAFT (2/3) TRANSMISSION GEAR AND SHAFT (3/3) TRANSMISSION OUTPUT DEVICE TRANSMISSION CONTROL VALVE (1/3) TRANSMISSION CONTROL VALVE (2/3) TRANSMISSION CONTROL VALVE (3/3) TRANSMISSION CONTROL LEVER TRANSMISSION CONTROL LINKAGE (1/3) TRANSMISSION CONTROL LINKAGE (2/3) TRANSMISSION CONTROL LINKAGE (3/3) TRANSMISSION PUMP TORQUE CONVERTER PIPING (1/2) (FOR ENGINE NT855) TORQUE CONVERTER PIPING (1/2) (FOR ENGINE WD12) TORQUE CONVERTER PIPING (2/2) GEAR SHIFT PIPING FRAME (FOR ENGINE NT855) FRAME (FOR ENGINE WD12) BEVEL GEAR AND SHAFT STEERING CLUTCH BRAKE BAND AND LINKAGE BREAK CASE COVER BRAKE BOOSTER FINAL DRIVE CASE AND GEAR (1/2) FINAL DRIVE CASE AND GEAR (2/2) SPROCKET AND SHAFT STEERING CONTROL LEVER STEERING AND BRAKE LINKAGE (1/2) STEERING AND BRAKE LINKAGE (2/2) BRAKE PEDAL BRAKE PARKING LEVER STEERING PUMP STEERING VALVE MAIN RELIEF VALVE FINE OIL FILTER COARSE OIL FILTER STEERING PIPING (1/3) STEERING PIPING (2/3) STEERING PIPING (3/3) BRAKE PIPING PRESSURE MEASUREMENT PIPING SUSPENDED SYSTEM TRACK FRAME ASS'Y TENSION DEVICE TRACK FRAME COVER TRACK ROLLER GUARD TRACK ROLLER GUARD TRACK ROLLER GUARD FRONT IDLER TRACK ROLLER CARRIER ROLLER TRACK ASS'Y HOOD ASS'Y HOOD ASS'Y GUARD,SIDE (FOR ENGINE NT855) GUARD,SIDE (FOR ENGINE WD12) FENDER FLOOR FRAME COVER FLOOR FRAME BATTERY COVER BOTTOM GUARD PLATE ASS'Y (FOR ENGINE NT855) BOTTOM GUARD PLATE ASS'Y (FOR ENGINE WD12) OIL CYLINDER BRACKET OIL CYLINDER BRACKET OIL TANK (1/2) OIL TANK (2/2) HYDRAULIC FILTER BLADE LIFT AND TILT CONTROL VALVE (1/2) BLADE LIFT AND TILT CONTROL VALVE (2/2) RIPPER CONTROL VALVE (1/2) RIPPER CONTROL VALVE (2/2) BLADE LIFT CYLINDER (1/2) BLADE LIFT CYLINDER (2/2) TILT OIL CYLINDER PUMP PIPING HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (1/2) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (2/2) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (1/2) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (1/2) SERVO VALVE SERVO VALVE PIPING CONTROL LEVER BRACKET AND VALVE SEAT RIPPER PIPING RIPPER CYLINDER SERVO VALVE BLADE CONTROL LEVER TILT CONTROL LINKAGE BLADE CONTROL LINKAGE RIPPER CONTROL LEVER LIFT AND RIPPER CONTROL LINKAGE RIPPER CONTROL LEVER RIPPER LIFT CYLINDER (SD22,SD22E,SD22D) RIPPER LIFT CYLINDER (SD22,SD22E,SD22D) SINGLE GROUSER HYDRAULIC PIPING (1/5) SINGLE GROUSER HYDRAULIC PIPING (2/5) SINGLE GROUSER HYDRAULIC PIPING (3/5) SINGLE GROUSER HYDRAULIC PIPING (4/5) SINGLE GROUSER HYDRAULIC PIPING (5/5) STRAIGHT TILT BLADE STRAIGHT TILT BLADE BLADE U-BLADE U-BLADE ASS'Y PUNCHER PUNCHER ANGLE BLADE C-FRAME TRACTION FRAME SCRAPER RIPPER ASS'Y RIPPER ELECTRICAL SYSTEM (1/2) (FOR ENGINE NT855) (SD22, SD22D, SD22E, SD22S) ELECTRICAL SYSTEM (1/2) (FOR ENGINE NT855) (SD22R) ELECTRICAL SYSTEM (2/2) (FOR ENGINE NT855) (SD22, SD22D, SD22E, SD22S) ELECTRICAL SYSTEM (2/2) (FOR ENGINE NT855) (SD22R) ELECTRICAL SYSTEM (1/2) (FOR ENGINE WD12) ELECTRICAL SYSTEM (2/2) (FOR ENGINE WD12) INSTRUMENT BOX (FOR ENGINE NT855) INSTRUMENT BOX (FOR ENGINE WD12) RELAY AND FUSE BOX (FOR ENGINE NT855) RELAY AND FUSE BOX (FOR ENGINE WD12) BATTERY AND BATTERY RELAY CAB ELECTRICAL SYSTEM CAB ELECTRICAL SYSTEM SEAT AND INSTALLATION CANOPY, CANVAS CAB ASSEMBLY CAB ASSEMBLY CAB (FOR ROPS) FRAME, ROPS CAB (FOR ROPS) FRAME, ROPS MARKS AND PLATES PEDAL ETHER STARTING DEVICE LUBRICATING AND TRACK RECOIL SYSTEM

1

2

3

4

5

6

7

8

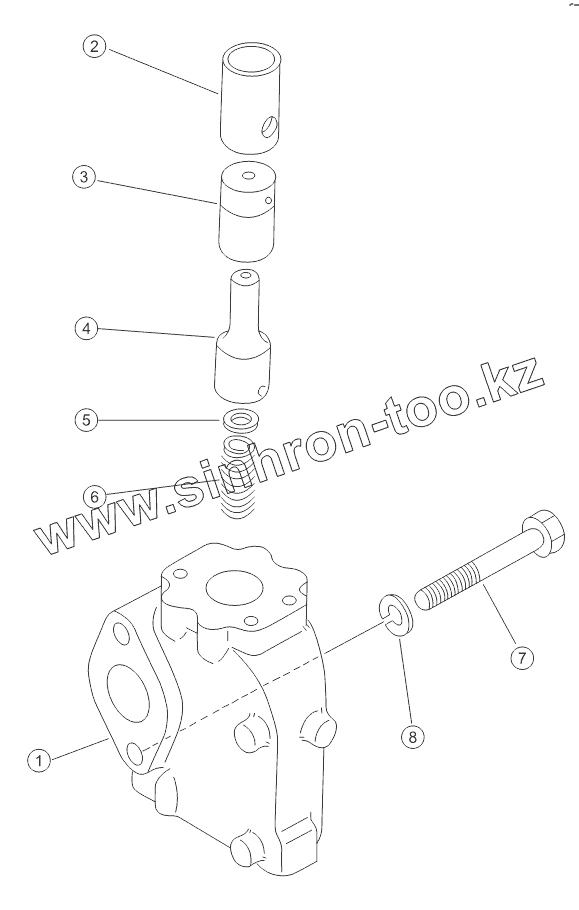

Позиция на иллюстрации	Заводской номер детали		Название детали
154-63-14001	154-63-14001		Гидроклапан
1	175-63-14111		Body quick drop valve
2	195-63-14152		Collar
3	195-63-14150		Valve
4	195-63-14140		Valve
5	01640-21223		Шайба 12
6	195-63-14180		Spring
7	01011-51615		Bolt
8	01643-31645		Шайба

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
