STRAIGHT TILT FRAME 16Y-80-002 V1.0

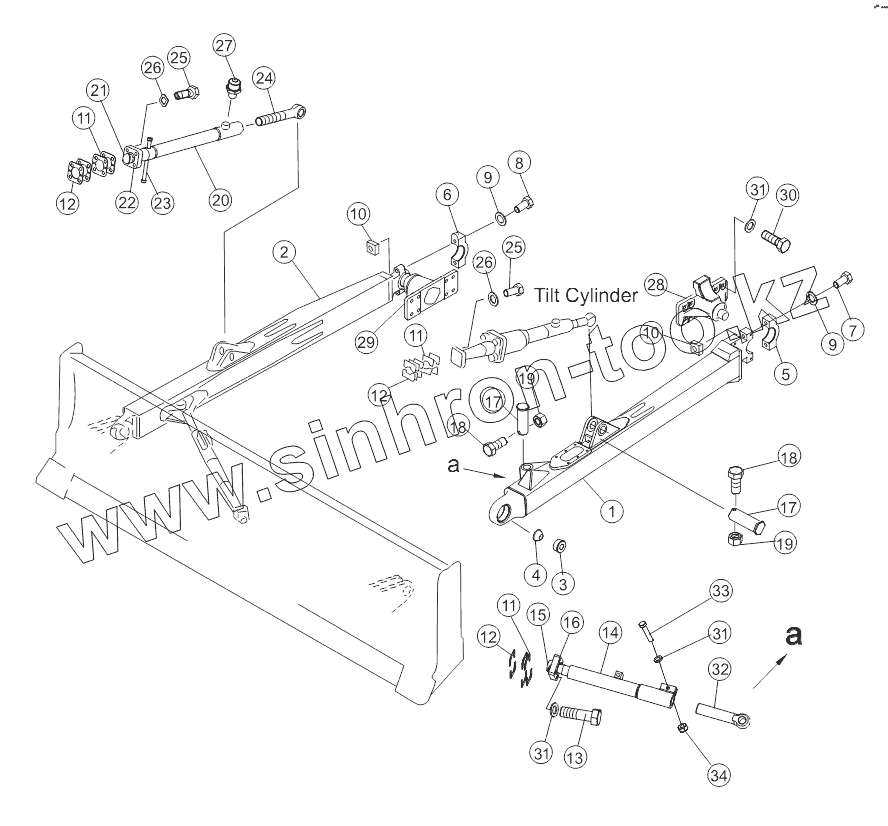

Каталог запасных частей к технике: Shantui SD16 (вариант). STRAIGHT TILT FRAME 16Y-80-002 V1.0
